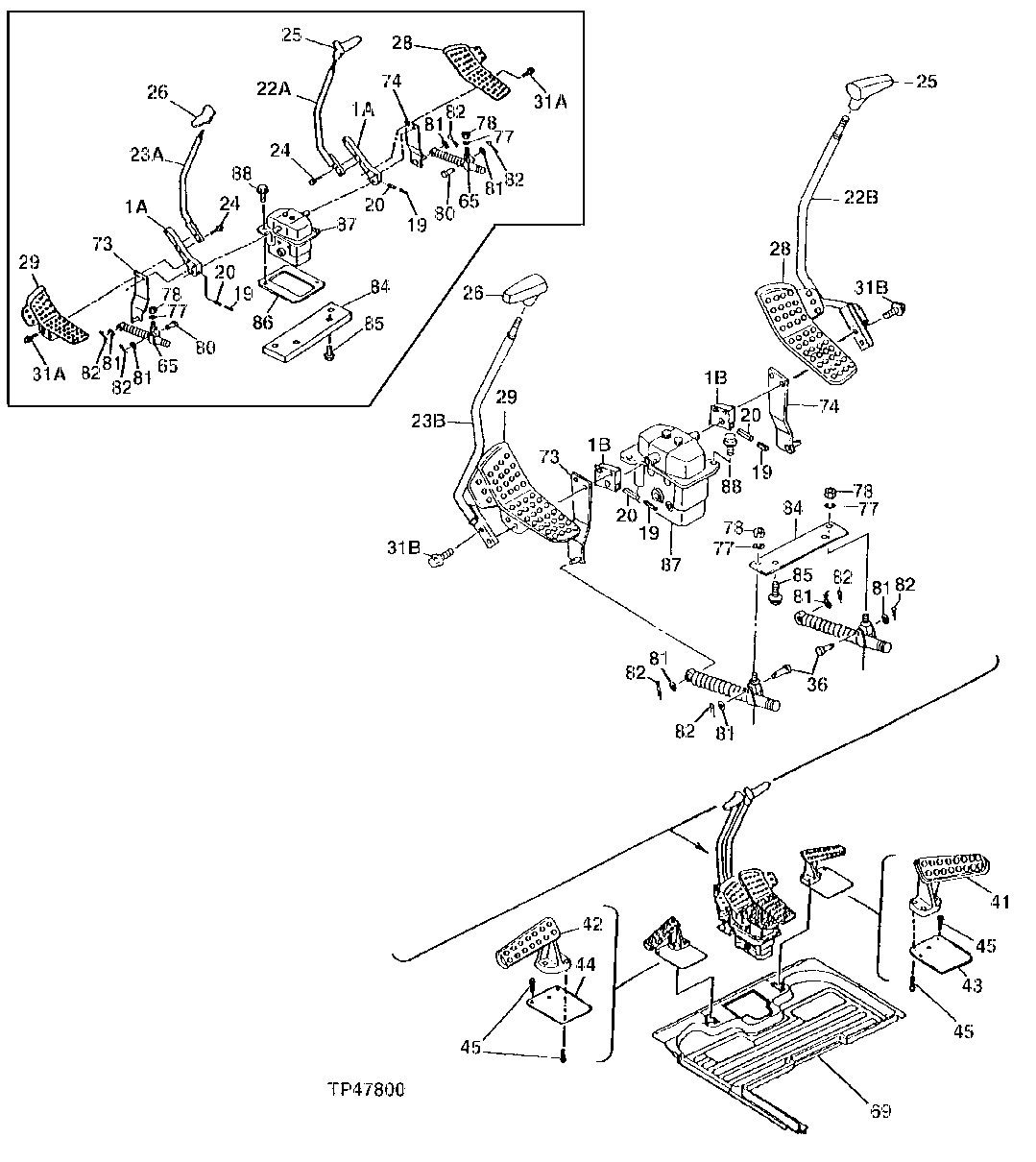

Запчасти John Deere 92ELC 230 - Control Lever 3315 Control Linkage

1A

3052542

Bracket

SUB FOR AT154126

2шт.

Bracket

AT202294 NLA, SUB 807 5450, 2043585, 4424185

2шт.

1B

T205603

Bracket

SUB FOR AT174469 OR 3072628

2шт.

19

34M7062

Spring Pin

5 X 32 mm

2шт.

20

34M7124

Spring Pin

8 X 30 mm SUB FOR 34M7065

2шт.

22A

8075450

Lever

SUB FOR AT159142, 8062667, IF AT159142 N OT AVAILABLE, SUB AT174467, AT174468, (2) AT174469 AND (4) 19M7935 Use If Availabl e

1шт.

2043585

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

22B

8075450

Lever

SUB FOR AT174467 AND 8062667

1шт.

2043585

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

23A

Lever

SUB AT174467, AT174468, (2) AT17 4469 OR (4) 19M7935, AT159143 NLA

1шт.

23B

8075449

Lever

SUB FOR AT174468 OR 8062623

1шт.

2043584

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

24

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

25

2030249

Grip

SUB FOR AT154077

1шт.

26

2030254

Grip

SUB FOR AT154078

1шт.

28

1024384

Pedal

SUB FOR AT154054, IF AT154054 NOT AVA ILABLE, SUB AT202292 Use If Available

1шт.

1024384

Pedal

SUB FOR AT202292

1шт.

29

1024224

Pedal

SUB FOR AT154053, IF AT154053 NOT AVA ILABLE, SUB AT202291 Use If Available

1шт.

1024224

Pedal

SUB FOR AT202291

1шт.

31A

19M8638

Cap Screw

M20 X 65

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

31B

19M7935

Cap Screw

M10 X 55

4шт.

41

1015478

Footrest

SUB FOR AT154056

1шт.

42

1015477

Footrest

SUB FOR AT154055

1шт.

43

3052543

Cover

SUB FOR AT154127

1шт.

44

4338635

Cover

SUB FOR AT202338

1шт.

45

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.

65

4204959

Torsional Damper

SUB FOR TH108384

2шт.

69

Mat

0001633 AND AT167568 NLA

1шт.

0001671

Mat

SUB FOR AT202277

1шт.

73

9742573

Bracket

SUB FOR AT201279

1шт.

Bracket

AT202379, 9742276 AND AT307239 NLA

1шт.

74

9742574

Bracket

SUB FOR AT201280

1шт.

AT307240

Bracket

SUB FOR AT202380 OR 9742277

1шт.

77

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

78

14M7273

Nut

M8

2шт.

80

4044928

Pin

SUB FOR TH108385

2шт.

81

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

82

H132922

Cotter Pin

4шт.

84

4359716

Bracket

SUB FOR AT201281 AND AT215938

1шт.

85

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

86

4191969

Plate

SUB FOR TH108382

1шт.

87

9073404

Hyd Actuated Control Valve

SUB FOR AT128307

1шт.

Valve

SUB AT214393 AND AT154526 NLA

1шт.

9149235

Hyd Actuated Control Valve

SUB FOR AT214393

1шт.

88

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.
