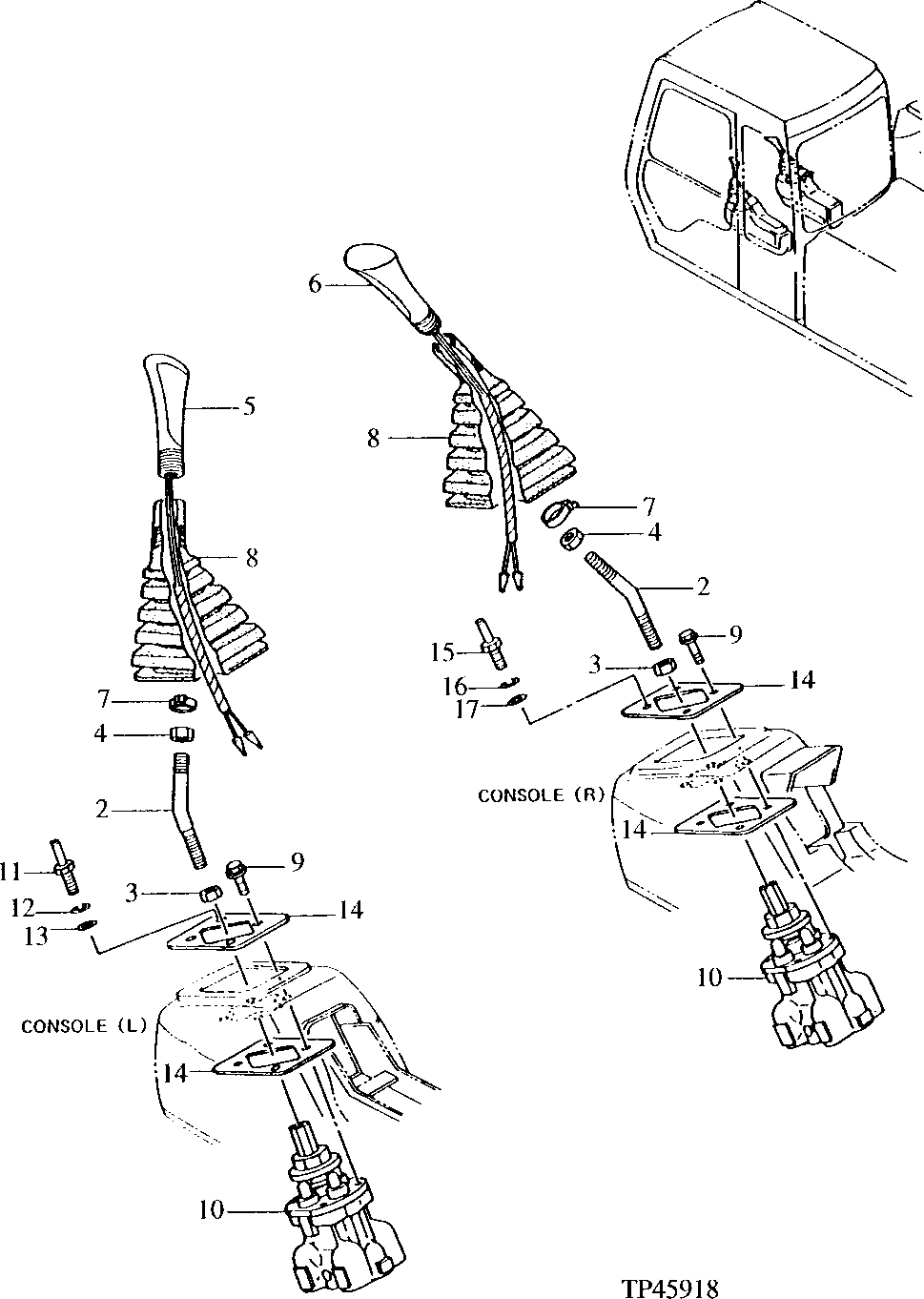

Запчасти John Deere 92ELC 229 - Control Lever 3315 Control Linkage

2

4284522

Lever

(SUB FOR AT154379)

2шт.

4334707

Lever

(SUB FOR AT202326) Use If Available

2шт.

4334707

Lever

(SUB FOR AT202326) (SUB FOR AT177386)

2шт.

3

14M7141

Nut

M14

2шт.

4

14M7357

Nut

M12

2шт.

5

Grip

(W/ HORN SWITCH) ( AT163880 NLA) (SUB AT 167505, ALONG WITH 4342802, AND 34M7086)

1шт.

2033123

Grip

(SUB FOR AT167505) (W/ HORN SWITCH)

1шт.

6

2031487

Grip

(SUB FOR AT154084) (W/ POWER BOOST SWITCH)

1шт.

2032041

Grip

(SUB FOR AT167507) (W/ POWER BOOST SWITCH)

1шт.

7

H77698

Tie Band

Use As Required

4шт.

8

2038578

Boot

(SUB FOR AT154080, 2030275)

2шт.

9

19M7407

Cap Screw

M8 X 25

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

10

9134103

Valve

NLA (ORDER 9134103EX)

2шт.

9134103EX

Hyd/Pilot Cntl Valve Reman

Pilot (REMAN FOR 9134103) ( SUB FOR AT165233, AT189842)

2шт.

9134239

Valve

NLA (ORDER 9134239EX)

1шт.

9134239EX

Hyd/Pilot Cntl Valve Reman

Pilot (REMAN FOR 9134239) ( SUB FOR AT202169, AT189843)

1шт.

11

19M7881

Screw

M8 X 20

1шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 4339 621) (ALONG W/ 4342802)

1шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 433 9621, ALONG W/ 4342802)

1шт.

4342802

Screw

(SUB FOR 4339621, ALONG W/ 34M7086)

1шт.

12

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

13

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

14

4317301

Spacer

(SUB FOR AT165109)

4шт.

15

19M7407

Cap Screw

M8 X 25

1шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 4339 621) (ALONG W/ 4342802)

1шт.

16

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
