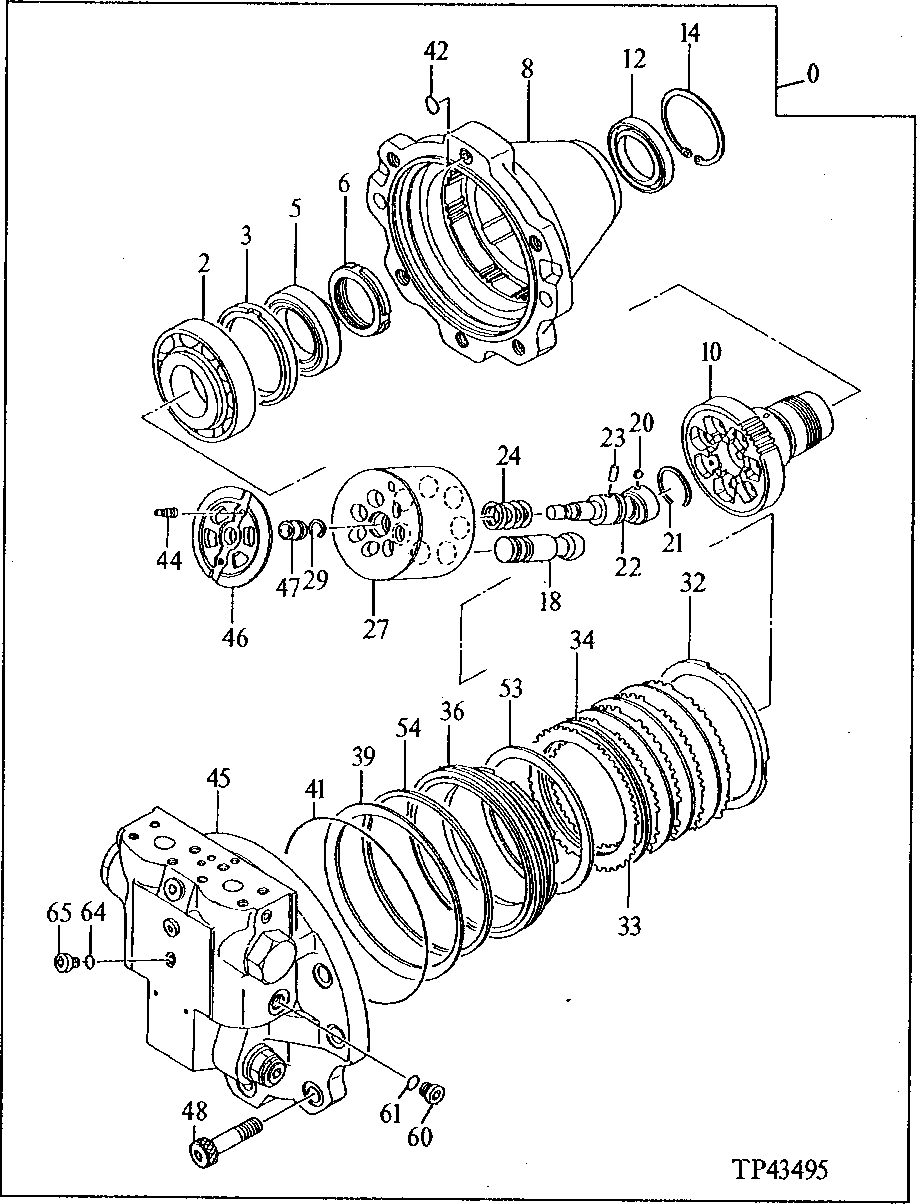

Запчасти John Deere 92ELC 14 - Travel Motor ( - 010999) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

AT217359

Hydraulic Motor

NLA, (ORDER 9127391EX) (SUB FOR AT201171)

1шт.

9127391

Hydraulic Motor

NLA, (ORDER 9127391EX)

1шт.

9127391EX

Hydraulic Motor Reman

(REMAN FOR AT217359 OR 9127391)

1шт.

2

JD10304

Tapered Roller Bearing

1шт.

3

4227550

Spacer

(SUB FOR AT130838)

1шт.

5

JD10063

Tapered Roller Bearing

1шт.

6

4191665

Nut

(SUB FOR TH111236)

1шт.

8

1012659

Housing

(SUB FOR AT130839)

1шт.

10

2023203

Drive Shaft

(SUB FOR TH111117)

1шт.

12

4639126

Seal

(SUB FOR TH112094) Oil

1шт.

14

4038529

Snap Ring

(SUB FOR AT130840)

1шт.

18

8051275

Piston

(SUB FOR AT130837) (SUB FOR AT203603)

7шт.

20

L38718

Ball

6 mm (0.236")

1шт.

21

4191667

Snap Ring

(SUB FOR TH111238)

1шт.

22

Shaft

( 8035539 NLA) (FURNISH 3081023 AND 2038877 ) (SUB FOR TH111473, AT219647 AND AT219590)

1шт.

23

4198956

Pin Fastener

(SUB FOR T107766)

1шт.

24

4194362

Compression Spring

(SUB FOR TH111266)

1шт.

27

2022744

Rotor

(SUB FOR TH111111)

1шт.

29

4193062

Snap Ring

(SUB FOR TH111251)

1шт.

32

4193996

Spacer

(SUB FOR TH111260)

1шт.

33

3036456

Plate

(SUB FOR TH111153)

5шт.

34

3036457

Plate

(SUB FOR TH111154)

4шт.

36

3036455

Piston

(SUB FOR TH111152)

1шт.

39

3036495

Disk Spring

(SUB FOR TH111156)

1шт.

41

4193063

O-Ring

229.400 X 3.100 mm (9-1/32" X 0.122") (SUB FOR TH111252)

1шт.

42

T111819

O-Ring

14.800 X 2.400 mm (0.583" X 3/32")

1шт.

44

4177927

Pin

(SUB FOR T107780)

2шт.

45

9127390

Flow Control Hyd. Valve

(SUB FOR AT201170) Brake

1шт.

46

3036278

Plate

(SUB FOR TH111150)

1шт.

47

4193132

Bushing

(SUB FOR TH111253)

1шт.

48

19M8445

Screw

M16 X 45

5шт.

53

4252401

O-Ring

(SUB FOR TH111261)

1шт.

54

4252400

Back-Up Ring

(SUB FOR TH111262)

1шт.

60

0311336

Pipe Plug

(SUB FOR TH109082)

1шт.

61

CH11570

O-Ring

1шт.

64

M800650

Packing

1шт.

65

4208977

Drain Plug

(SUB FOR TH111351)

1шт.
