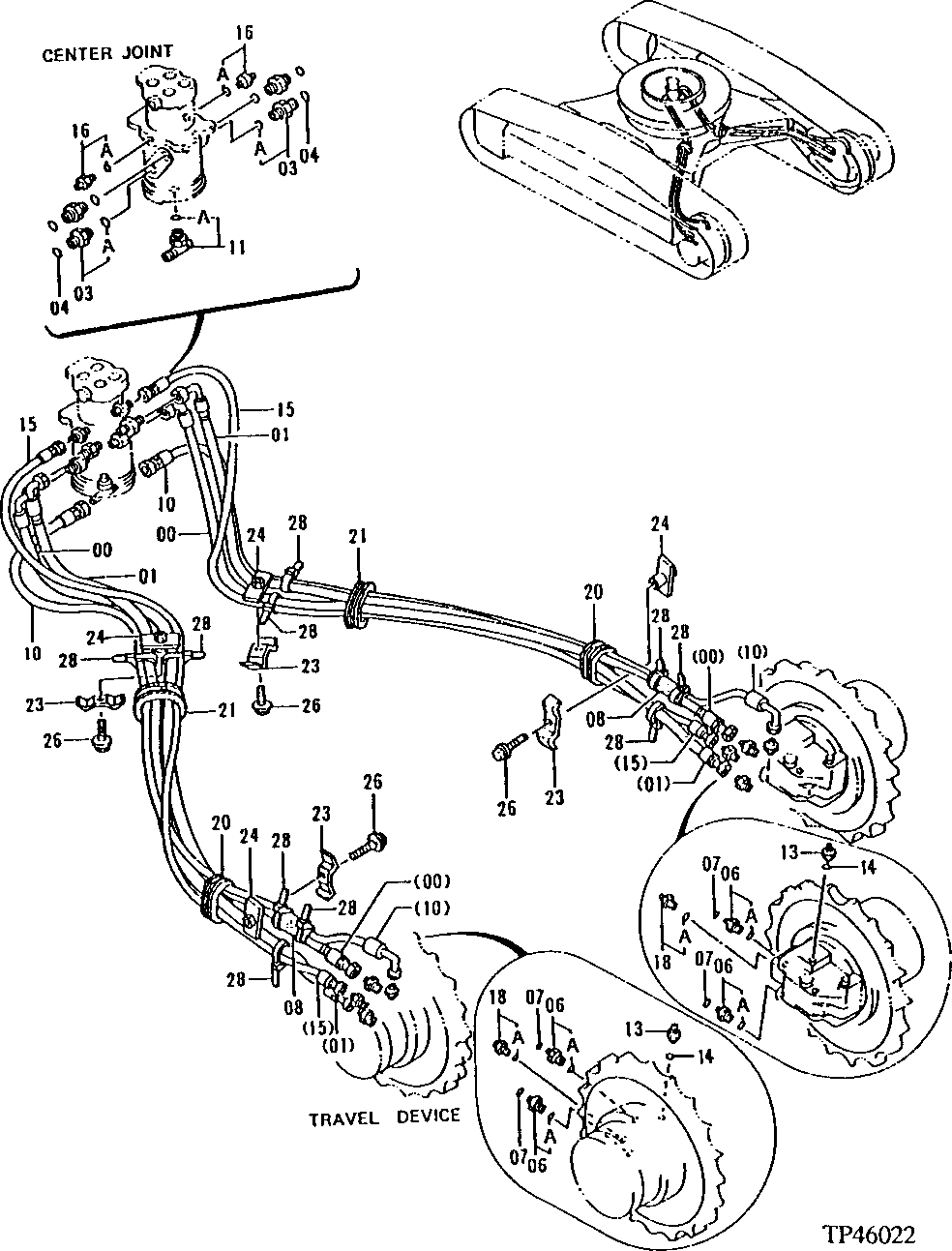

Запчасти John Deere 92ELC 13 - Travel Hoses (011000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

AT217987

Hydraulic Hose

(SUB FOR AT204775)

2шт.

1

AT204776

Hydraulic Hose

2шт.

3

4189601

Adapter Fitting

(SUB FOR AT107394)

4шт.

3A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

4

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

6

4272493

Adapter Fitting

(SUB FOR AT204774)

4шт.

6A

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") (SUB FOR TH104634)

1шт.

7

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

8

4219918

Isolator

(SUB FOR TH111416)

2шт.

10

4317865

Hydraulic Hose

(SUB FOR AT201249)

2шт.

11

4221224

Tee Fitting

(SUB FOR AT318018 AND AT154156)

1шт.

11A

4506418

O-Ring

(SUB FOR U46489)

1шт.

13

X8-10F5OX

Adapter Fitting

(SUB FOR TH110204 OR TH 101006, ALONG W/ U46489)

2шт.

14

4506418

O-Ring

(SUB FOR U46489)

2шт.

15

AT155300

Hose

11.1252" X 2500 mm (98-1/2") X 11.1252"

2шт.

16

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

16A

M800650

Packing

1шт.

18

4200465

Adapter Fitting

(SUB FOR TH108328)

2шт.

18A

M800650

Packing

1шт.

20

Grommet

( AT155304 NLA)

2шт.

21

4272436

Bushing

(SUB FOR AT201009)

2шт.

23

4202103

Clamp

(SUB FOR TH108302)

4шт.

24

9736782

Clamp

(SUB FOR AT201191)

4шт.

26

19M8348

Cap Screw

M12 X 65

4шт.

12H301

Lock Washer

1/2"

4шт.

28

H77698

Tie Band

10шт.
