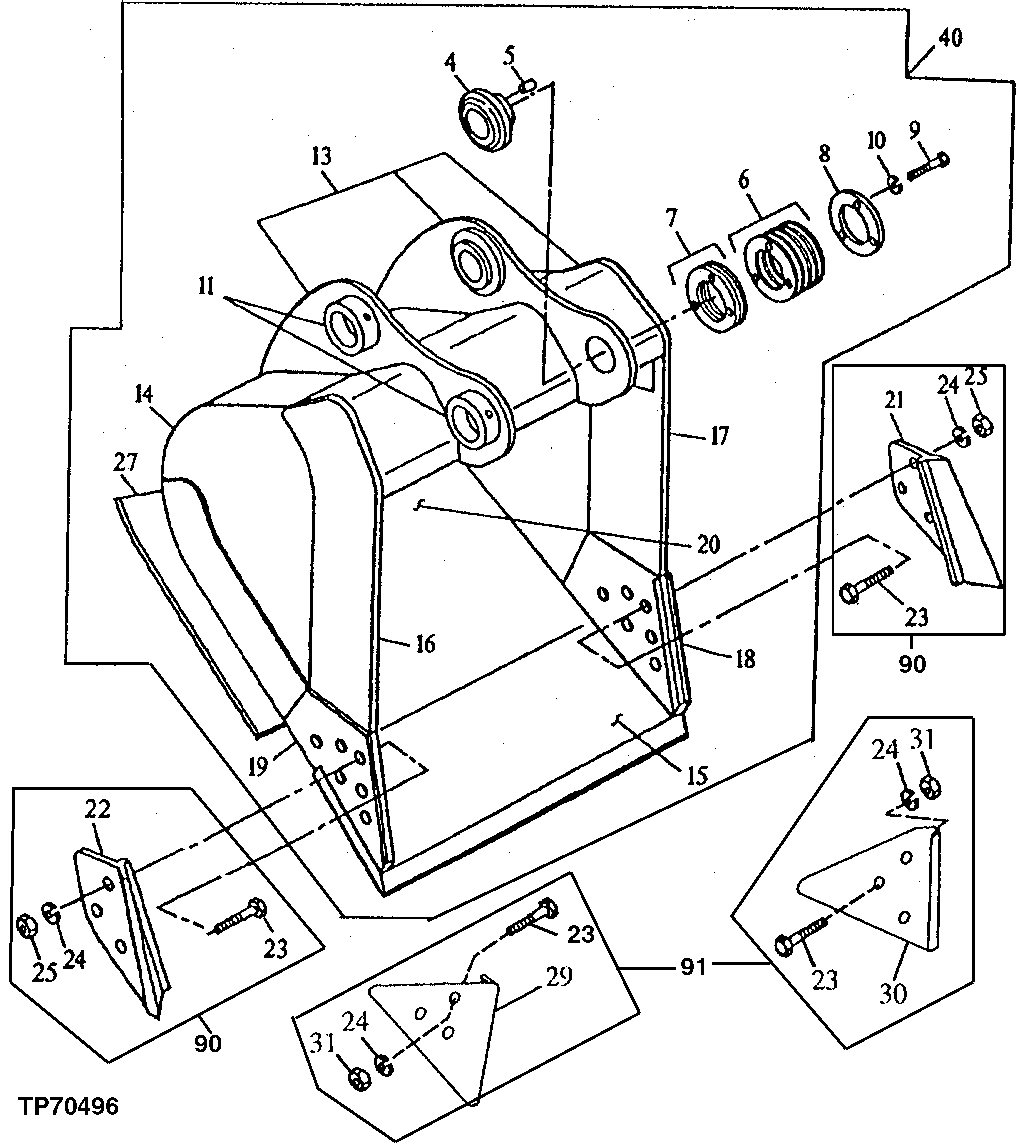

Запчасти John Deere 92ELC 213 - BUCKET 3302 Bucket With Teeth

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

1mm, (SUB FOR TH103235)

6шт.

7

4143525

Shim

5mm, (SUB FOR TH103236)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C606071

Pivot

(F) Bucket Ear Blank Assembly

1шт.

14

305443

Plate

(F) (RH / LH)

2шт.

15

AT131096

Dura-Max Cutting Edge

(CTL)

1шт.

16

301025

Vertical Cutter

(F) (UPPER RH)

1шт.

17

301026

Vertical Cutter

(F) (UPPER LH)

1шт.

18

305445

Vertical Cutter

(F) (LH)

1шт.

19

305444

Vertical Cutter

(F) (RH)

1шт.

20

605585

Moldboard

(F) 42in

1шт.

605586

Moldboard

(F) 48in

1шт.

21

Cutting Edge

(K) 42 or 48in., (SUB AT131086)

1шт.

Cutting Edge

30 or 36in., (SUB AT131085) (K2)

1шт.

22

Cutting Edge

(K) 42 or 48in., (SUB AT131086)

1шт.

Cutting Edge

30 or 36in., (SUB AT131085) (K2)

1шт.

23

09H1772

Bolt

(K) 7/8" X 3-1/2" , (K3)

6шт.

09H1771

Bolt

7/8" X 3" , (K2) (K4)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2) (K3) (K4)

6шт.

25

14H1077

Nut

(K) 7/8" (K2)

6шт.

27

605591

Bar

(F) 42in., Wear

1шт.

605592

Bar

(F) 48in., Wear

1шт.

29

Shroud

(K3) (K4) Wear

1шт.

30

Shroud

Wear (K3) (K4)

1шт.

31

14H1044

Nut

7/8" (K3) (K4)

6шт.

40

Excavator Bucket

(P) 30in.- 1.26y³, ( AT1673 01, AT131061 OR AT131181 NLA)

1шт.

Excavator Bucket

(P) 36in.- 1.56y³, ( AT1673 02, AT131062 OR AT131182 NLA)

1шт.

Excavator Bucket

(P) 42in.- 1.85y³, ( AT1636 69, AT131061 OR AT131181 NLA)

1шт.

Excavator Bucket

(P) 48in.- 2.15y³, ( AT1636 70, AT131062 OR AT131182 NLA)

1шт.

90

Kit

(INCLUDES ALL (K) PARTS) Sid e Cutter Kit ( AT131086 NLA)

1шт.

Kit

(INCLUDES ALL (K2) PARTS) Si de Cutter Kit ( AT131085 NLA)

1шт.

91

Kit

(INCLUDES ALL (K3) PARTS) Edge Protector Kit ( AT167878 NLA)

1шт.

Kit

(INCLUDES ALL (K4) PARTS) Edge Protector Kit ( AT167876 NLA)

1шт.
