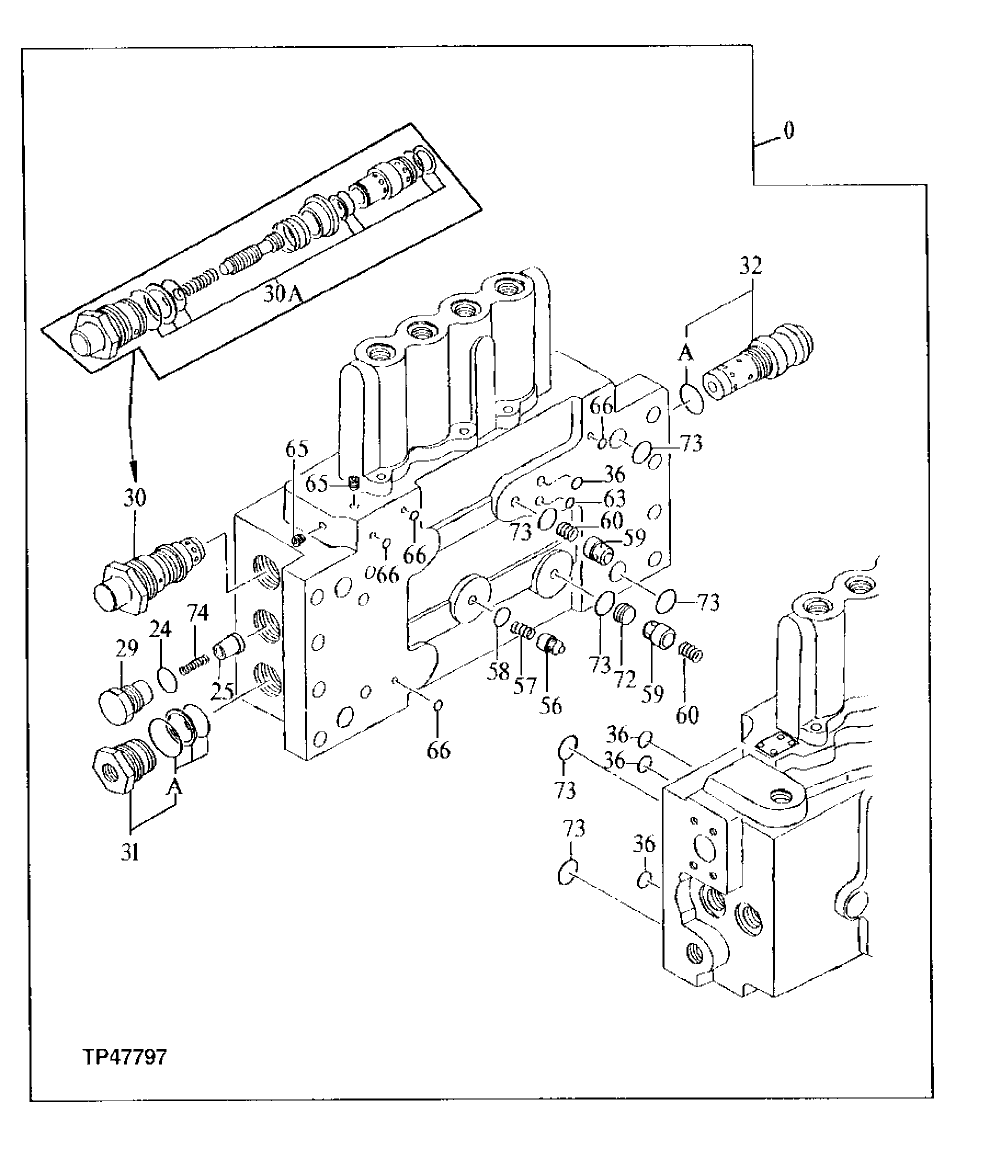

Запчасти John Deere 92ELC 203 - Control Valve Components 2160 Vehicle Hydraulics

0

4314749

Hyd Actuated Control Valve

NLA, SUB FOR AT201051, AT186751 AND 43147 49EX Contains All Items Listed On This Pag e Additional Components On Previous Pages

1шт.

24

U17409

O-Ring

26.594 X 2.946 mm (1-3/64" X 0.116")

1шт.

25

0496312

Poppet

SUB FOR AT200929 AND AT168183

1шт.

29

0496323

Fitting Plug

SUB FOR AT200937 AND AT204926

1шт.

30

4282693

Flow Control Hyd. Valve

SUB FOR AT131218 Flow Combiner

1шт.

0496502

Flow Control Hyd. Valve

1шт.

30A

Seal

SUB FOR AT131219, 4282906 NLA

1шт.

4S00739

Seal

1шт.

31

0496501

Plug

SUB FOR AT200949

1шт.

31A

4324536

Seal Kit

SUB FOR AT201079

1шт.

32

0309709

Pressure Relief Valve

SUB FOR TH109974 Flow Sense

1шт.

32A

U17409

O-Ring

26.594 X 2.946 mm (1-3/64" X 0.116")

1шт.

36

4506418

O-Ring

SUB FOR TH111686

4шт.

56

0309604

Poppet

SUB FOR TH111966

1шт.

57

0309605

Spring

SUB FOR TH111967

1шт.

58

AT264333

O-Ring

SUB FOR 4226443, TH111687, 4028265

1шт.

59

0309608

Poppet

SUB FOR TH111968

2шт.

0309608

Poppet

SUB FOR TH111968

1шт.

0633601

Poppet

SUB FOR AT182705

1шт.

60

0309606

Spring

SUB FOR TH111969

2шт.

63

T111819

O-Ring

SUB FOR TH111688, 4506415

1шт.

65

94-2010

Fitting Plug

SUB FOR TH100689

2шт.

66

CH11568

Packing

SUB FOR TH111689, TH104588 AND 4506407

4шт.

72

0309607

Seat

SUB FOR TH111970

1шт.

73

CH17886

Packing

SUB FOR TH111690 AND 4509182

6шт.

74

0309728

Spring

SUB FOR TH109997

1шт.
