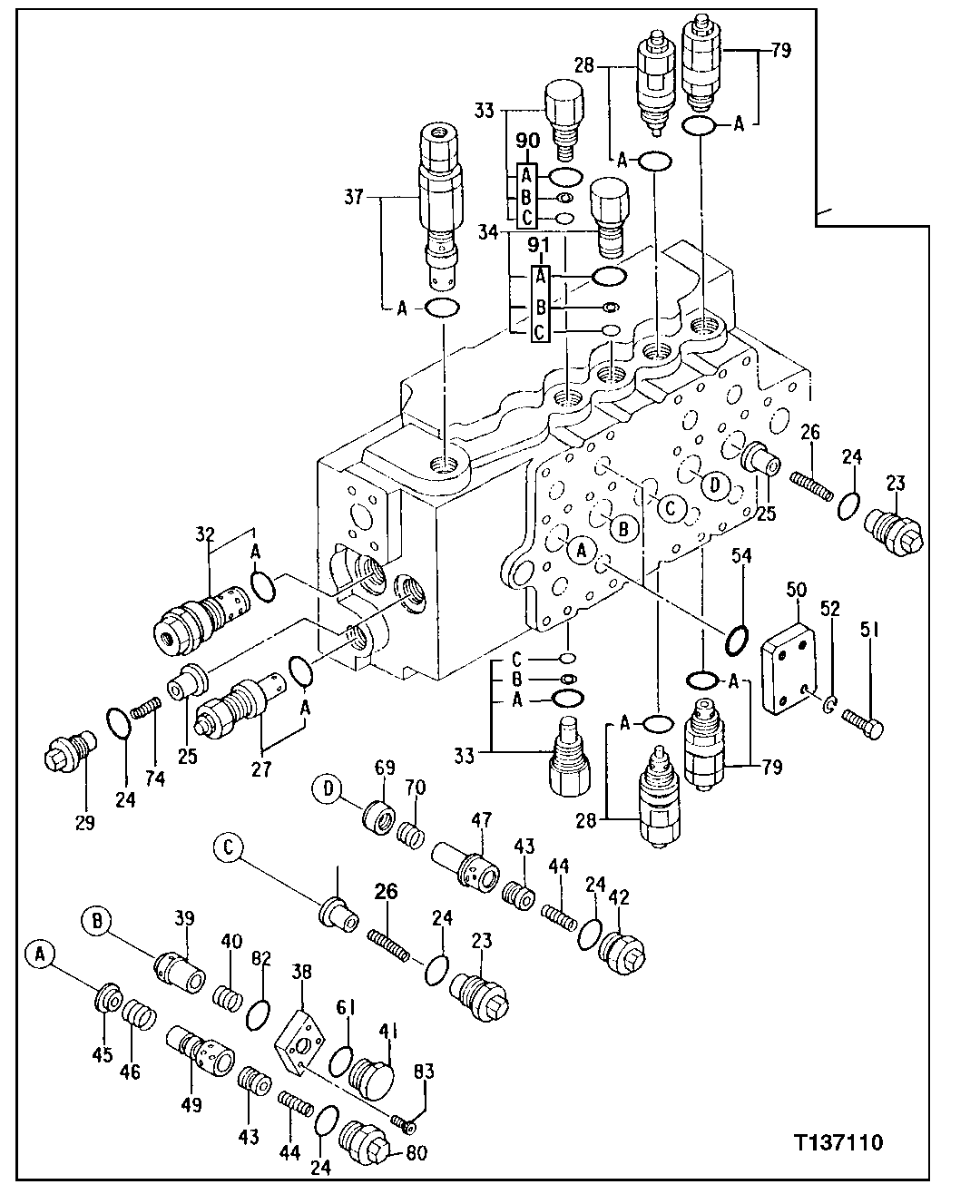

Запчасти John Deere 92ELC 201 - Control Valve Components (007425 - ) 2160 Vehicle Hydraulics

0

4314749

Hyd Actuated Control Valve

SUB FOR AT201051, AT186751 OR 4314749EX Co ntains All Items On This Page - Additional Components On Previous and Following Pages

1шт.

23

0496323

Fitting Plug

SUB FOR AT204926

2шт.

24

U17409

O-Ring

5шт.

25

0496312

Poppet

SUB FOR AT200929 OR AT168183

2шт.

0496312

Poppet

SUB FOR AT168183

3шт.

0496312

Poppet

SUB FOR AT168183

2шт.

0496312

Poppet

SUB FOR AT168183

3шт.

26

0459532

Spring

SUB FOR AT200930

1шт.

0459532

Spring

SUB FOR AT200930

2шт.

0459532

Spring

SUB FOR AT200930

1шт.

0459532

Spring

SUB FOR AT200930

2шт.

27

4228355

Pressure Relief Valve

SUB FOR TH111079 Propel System

1шт.

27A

U12547

O-Ring

1шт.

28

4324534

Pressure Relief Valve

SUB FOR AT201077 Anti-Cavitation, Arm

2шт.

28A

U12547

O-Ring

1шт.

29

0496323

Fitting Plug

SUB FOR AT204926

1шт.

32

0309709

Pressure Relief Valve

SUB FOR TH109974 Flow Sensing

1шт.

32A

U17409

O-Ring

1шт.

33

0667927

Fitting Plug

SUB FOR TH109975, AT1774 41 OR AT213687 Auxiliary

2шт.

33A

O-Ring

1шт.

33B

O-Ring

1шт.

33C

O-Ring

1шт.

34

4378250

Fitting Plug

SUB FOR TH109976 OR AT177442 Boom II

1шт.

34A

O-Ring

1шт.

34B

O-Ring

1шт.

34C

O-Ring

1шт.

37

4324535

Pressure Relief Valve

SUB FOR AT201078 Dig Functions

1шт.

37A

U12547

O-Ring

1шт.

38

0496320

Flange

SUB FOR AT204923

1шт.

39

0496321

Poppet

SUB FOR AT204924

1шт.

40

0496322

Spring

SUB FOR AT204925

1шт.

41

0412310

Fitting Plug

SUB FOR AT154037

1шт.

42

0496324

Fitting Plug

SUB FOR AT204927

1шт.

43

0125107

Check Valve

SUB FOR AT200942 OR TH109983

2шт.

44

0125108

Spring

SUB FOR TH109984

2шт.

45

0496316

Poppet

SUB FOR AT166924

1шт.

46

4237927

Spring

SUB FOR AT166925

1шт.

47

0496309

Sleeve

SUB FOR AT200944

1шт.

49

0496317

Sleeve

SUB FOR AT200945 OR AT166922

1шт.

50

0309733

Strap

SUB FOR TH111921

2шт.

51

J901032

Screw

SUB FOR TH102040

8шт.

52

12M7066

Lock Washer

10 mm

8шт.

54

A4730R

O-Ring

2шт.

61

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

69

0496311

Poppet

SUB FOR AT200946

1шт.

70

4237927

Spring

SUB FOR AT166925

1шт.

74

0309728

Spring

SUB FOR TH109997

1шт.

79

4228354

Pressure Relief Valve

SUB FOR TH111707 Swing

2шт.

79A

U12547

O-Ring

1шт.

80

0496324

Fitting Plug

SUB FOR AT204927

1шт.

82

A810030

O-Ring

SUB FOR U46167

1шт.

83

19M8904

Screw

M10 X 45 SUB FOR M341045

4шт.

90

4257233

Seal Kit

SUB FOR TH112253 OR 4S00740

1шт.

91

4257234

Seal Kit

SUB FOR TH112254 OR 4S00741

1шт.
