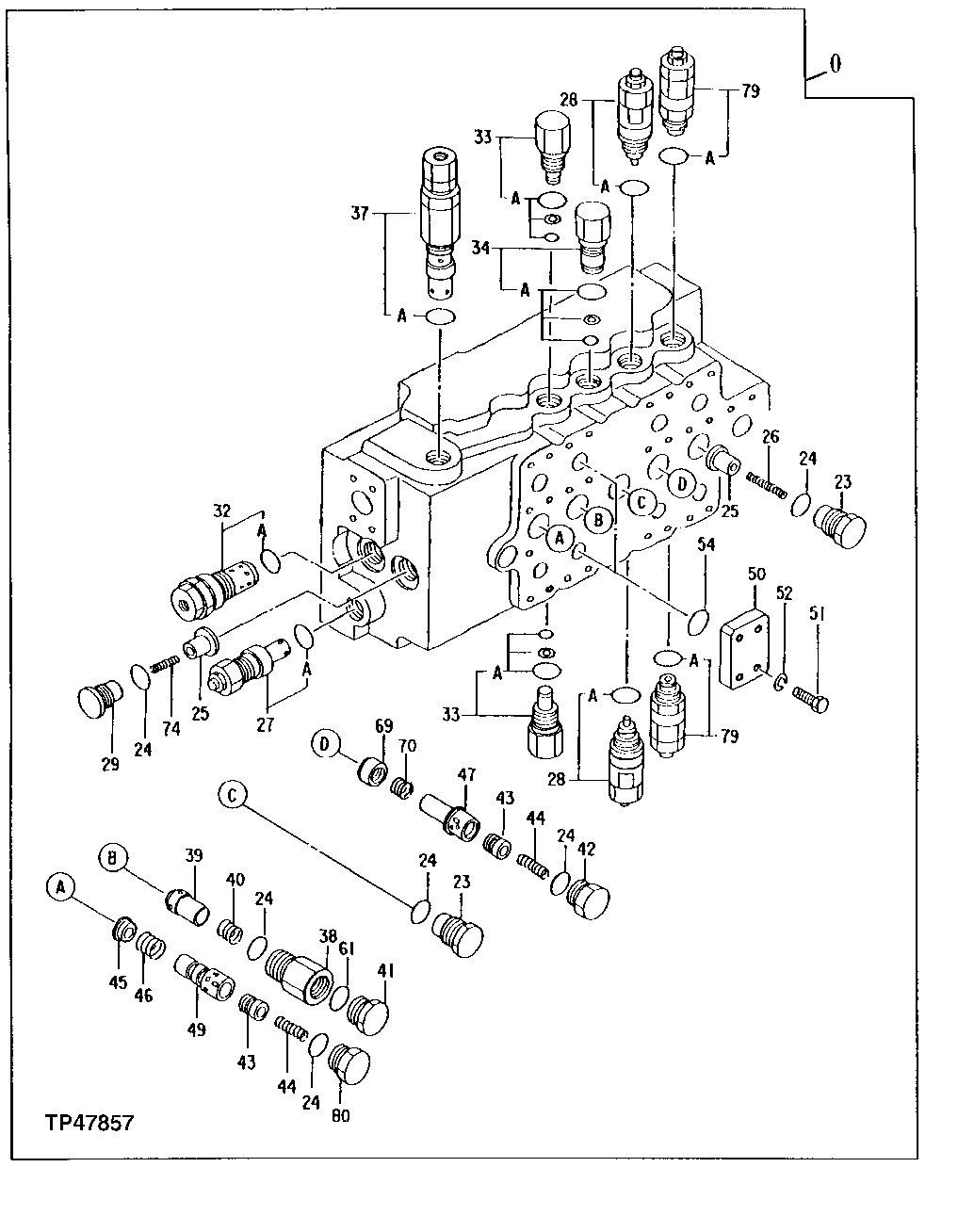

Запчасти John Deere 92ELC 200 - Control Valve Components ( - 007424) 2160 Vehicle Hydraulics

0

4314749

Hyd Actuated Control Valve

NLA, SUB FOR AT201051, AT186751 AND 4314749 EX Contains All Items On This Page Additiona l Components On Previous and Following Pages

1шт.

23

Plug

SUB AT204926, AT200936 NLA

2шт.

24

U17409

O-Ring

26.594 X 2.946 mm (1-3/64" X 0.116")

6шт.

25

0496312

Poppet

SUB FOR AT200929 AND AT168183

2шт.

26

0459532

Spring

SUB FOR AT200930

1шт.

27

4228355

Pressure Relief Valve

SUB FOR TH111079 Propel System

1шт.

27A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

28

4324534

Pressure Relief Valve

SUB FOR AT201077 Anti-Cavitation Arm

2шт.

28A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

29

Plug

SUB AT204926, AT200937 NLA

1шт.

32

0309709

Pressure Relief Valve

SUB FOR TH109974 Flow Sensing

1шт.

32A

U17409

O-Ring

26.594 X 2.946 mm (1-3/64" X 0.116")

1шт.

33

0667927

Fitting Plug

SUB FOR TH109975, AT1774 41 OR AT213687 Auxiliary

2шт.

33A

4257233

Seal Kit

SUB FOR TH112253 OR 4S00740

1шт.

0413616

O-Ring

INCLUDED IN SEAL KIT 4 257233, SUB FOR 4154207

1шт.

34

4378250

Fitting Plug

SUB FOR TH109976 OR AT177442 Boom II

1шт.

34A

4257234

Seal Kit

SUB FOR TH112254 OR 4S00741

1шт.

37

4324535

Pressure Relief Valve

SUB FOR AT201078 Dig Functions

1шт.

37A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

38

0496303

Plug

SUB FOR AT200938

1шт.

39

0496304

Poppet

SUB FOR AT200939

1шт.

40

0496305

Spring

SUB FOR AT200940

1шт.

41

0412310

Fitting Plug

SUB FOR AT154037

1шт.

42

0496318

Plug

SUB FOR AT200941 OR AT166926

1шт.

43

0125107

Check Valve

SUB FOR AT200942 OR TH109983

2шт.

44

0125108

Spring

SUB FOR TH109984

2шт.

45

Poppet

AT200943 NLA, SUB 0496316, ALONG WITH 0496317, 0496318 AND 4237927

1шт.

0496316

Poppet

SUB FOR AT166924

1шт.

46

0309719

Spring

SUB FOR TH109986

1шт.

4237927

Spring

SUB FOR AT166925

1шт.

47

0496309

Sleeve

SUB FOR AT200944

1шт.

49

0309721

Sleeve

SUB FOR AT200945 OR TH109989

1шт.

0496317

Sleeve

SUB FOR AT166922

1шт.

50

0309733

Strap

SUB FOR TH111921

2шт.

51

J901032

Screw

SUB FOR TH102040

8шт.

52

12M7066

Lock Washer

10 mm

8шт.

54

A4730R

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

2шт.

61

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

1шт.

69

0496311

Poppet

SUB FOR AT200946

1шт.

70

4237927

Spring

SUB FOR AT166925

1шт.

74

0309728

Spring

SUB FOR TH109997

1шт.

79

4228354

Pressure Relief Valve

SUB FOR TH111707 Swing

2шт.

79A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

80

0309717

Fitting Plug

SUB FOR TH109982

1шт.

0496318

Plug

SUB FOR AT166926

1шт.
