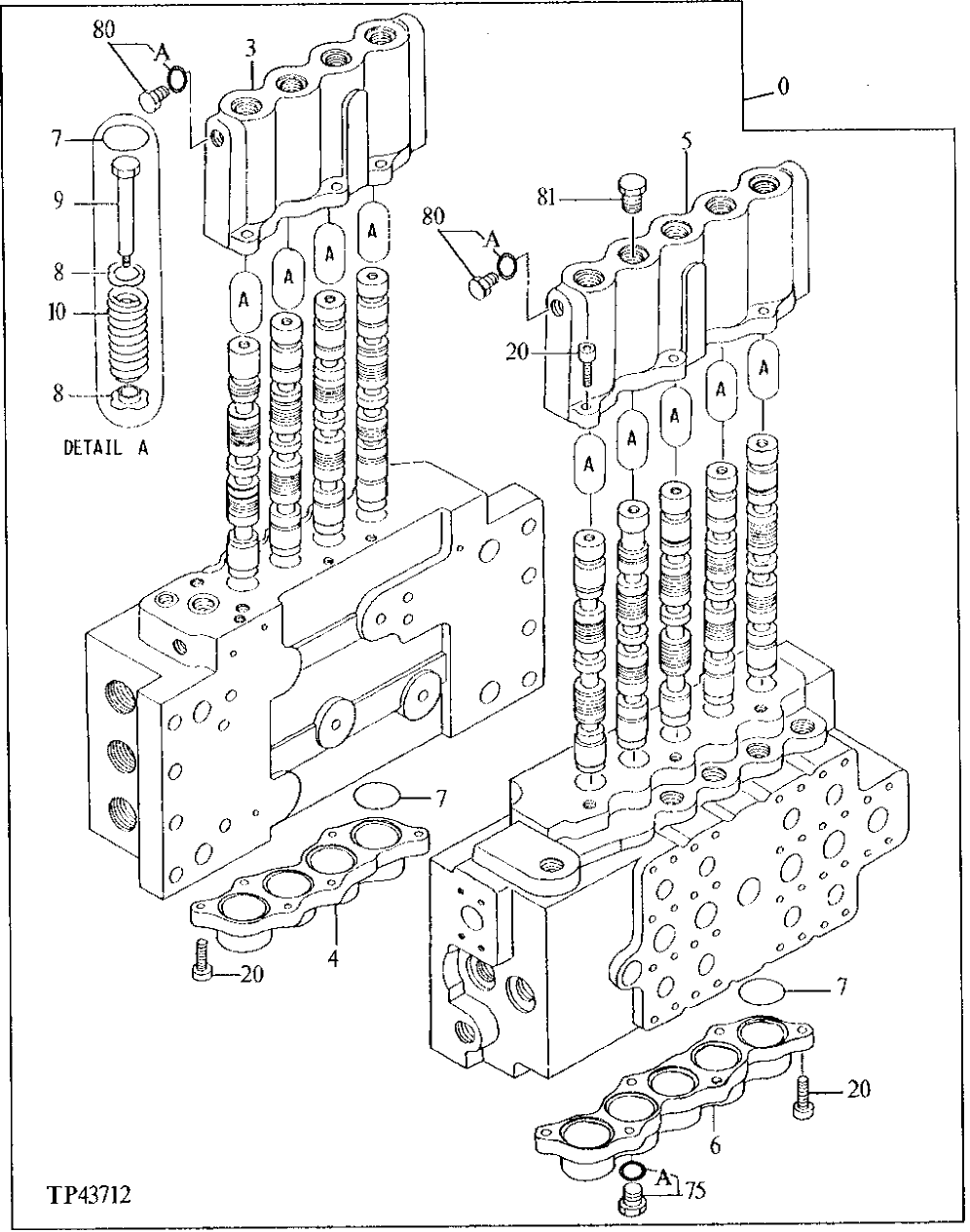

Запчасти John Deere 92ELC 199 - Control Valve Components 2160 Vehicle Hydraulics

0

4314749

Hyd Actuated Control Valve

NLA, SUB FOR AT201051, AT186751 AND 43147 49EX Contains All Items Listed On This Pag e Additional Components On Following Pages

1шт.

3

0496201

Cap (Hat)

SUB FOR AT200935

1шт.

4

0309702

Cap

SUB FOR TH109965

1шт.

5

0309703

Cap

SUB FOR TH109966

1шт.

6

0309704

Cap

SUB FOR TH109967

1шт.

7

CH14701

O-Ring

39.400 X 3.100 mm (1.551" X 0.122")

18шт.

8

0306003

Plate

SUB FOR TH109968

18шт.

9

0306005

Screw

SUB FOR TH109969

9шт.

10

0309705

Spring

SUB FOR TH109970

9шт.

20

0459541

Bolt

SUB FOR AT200931 AND AT200931

24шт.

75

0413518

Plug

SUB FOR AT154573

1шт.

75A

CH11570

O-Ring

1шт.

80

0309731

Fitting Plug

SUB FOR TH110002

2шт.

80A

M800650

Packing

1шт.

81

0332914

Drain Plug

SUB FOR TH110315

1шт.
