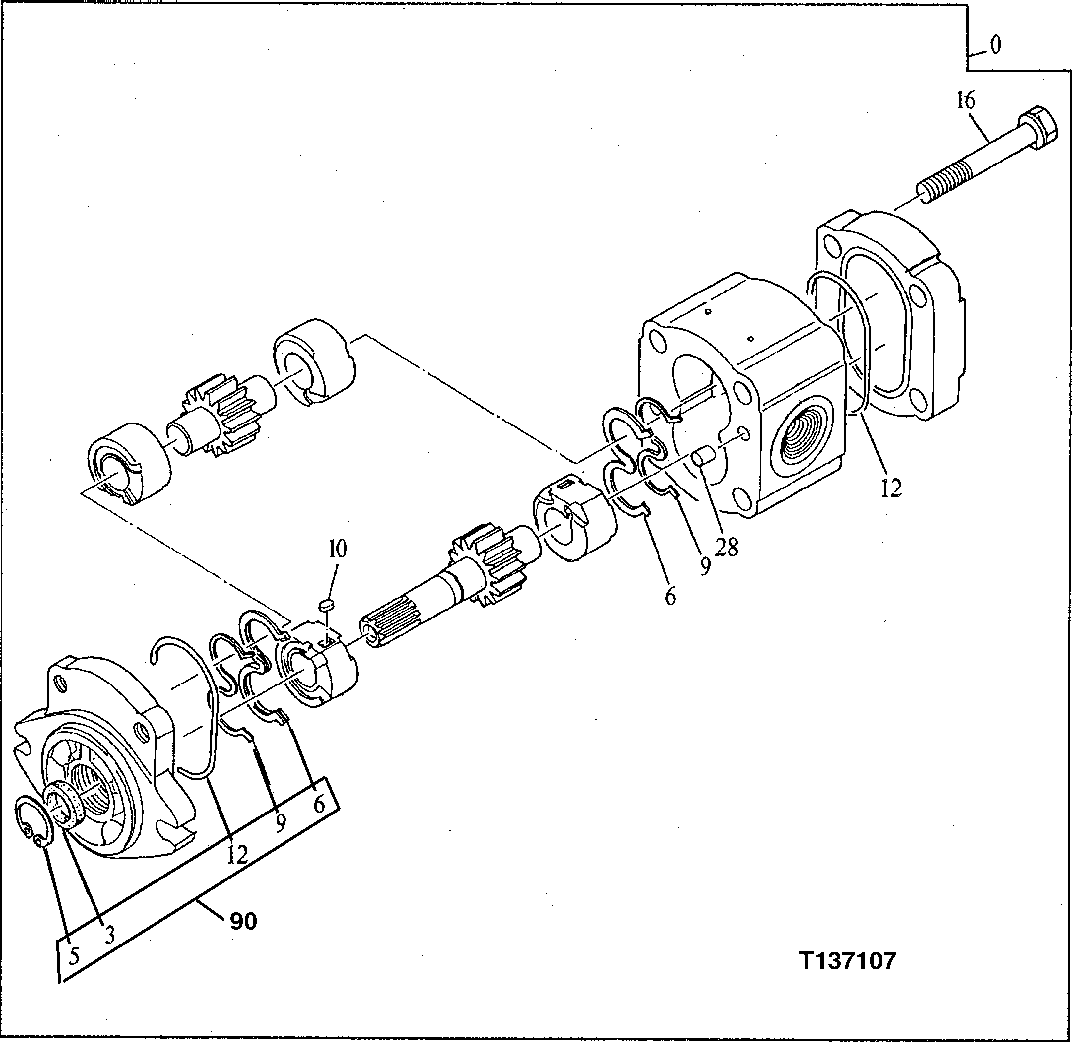

Запчасти John Deere 92ELC 197 - Gear Pump 2160 Vehicle Hydraulics

0

9217993

Pump

(SUB FOR TH109457 AND 4181700)

1шт.

3

0408202

Seal

(A) (SUB FOR TH109917) (SUB FOR AT153880)

1шт.

5

40M1855

Snap Ring

(A)

1шт.

6

Seal

(A) ( TH109918 NLA) (SUB 0408207 KIT)

2шт.

9

Back-Up Ring

(A) ( TH109920 NLA) (SUB 0408207 KIT)

2шт.

10

4206162

Key

(SUB FOR TH109921)

2шт.

12

4488720

O-Ring

(A) (SUB FOR 4206163, TH10 9922, 0354608 OR TH0354608)

2шт.

16

19M8093

Cap Screw

M10 X 100

4шт.

0266736

Washer

(SUB FOR TH105196)

4шт.

28

4206166

Dowel Pin

(SUB FOR TH109925)

2шт.

90

0408207

Seal Kit

(INCLUDES PARTS MARKED (A)) (SUB FOR AT153885)

1шт.
