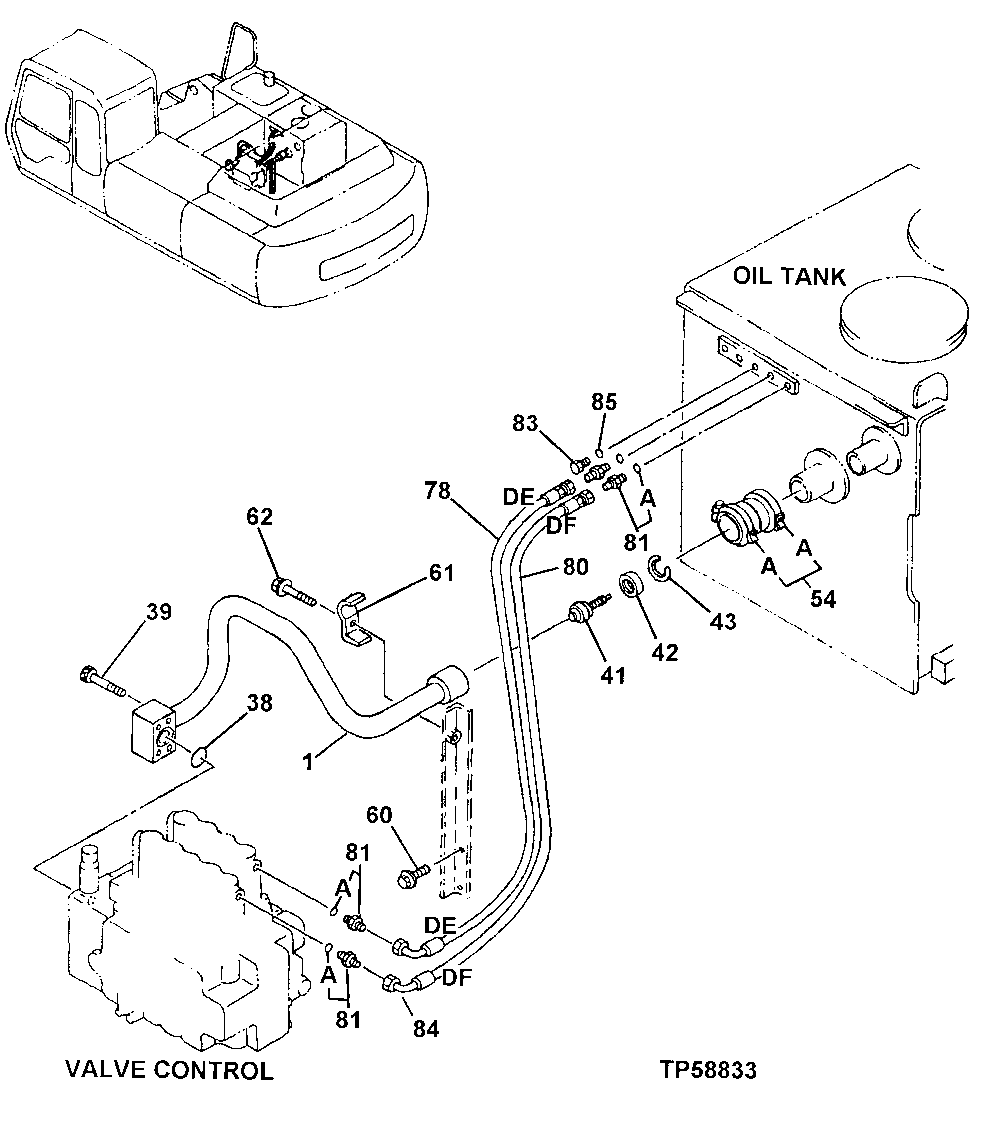

Запчасти John Deere 92ELC 192 - Oil Cooler Lines 2160 Vehicle Hydraulics

1

8056456

Line

(SUB FOR AT201149)

1шт.

38

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") (SUB FOR TH102992)

1шт.

39

19M8340

Screw

M10 X 65

4шт.

41

4324257

Flow Control Hyd. Valve

(SUB FOR AT201275)

1шт.

42

4188628

Ring

(SUB FOR TH108306)

1шт.

43

40M1864

Snap Ring

1шт.

54

4067833

Coupling

(SUB FOR TH101934)

1шт.

54A

4196261

Seal

(SUB FOR TH106968)

2шт.

60

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

61

4053698

Clamp

(SUB FOR TH101936)

1шт.

62

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

78

4213439-S

Hose

(SUB FOR AT201262)

1шт.

80

AE42718

Hydraulic Hose

11.1252" X 600 mm (23-1/2") X 11.1252"

1шт.

81

4200465

Adapter Fitting

(SUB FOR TH108328)

4шт.

81A

M800650

Packing

1шт.

83

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)

1шт.

84

AH89069

Elbow Fitting

1шт.

85

CH11570

O-Ring

1шт.
