Запчасти John Deere 92ELC 10 - Propel Drive (011000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

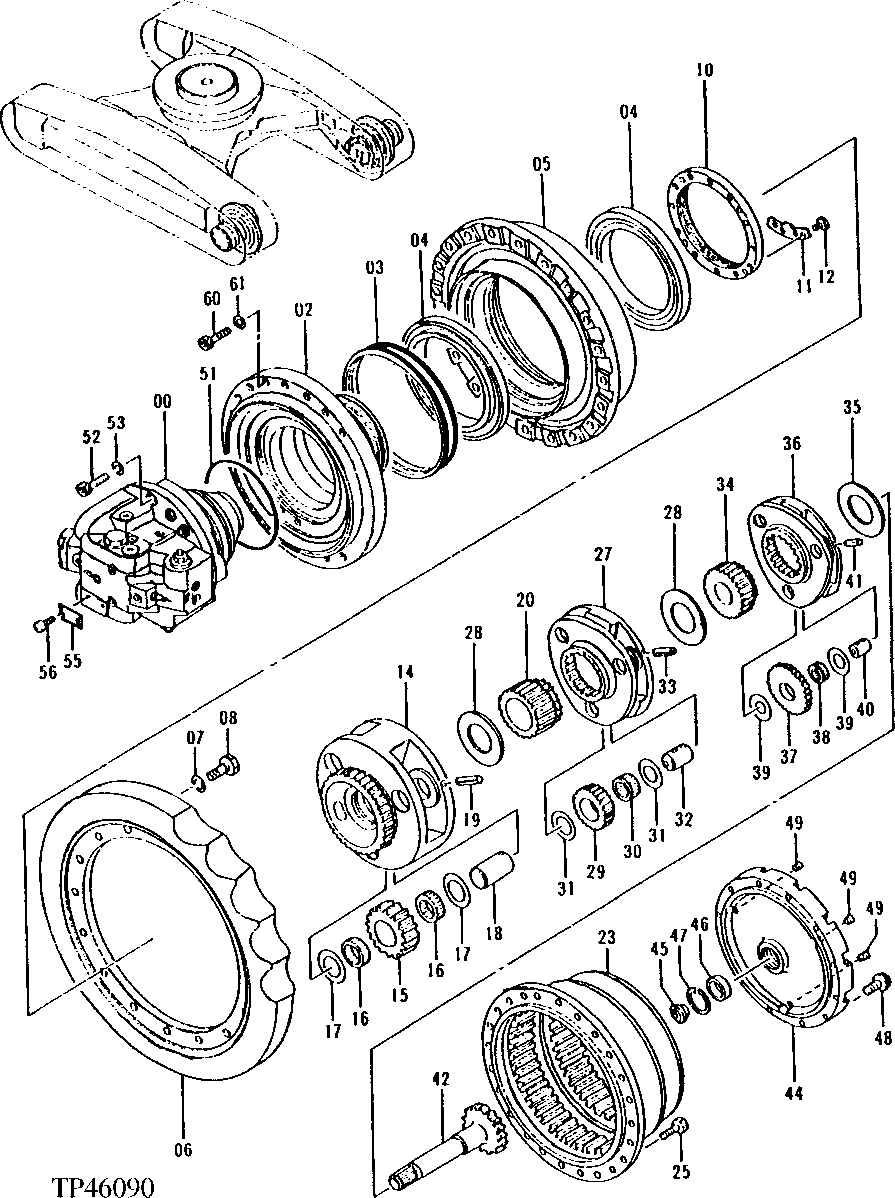

Схема запчастей John Deere 92ELC - 10 - Propel Drive (011000 - ) 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

Артикул

Название

Примечание

Количество

0

AT176679

Motor

1шт.

9149690

Hydraulic Motor

1шт.

9149690EX

Hydraulic Motor Reman

SUB FOR AT202582 OR AT217348, REMAN FOR 9149690 AND AT176679

1шт.

2

1020468

Housing

SUB FOR AT202584

1шт.

3

4066695

Seal

1шт.

4

TH111245

Tapered Roller Bearing

SUB FOR AT204937

2шт.

5

1020474

Drum

SUB FOR AT202585

1шт.

6

AT317662

Drive Sprocket

SUB FOR AT202586 OR 1017928

1шт.

7

12M7070

Lock Washer

20 mm

20шт.

8

19M8224

Cap Screw

M20 X 60

20шт.

10

3036256

Nut

SUB FOR TH111143

1шт.

11

4192974

Lock Plate

SUB FOR TH111244 Lock

1шт.

12

19M7872

Cap Screw

M12 X 25

2шт.

14

1020196

Planet Pinion Carrier

SUB FOR AT202587

1шт.

15

3054490

Gear

SUB FOR AT202588

3шт.

16

4371402

Needle Bearing

SUB FOR AT202589 OR AT217984

6шт.

17

4269470

Thrust Washer

SUB FOR AT202590

6шт.

18

4269452

Pin

SUB FOR AT202591

3шт.

19

4192021

Spring Pin

SUB FOR TH111240

3шт.

20

3068731

Sun Gear

SUB FOR AT202592

1шт.

23

1016081

Ring Gear

SUB FOR AT202593

1шт.

25

19M7488

Cap Screw

M16 X 40

24шт.

27

1016153

Planet Pinion Carrier

SUB FOR AT202594

1шт.

28

4401293

Spacer

SUB FOR TH111249

2шт.

29

3054491

Gear

SUB FOR AT202595

3шт.

30

4269454

Needle Bearing

SUB FOR AT202596

3шт.

31

4284521

Shim

SUB FOR AT204941

6шт.

32

4269451

Bushing

SUB FOR AT202597

3шт.

33

34M7119

Spring Pin

5 X 65 mm

3шт.

34

3068730

Sun Gear

SUB FOR AT202598

1шт.

35

AT204943

Washer

1шт.

36

1016154

Planet Pinion Carrier

SUB FOR AT202599

1шт.

37

3054492

Gear

SUB FOR AT204727

3шт.

38

4455098

Needle Bearing

SUB FOR AT204728 OR 4269471

3шт.

39

4284520

Shim

SUB FOR AT204729

6шт.

40

FYB00001382

Pin

SUB FOR AT204730 OR 4269472

3шт.

41

4192020

Spring Pin

SUB FOR TH111239

3шт.

42

2031377

Shaft

SUB FOR AT204731

1шт.

44

2032275

Cover

SUB FOR AT204732

1шт.

45

4278011

Pin Fastener

SUB FOR AT130955

1шт.

46

4278168

Bearing

SUB FOR AT130956

1шт.

47

40M7228

Snap Ring

1шт.

48

19M8011

Cap Screw

M12 X 30

12шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

12шт.

49

94-2013

Fitting Plug

SUB FOR TH100648

3шт.

51

4269473

O-Ring

SUB FOR AT203608

1шт.

52

M341885

Screw

SUB FOR AT204922

4шт.

53

4287213

Washer

SUB FOR AT204733

4шт.

55

Identification Plate

1шт.

56

37H99

Screw

0.100" X 1/4"

2шт.

60

19M7892

Cap Screw

M20 X 80

34шт.

61

N231749

Washer

20.620 X 38.100 X 6.350 m m (13/16" X 1-1/2" X 1/4")

34шт.

Выбрано товаров: 52
