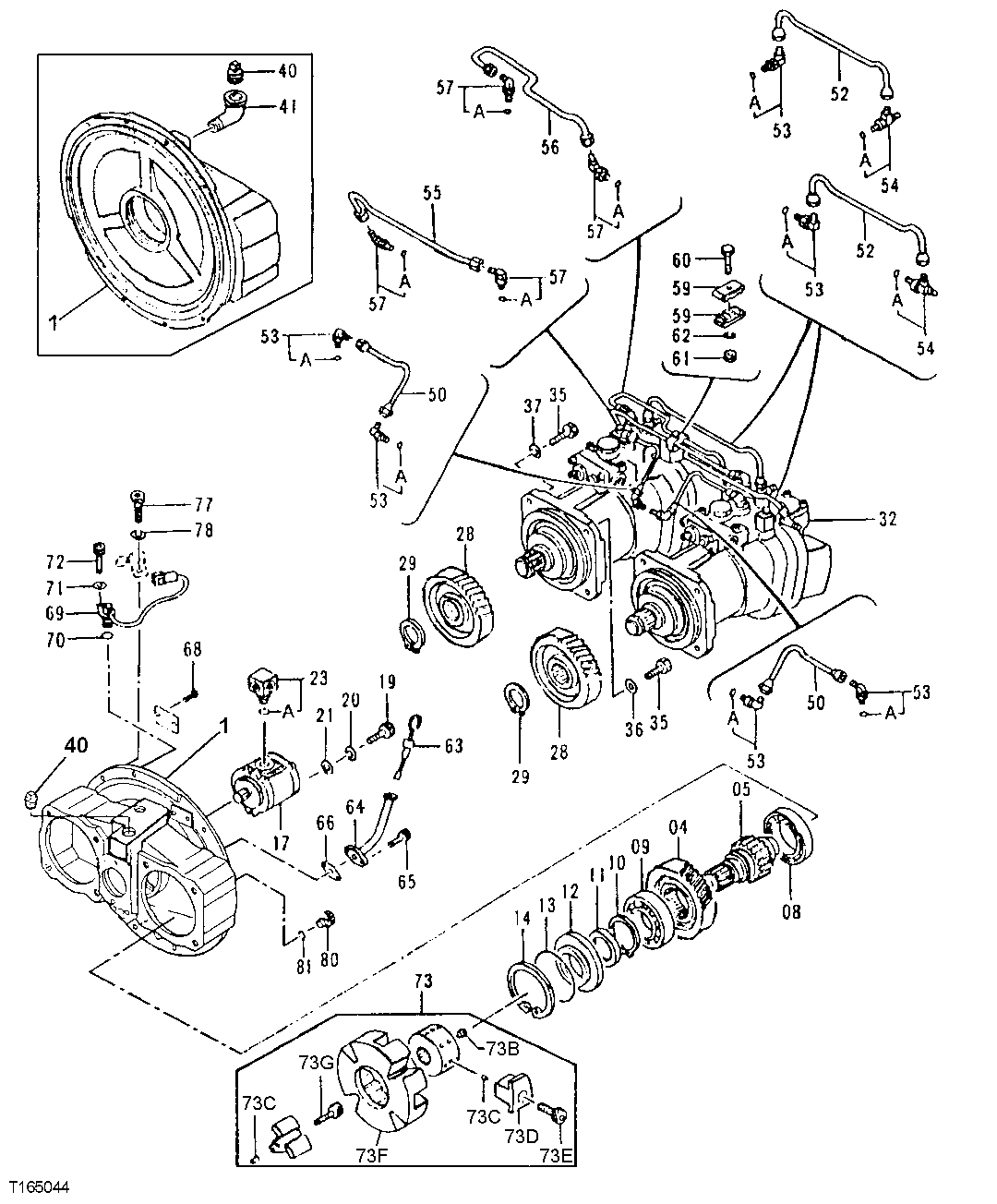

Запчасти John Deere 92ELC 188 - Hydraulic Pump 2160 Vehicle Hydraulics

1

1026611

Housing

(SUB FOR AT200957)

1шт.

1026550

Gear Case

(SUB FOR AT202600)

1шт.

4

3035852

Gear

(SUB FOR TH111138)

1шт.

5

3081085

Pinion Shaft

(SUB FOR AT219648) (SUB FOR 30380 90, ALONG W/ M804206, AND 4395457)

1шт.

8

M804206

Bearing

(SUB FOR TH101792) (SUB FOR AT250102)

1шт.

9

4720025

Ball Bearing

(SUB FOR JD9320, THIS APPLICATIO N) (SUB FOR AT250103AND 4395457)

1шт.

10

40M7120

Snap Ring

1шт.

11

TH109453

Seal

1шт.

12

3033593

Cover

(SUB FOR TH109454)

1шт.

13

AT264339

O-Ring

(SUB FOR TH100122)

1шт.

14

40M5463

Snap Ring

(SUB FOR 40M7178)

1шт.

17

9217993

Pump

(SUB FOR TH109457 AND 4181700) Gear

1шт.

19

19M8337

Screw

M10 X 30

2шт.

20

12M7135

Lock Washer

10 mm (SUB FOR 12M6791)

2шт.

21

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

23

4191974

Adapter Fitting

(SUB FOR TH109459)

1шт.

23A

4506418

O-Ring

(SUB FOR U46489)

1шт.

28

T200649

Helical Gear

(SUB FOR TH111139 OR 3035853)

2шт.

29

40M7166

Snap Ring

2шт.

32

AT201174

Pump

NLA, (ORDER AT217368)

2шт.

AT217368

Pump

NLA, (ORDER 9127385EX)

2шт.

9127385

Pump

2шт.

9127385EX

Hydraulic Pump Reman

(REMAN FOR AT201174 OR 91 27385) (SUB FOR AT217368)

2шт.

AT204769

Pump

NLA, (ORDER AT217349)

2шт.

AT217349

Pump

NLA, (ORDER 9136850EX)

2шт.

9136850

Pump

NLA, (ORDER 9136850EX)

2шт.

9136850EX

Hydraulic Pump Reman

(REMAN FOR AT204769 OR 91 36850) (SUB FOR AT217349)

2шт.

35

19M7489

Cap Screw

M16 X 45 (SUB FOR 19M7396)

8шт.

36

4126090

Sealing Washer

(SUB FOR TH109463)

4шт.

37

12H294

Lock Washer

5/8"

4шт.

40

A2093R

Pipe Plug

19.050 mm (3/4")

1шт.

4234782

Plug

(SUB FOR AT200990)

1шт.

41

15H621

Elbow Fitting

3/4"

1шт.

50

4192946

Oil Line

(SUB FOR TH111242)

2шт.

52

4192947

Oil Line

(SUB FOR TH111243)

2шт.

53

4293950

Fitting

(SUB FOR TH109468 OR AT160584)

6шт.

53A

M800650

Packing

1шт.

54

4203485

Fitting

(SUB FOR TH109466)

2шт.

54A

M800650

Packing

1шт.

55

3036249

Oil Line

(SUB FOR TH111142)

1шт.

56

3036486

Oil Line

(SUB FOR TH111155)

1шт.

57

4118499

Elbow Fitting

(SUB FOR TH101821)

4шт.

57A

M800650

Packing

1шт.

59

4179843

Clamp

(SUB FOR TH109471)

2шт.

60

19M7377

Cap Screw

M8 X 28

1шт.

61

14M7273

Nut

M8

1шт.

62

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

63

4721548

Gauge

(SUB FOR TH112088 AND 4242263)

1шт.

64

4242262

Oil Tube

(SUB FOR TH112089)

1шт.

65

19M7932

Cap Screw

M8 X 16

2шт.

66

9742779

Gasket

(SUB FOR TH112091) (SUB FOR AT214401)

1шт.

68

37H99

Screw

0.100" X 1/4"

2шт.

69

4265372

Sensor

(SUB FOR AT154297) Engine Speed Sensor

1шт.

70

4306888

O-Ring

(SUB FOR AT154310)

1шт.

71

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

72

19M8553

Screw

M6 X 16

1шт.

73

4191663

Coupling

(SUB FOR TH111234)

1шт.

73B

22M7137

Set Screw

M16 X 16

2шт.

73C

34M7117

Spring Pin

5 X 10 mm

12шт.

73D

4216947

Insert

(SUB FOR TH111402)

4шт.

73E

4216949

Screw

(SUB FOR TH111404)

4шт.

73F

4216944

Coupling

1шт.

73G

4216948

Screw

(SUB FOR TH111403)

4шт.

77

0209423

Bolt

(SUB FOR TH100738)

1шт.

78

12M7133

Lock Washer

6 mm (SUB FOR 12M7129)

1шт.

80

0311336

Pipe Plug

(SUB FOR TH109082)

1шт.

81

CH11570

O-Ring

1шт.
