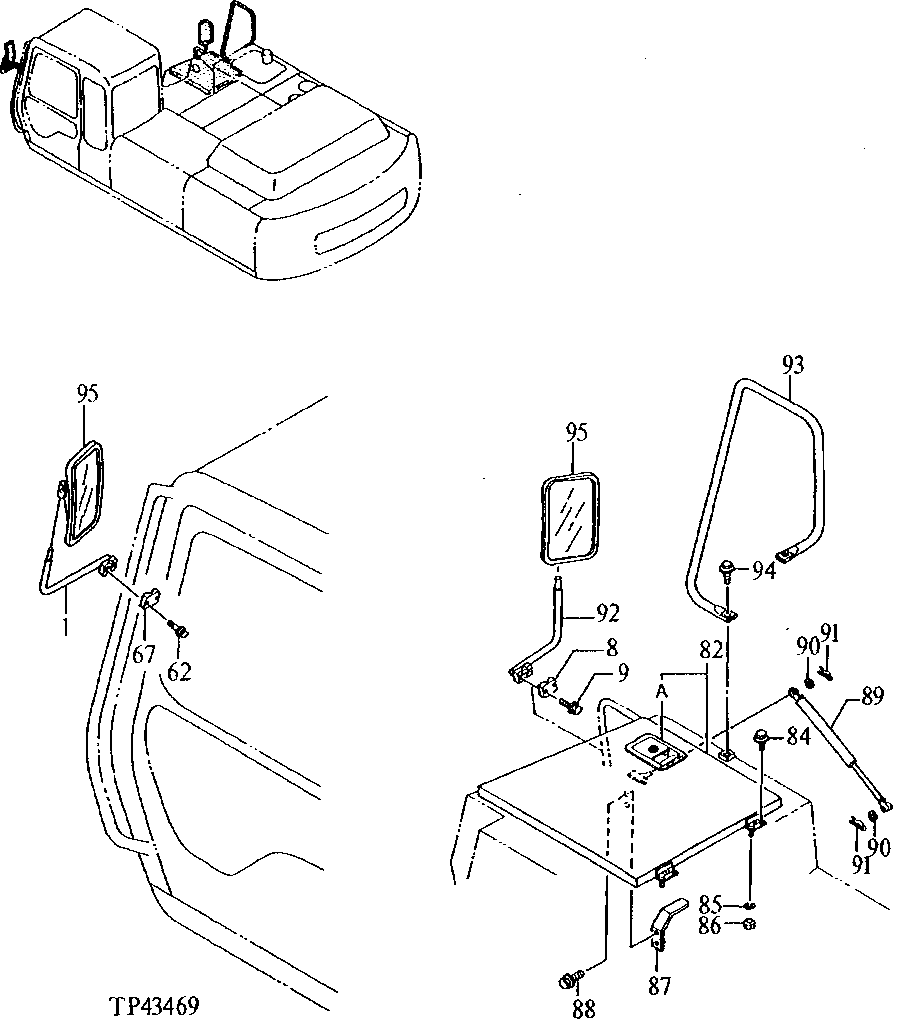

Запчасти John Deere 92ELC 181 - Tool Box Cover 1910 Hood Or Engine Enclosure

1

Arm

( AT161068 NLA) (SUB AT1866 49 ARM AND AT185207) Mirror

1шт.

8076201

Arm

(SUB FOR AT186649)

1шт.

8

4113705

Clamp

(SUB FOR AT128469)

1шт.

9

19M7922

Cap Screw

M8 X 40

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

62

19M8359

Cap Screw

M8 X 45

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

67

AT219494

Clamp

(SUB FOR AT131743)

1шт.

82

7027058

Cover

(SUB FOR AT201111)

1шт.

82A

Lock

( TH110126 NLA) (SUB AT214010)

1шт.

84

19M8761

Screw

M10 X 22

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

85

12M7066

Lock Washer

10 mm

2шт.

86

14M7274

Nut

M10

2шт.

87

9736904

Bracket

(SUB FOR AT154546)

1шт.

88

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

89

4188366

Absorber

(SUB FOR TH109684)

1шт.

90

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

91

H132922

Cotter Pin

2шт.

92

8056640

Arm

(SUB FOR AT161067)

1шт.

93

8047346J

Handrail

(SUB FOR AT154479 OR 8047346)

1шт.

94

19M8765

Screw

M12 X 28 (SUB FOR 19M3204)

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

95

Rear View Mirror

( TH104119 NLA) (SUB AT1852 07 MIRROR AND AT186649 ARM)

2шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

2шт.
