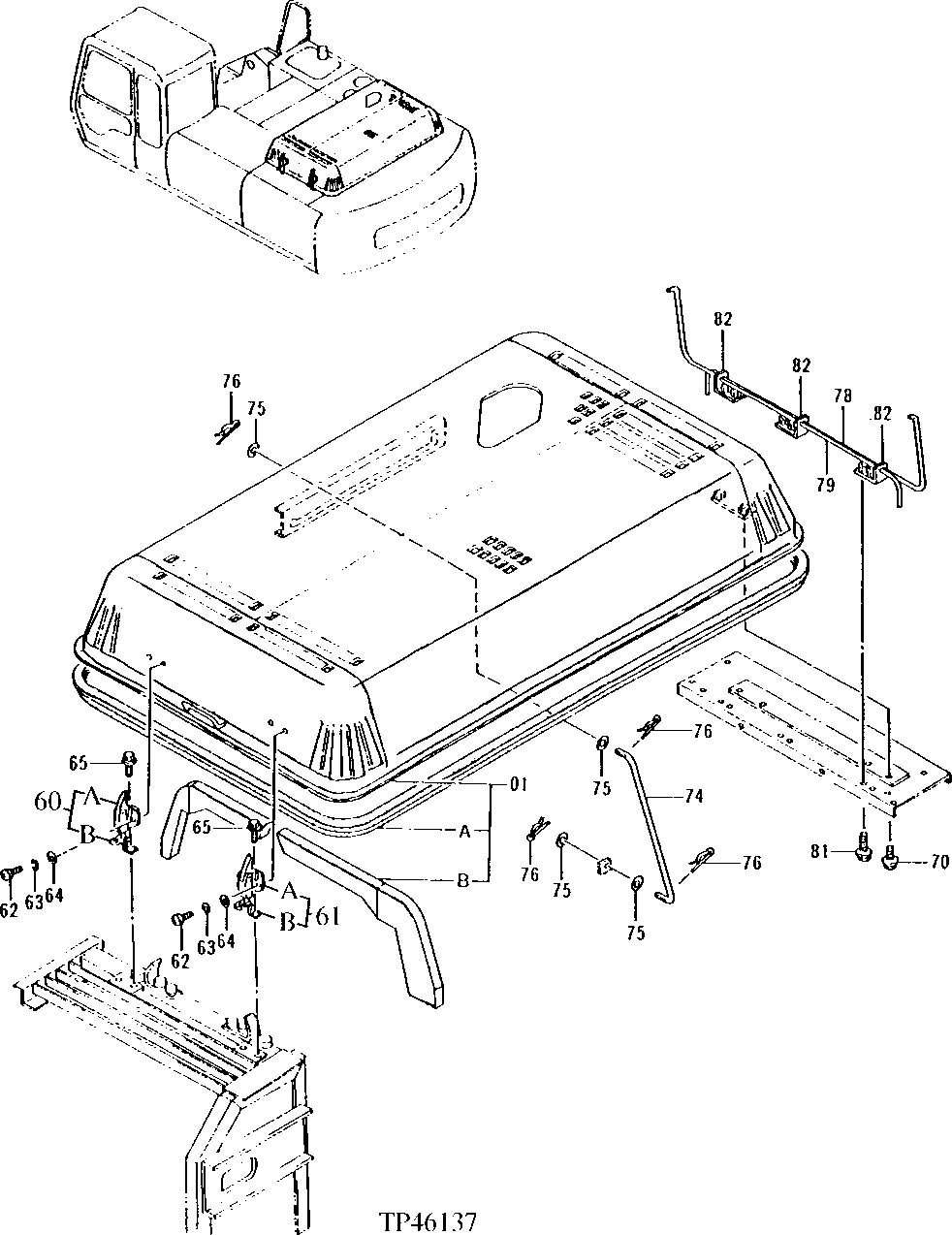

Запчасти John Deere 92ELC 180 - Engine Cover (007440 - ) 1910 Hood Or Engine Enclosure

1

5004506J

Cover

(SUB FOR AT171616 OR 5004506)

1шт.

5004508J

Cover

(SUB FOR AT204735 OR 5004508)

1шт.

5005067J

Cover

(SUB FOR AT178248 OR 5005067)

1шт.

1A

4278714

Isolator

(SUB FOR AT201024)

1шт.

1B

4346973

Isolator

(SUB FOR AT204982)

1шт.

60

Catch

With Lock ( AT131937 NLA)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.

60A

3021131

Anchor

(SUB FOR TH102247)

1шт.

60B

3074568

Catch

(SUB FOR AT131654)

1шт.

61

Catch

Without Lock ( AT131938 NLA)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.

61A

3021131

Anchor

(SUB FOR TH102247)

1шт.

61B

Catch

(SUB AT131654) ( AT131653 NLA)

1шт.

62

21M7397

Screw

M8 X 25

4шт.

63

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

64

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

65

19M7881

Screw

M8 X 20

4шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

70

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

74

4278783

Bracket

(SUB FOR AT201025)

1шт.

75

24M7053

Washer

17 X 30 X 3 mm

4шт.

76

M40461

Spring Locking Pin

(SUB FOR TH100590)

4шт.

78

4335214

Bar

(SUB FOR AT201080)

1шт.

79

4335218

Bar

(SUB FOR AT201081)

1шт.

81

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

82

9739567

Bracket

(SUB FOR AT201193)

3шт.
