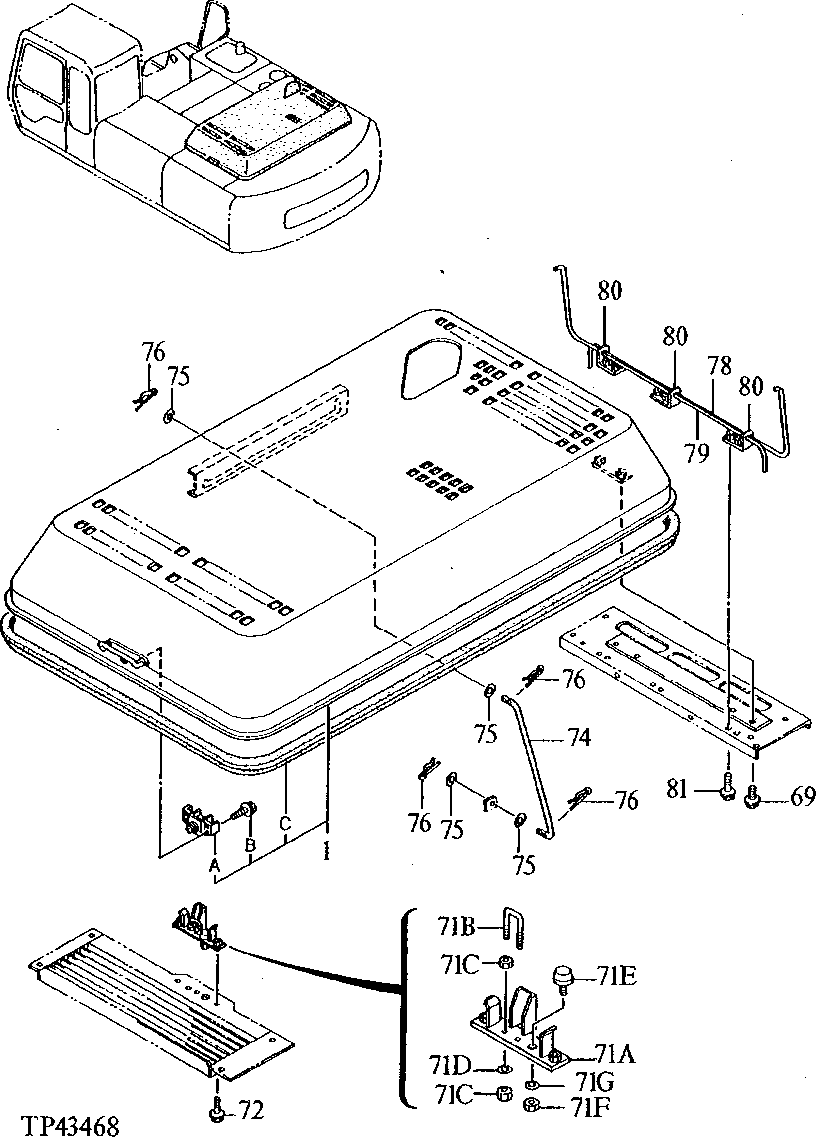

Запчасти John Deere 92ELC 179 - Engine Cover ( - 007439) 1910 Hood Or Engine Enclosure

1

5003744J

Cover

(SUB FOR AT201086 OR 5003744)

1шт.

1A

2038733

Lock

(SUB FOR 2031978, AT155227) ( FOR DETAIL SEE SEPARATE PAGE)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.

1B

J900614

Bolt

(SUB FOR TH104056)

4шт.

12M7006

Lock Washer

6 mm

4шт.

1C

4278714

Isolator

(SUB FOR AT201024)

1шт.

69

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

71A

AT307230

Bracket

(SUB FOR AT201136 OR 8053476)

1шт.

71B

4280175

Bolt

(SUB FOR AT155315)

1шт.

71C

14M7273

Nut

M8

4шт.

71D

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

71E

4294508

Bumper

(SUB FOR AT201032)

1шт.

71F

14M7274

Nut

M10

1шт.

71G

12M7066

Lock Washer

10 mm

1шт.

72

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

74

4278783

Bracket

(SUB FOR AT201025)

1шт.

75

24M7053

Washer

17 X 30 X 3 mm

4шт.

76

M40461

Spring Locking Pin

(SUB FOR TH100590)

4шт.

78

4335214

Bar

(SUB FOR AT201080)

1шт.

79

4335218

Bar

(SUB FOR AT201081)

1шт.

80

9739567

Bracket

(SUB FOR AT201193)

3шт.

81

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.
