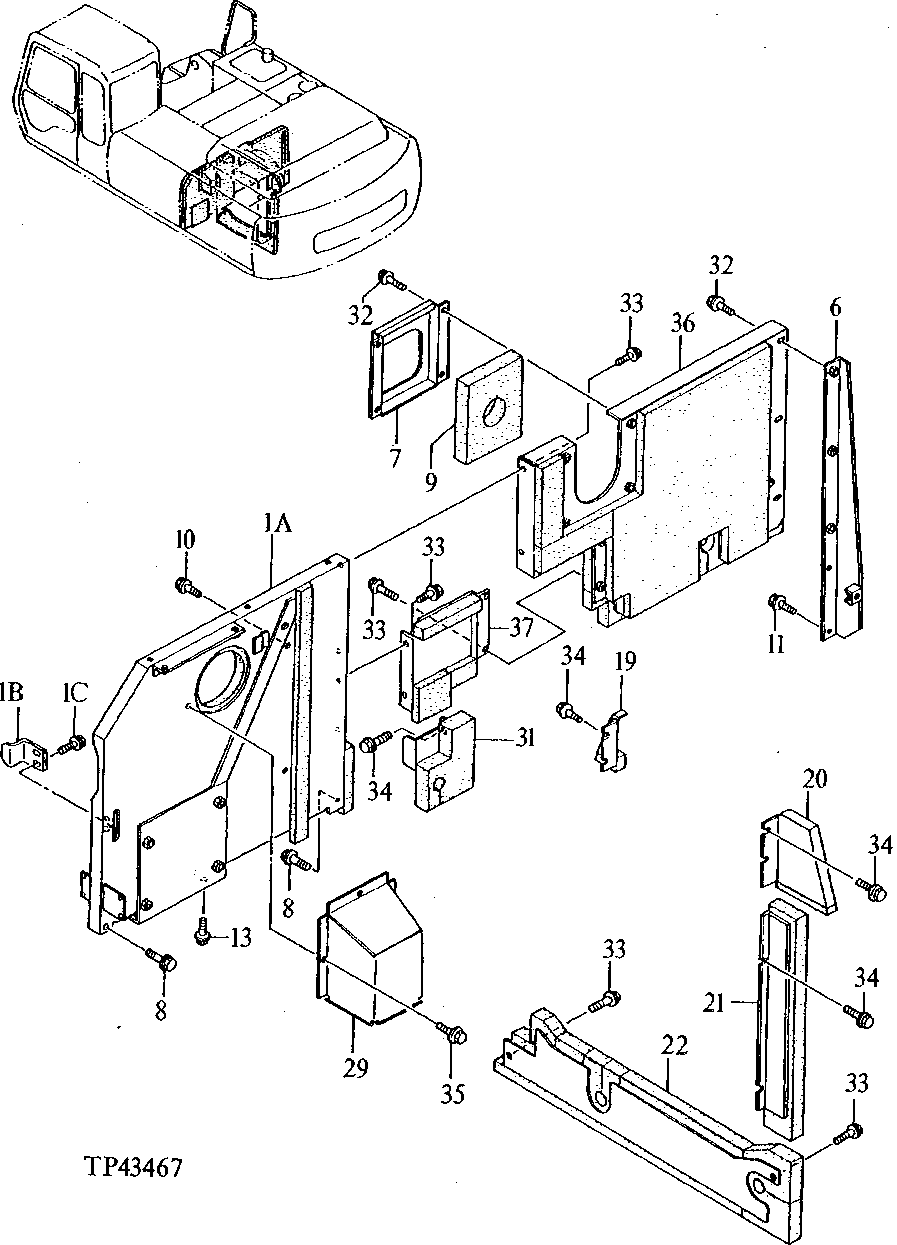

Запчасти John Deere 92ELC 178 - Covers 1910 Hood Or Engine Enclosure

1A

6012971

Cover

(SUB FOR AT201098)

1шт.

6014807

Cover

(SUB FOR AT204736)

1шт.

1B

4257087

Stop

(SUB FOR AT154930)

1шт.

1C

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

6

9737466

Bracket

(SUB FOR AT201192)

1шт.

7

2032138

Cover

(SUB FOR AT200960)

1шт.

8

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

9

Rubber Mount

(CTL FROM BULK MATERIAL) ( AT201023 NLA)

1шт.

10

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

11

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

13

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

19

8051188

Cover

(SUB FOR AT201133)

1шт.

8055016

Cover

(SUB FOR AT204988)

1шт.

20

8057551

Cover

(SUB FOR AT201160)

1шт.

8060286

Cover

(SUB FOR AT204737)

1шт.

21

8051101

Cover

(SUB FOR AT201132)

1шт.

4344499

Isolator

(SUB FOR AT204734)

1шт.

22

8057407

Cover

(SUB FOR AT201159)

1шт.

8055018

Cover

(SUB FOR AT204989)

1шт.

29

2034324

Cover

(SUB FOR AT200961)

1шт.

31

8054551

Cover

(SUB FOR AT201139)

1шт.

32

19M7662

Cap Screw

M10 X 30

7шт.

12M7066

Lock Washer

10 mm

7шт.

24M7028

Washer

10.500 X 20 X 2 mm

7шт.

33

19M7402

Cap Screw

M10 X 25

8шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

8шт.

24M7346

Washer

11 X 20 X 2 mm

8шт.

34

19M8324

Cap Screw

M10 X 16

8шт.

12M7066

Lock Washer

10 mm

8шт.

35

J010814

Screw With Washer

(SUB FOR AT132457)

2шт.

36

7027162

Cover

(SUB FOR AT201113)

1шт.

37

8056516

Cover

(SUB FOR AT201152)

1шт.
