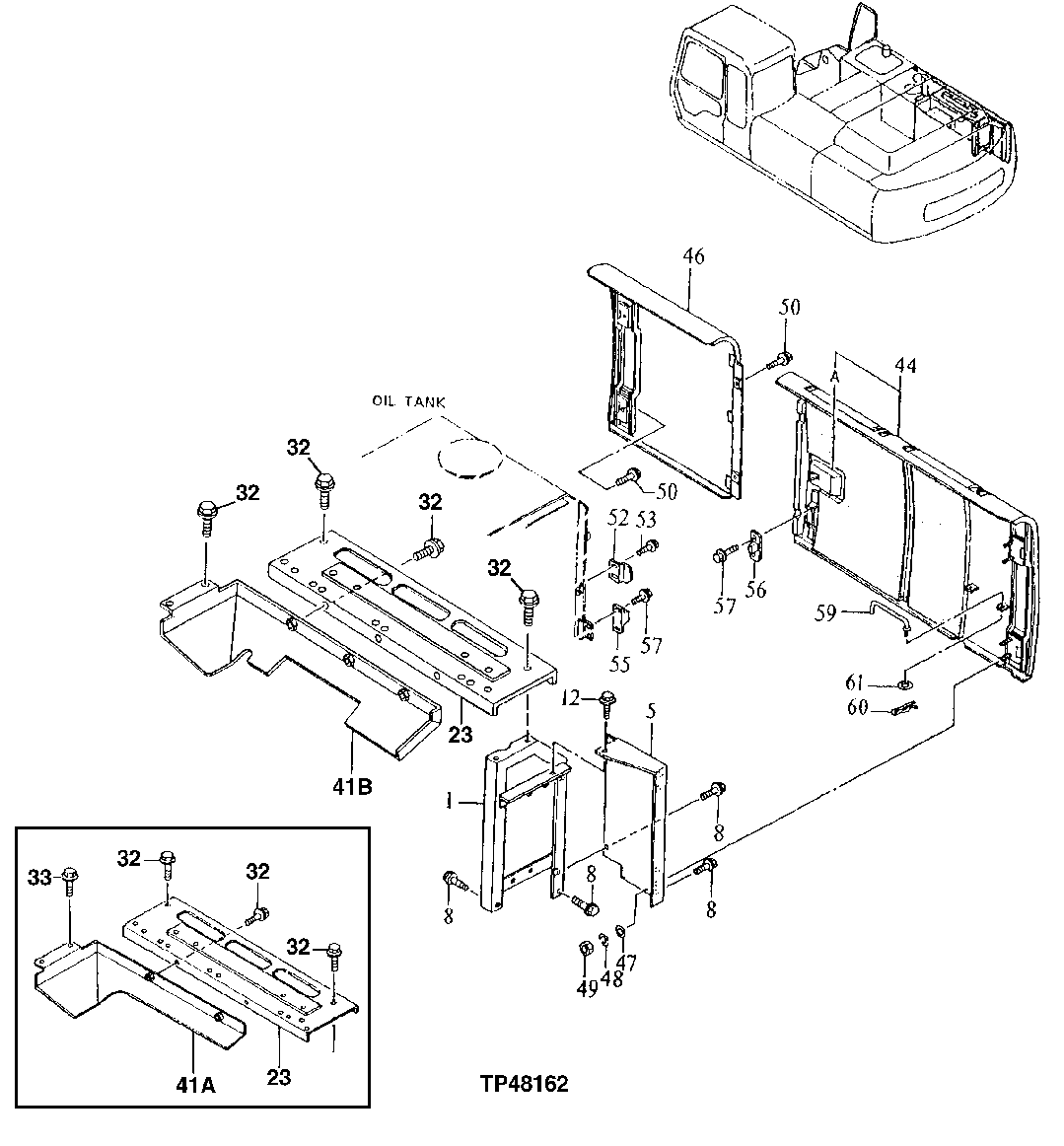

Запчасти John Deere 92ELC 176 - Hydraulic Pump Compartment Top Cover and Supports 1910 Hood Or Engine Enclosure

1

7025548

Support

(SUB FOR AT201103)

1шт.

5

8053108

Support

(SUB FOR AT201135)

1шт.

8

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

12

19M7662

Cap Screw

M10 X 30

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

23

7026131

Cover

(SUB FOR AT201106)

1шт.

32

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

19M7662

Cap Screw

M10 X 30

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

33

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

41A

8057084

Cover

(SUB FOR AT201157)

1шт.

41B

8067264

Cover

(SUB FOR AT178246)

1шт.

44

5003770

Door

(SUB FOR AT201087)

1шт.

44A

Lock

( TH110126 NLA)- (FURNISH AT214010)

1шт.

46

6013331

Door

(SUB FOR AT201099)

1шт.

47

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

48

12M7066

Lock Washer

10 mm

4шт.

49

14M7274

Nut

M10

4шт.

50

19M7402

Cap Screw

M10 X 25

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

52

4271846

Bracket

(SUB FOR AT201007)

1шт.

53

19M7662

Cap Screw

M10 X 30

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

55

4175253

Bracket

(SUB FOR AT318015, AT154915)

1шт.

56

4175254

Stop

(SUB FOR AT154916)

1шт.

57

19M7923

Cap Screw

M6 X 12

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

59

9737868

Bar

(SUB FOR AT155583)

1шт.

60

H132922

Cotter Pin

1шт.

61

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.
