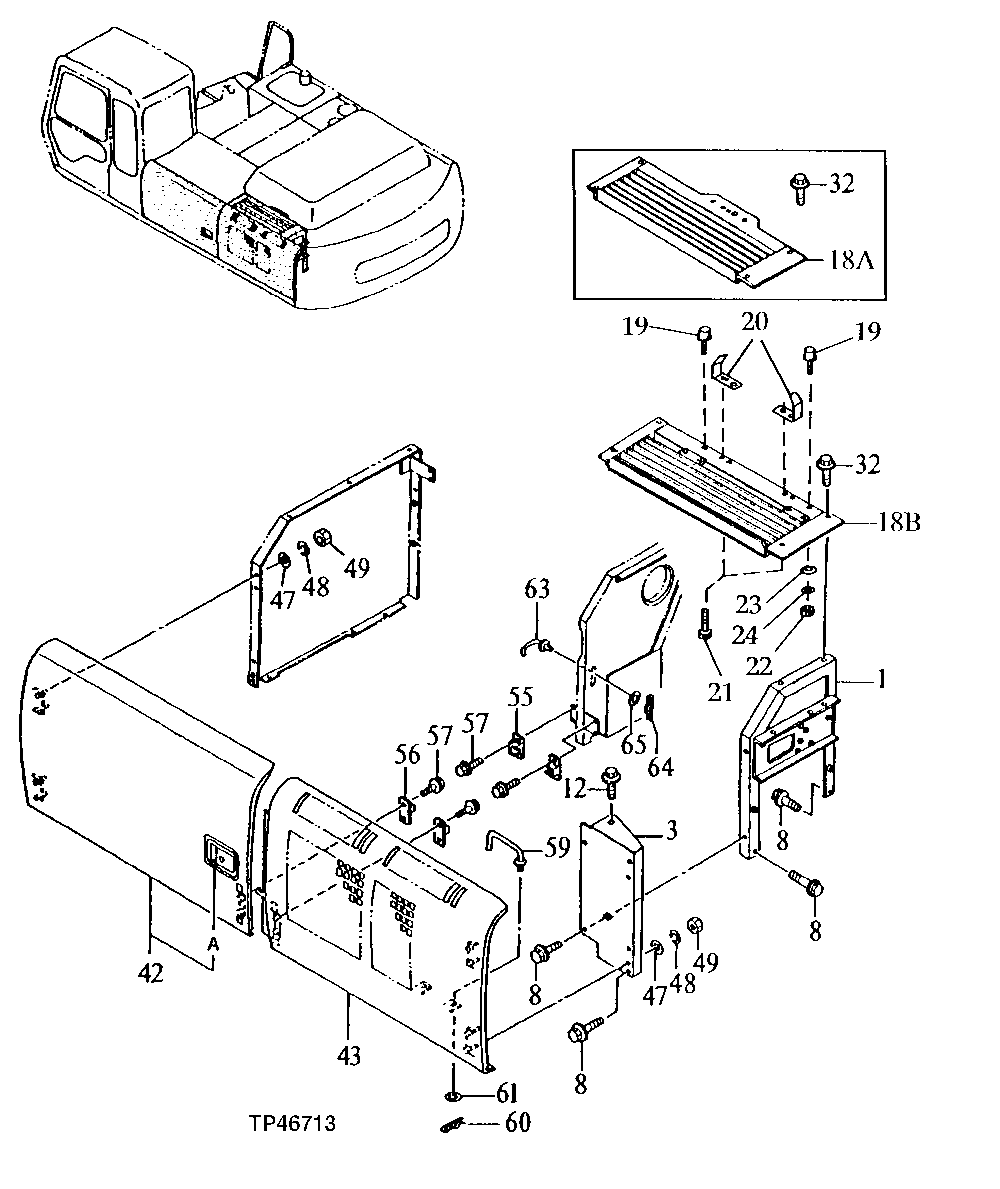

Запчасти John Deere 92ELC 174 - Cooling Package Compartment Door 1910 Hood Or Engine Enclosure

1

7026140

Support

(SUB FOR AT201108)

1шт.

3

8053107

Support

(SUB FOR AT201134)

1шт.

8

19M7662

Cap Screw

M10 X 30

5шт.

12M7066

Lock Washer

10 mm

5шт.

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

12

19M7662

Cap Screw

M10 X 30

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

18A

8054785

Cover

(SUB FOR AT201140)

1шт.

18B

7029285

Cover

(SUB FOR AT204987)

1шт.

19

4294508

Bumper

(SUB FOR AT201032)

2шт.

20

AT307244

Bracket

(SUB FOR AT171615 OR 9743889)

2шт.

21

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

22

14M7274

Nut

M10

2шт.

23

12M7066

Lock Washer

10 mm

2шт.

24

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

32

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

42

5003218

Door

(SUB FOR AT201084)

1шт.

5005001

Door

(SUB FOR AT178247)

1шт.

42A

Lock

( TH110126 NLA- FURNISH AT214010)

1шт.

43

5004327

Door

(SUB FOR AT201088)

1шт.

47

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

48

12M7066

Lock Washer

10 mm

8шт.

49

14M7274

Nut

M10

8шт.

55

4175253

Bracket

(SUB FOR AT318015, AT154915)

2шт.

56

4175254

Stop

(SUB FOR AT154916)

2шт.

57

19M7923

Cap Screw

M6 X 12

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

59

9737868

Bar

(SUB FOR AT155583)

1шт.

60

H132922

Cotter Pin

1шт.

61

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

63

9738313

Bar

(SUB FOR AT155585)

1шт.

64

M800051

Pin

(SUB FOR CH10542)

1шт.

65

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.
