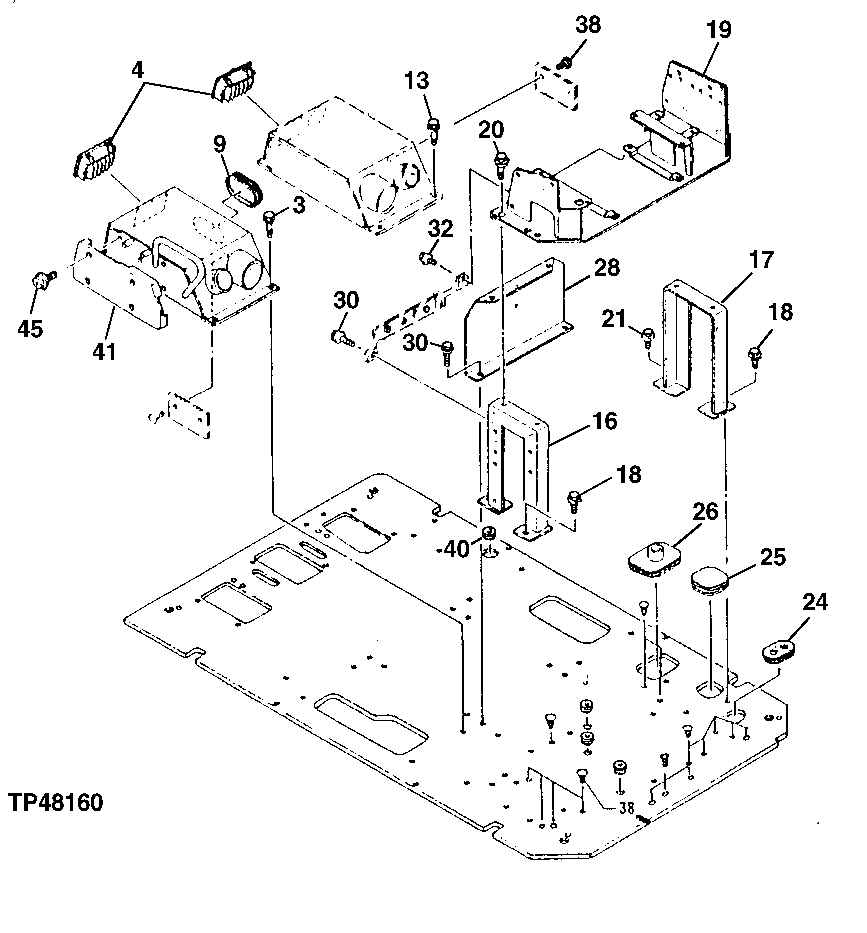

Запчасти John Deere 92ELC 154 - Cab Floor Parts (012001 - ) 1810 Operator Enclosure

0

Plate

(NLA)

1шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

4

4259639

Grille

(SUB FOR AT154269)

2шт.

9

4280565

Grommet

(SUB FOR AT154353)

1шт.

13

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

14

4263965

Bushing

(SUB FOR AT154290) (USE IF REQUIRED)

1шт.

16

Support

( AT204991 NLA)

1шт.

17

Support

( AT204990 NLA)

1шт.

18

19M7662

Cap Screw

M10 X 30

3шт.

12M7066

Lock Washer

10 mm

3шт.

19

Bracket

( AT204983 NLA)

1шт.

20

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

21

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

24

4276794

Grommet

(SUB FOR AT154344)

1шт.

25

4205080

Grommet

(SUB FOR TH108613)

1шт.

26

4276792

Grommet

(SUB FOR AT154343)

1шт.

28

Plate

( AT204992 NLA)

1шт.

30

19M7662

Cap Screw

M10 X 30

3шт.

12M7066

Lock Washer

10 mm

3шт.

31

Bracket

(NLA)

1шт.

32

19M7932

Cap Screw

M8 X 16

1шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

39

4205084

Grommet

(SUB FOR TH108616)

3шт.

40

4205084

Grommet

(SUB FOR TH108616)

1шт.

41

1016676

Cover

(SUB FOR AT154063)

1шт.

45

J680645

Screw With Washer

(SUB FOR AT200014)

4шт.
