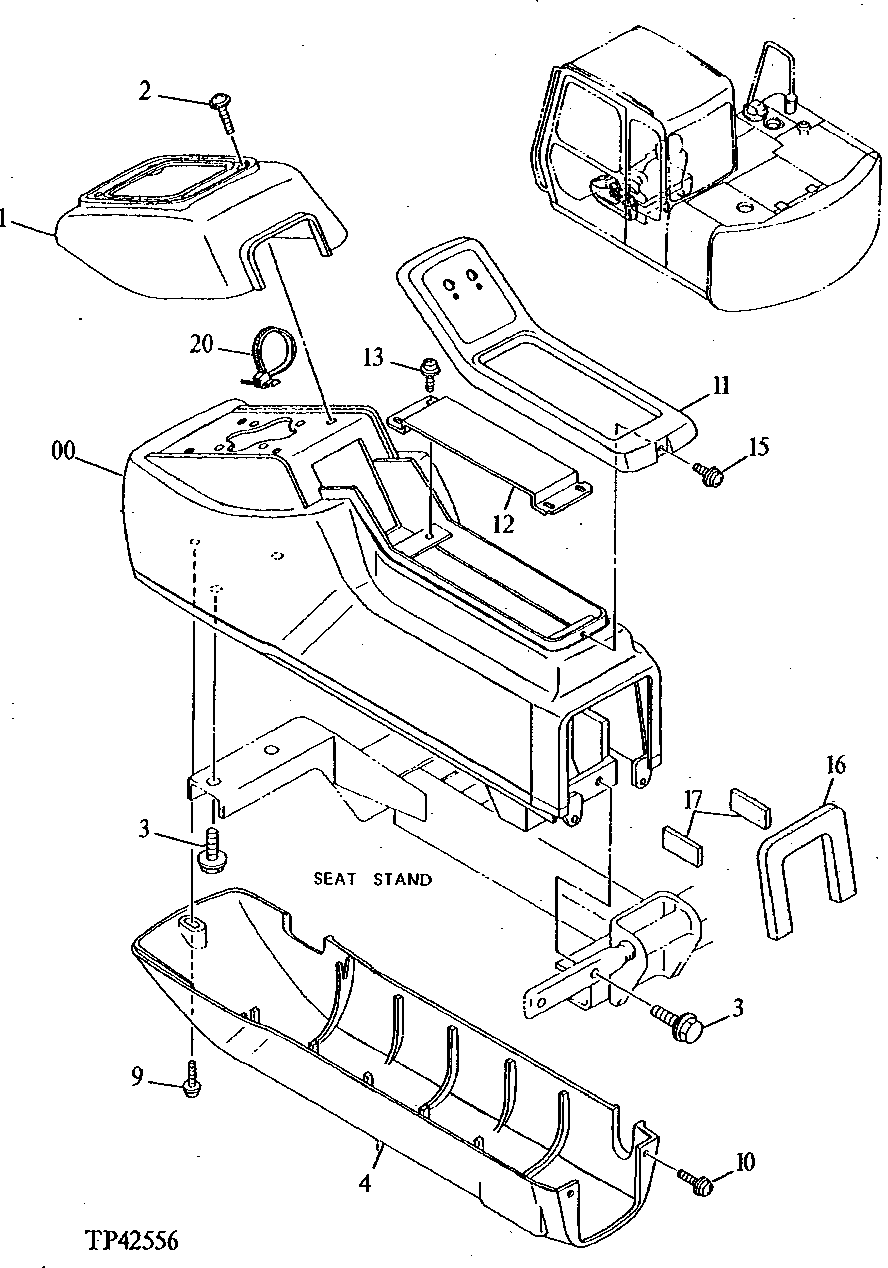

Запчасти John Deere 92ELC 150 - Left Console 1810 Operator Enclosure

0

5003051

Stand

(SUB FOR AT155143)

1шт.

1

1015067

Cover

(SUB FOR AT154892)

1шт.

2

19M7177

Cap Screw

M6 X 35

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

3

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

4

1015072

Cover

(SUB FOR AT154893)

1шт.

9

21M7277

Screw

M6 X 25

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

10

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

11

8052226

Cover

(SUB FOR AT155166)

1шт.

8058623

Frame

(SUB FOR AT203629)

1шт.

12

3062139

Cover

(SUB FOR AT155696)

1шт.

3071283

Cover

(SUB FOR AT203630)

1шт.

13

19M7700

Cap Screw

M5 X 10

4шт.

12M7064

Lock Washer

5 mm

4шт.

24M7348

Washer

5.500 X 10 X 1 mm

4шт.

15

21M7271

Screw

M5 X 16 (SUB FOR 21M6070)

1шт.

12M7064

Lock Washer

5 mm

1шт.

24M7348

Washer

5.500 X 10 X 1 mm

1шт.

16

4289705

Isolator

(SUB FOR AT200504)

1шт.

17

Rubber Mount

(CTL FROM BULK MATERIAL) ( AT200505 NLA)

2шт.

20

H77698

Tie Band

1шт.
