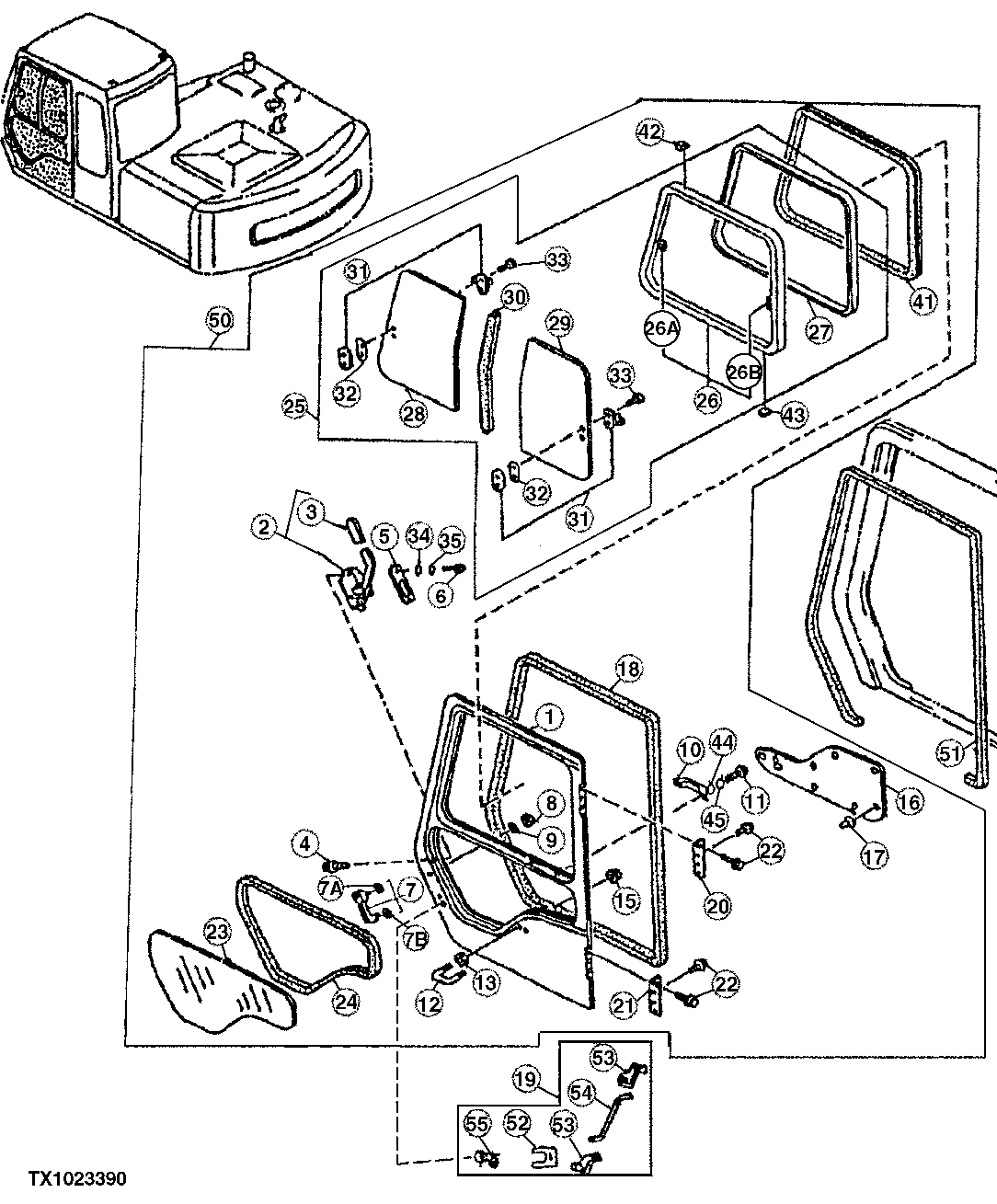

Запчасти John Deere 92ELC 146 - Cab Door 1810 Operator Enclosure

0

4282696

Cab

(SUB FOR AT154356) (NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPON ENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

Door

(NLA)

1шт.

2

4295576

Lock

(SUB FOR AT157063)

1шт.

3

4295577

Cover

(SUB FOR AT157064)

1шт.

4

19M8425

Cap Screw

M6 X 16 (SUB FOR 4320168, AL ONG WITH 24H1287 AND 12M7006)

4шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

4шт.

12M7006

Lock Washer

6 mm

4шт.

5

4295585

Cover

(SUB FOR AT157065)

1шт.

6

19M7372

Cap Screw

M5 X 16

2шт.

7

4295581

Handle

(SUB FOR AT157066)

1шт.

7A

4323455

Packing

(SUB FOR AT164071)

1шт.

7B

4323456

Packing

(SUB FOR AT164072)

1шт.

8

Nut

(SUB FOR 14M7273, THIS APPLICATION ) (SUB FOR AT163959) ( 4321892 NLA)

2шт.

14M7273

Nut

M8

2шт.

12M7065

Lock Washer

8 mm

2шт.

9

Lock Washer

( 12M7065 NLA)

2шт.

10

4204579

Handle

(SUB FOR TH108661)

1шт.

11

19M8425

Cap Screw

M6 X 16

2шт.

12

4304829

Bolt

(SUB FOR AT157067)

1шт.

13

4414857

Nut

(SUB FOR AT157068)

2шт.

15

4414857

Nut

(SUB FOR AT157068)

2шт.

16

4372272

Pad

(SUB FOR AT200589)

1шт.

17

4204607

Clip

(SUB FOR TH108690)

9шт.

18

4295587

Weatherstrip

(SUB FOR AT157070)

1шт.

19

Lock

( 4295588 NLA) Order Individual Components

1шт.

20

4295589

Hinge

(SUB FOR AT157072)

1шт.

21

4295590

Hinge

(SUB FOR AT157073)

1шт.

22

R168831

Cap Screw

(SUB FOR AT157074 OR 4295578)

12шт.

24M7271

Washer

10.500 X 20 X 2 mm

12шт.

23

AT154422

Windowpane

1шт.

24

4289513

Isolator

(SUB FOR AT154423)

1шт.

25

Frame

(NLA)

1шт.

26

4295591

Frame

(SUB FOR AT157075)

1шт.

26A

Catch

(NLA)

1шт.

26B

Catch

(NLA)

1шт.

27

4295606

Molding

(SUB FOR AT157077)

1шт.

28

AT154426

Windowpane

1шт.

29

AT154425

Windowpane

1шт.

30

4295609

Weatherstrip

(SUB FOR AT157078)

1шт.

31

4369653

Lock

(SUB FOR AT157079 AND 4295610)

2шт.

32

4420531

Spacer

(SUB FOR 4295611) (SUB FOR AT157080)

2шт.

33

4219753

Screw

(SUB FOR TH110774)

4шт.

34

12M7064

Lock Washer

5 mm

2шт.

35

24M7348

Washer

5.500 X 10 X 1 mm

2шт.

41

Molding

(MF TH108667 BULK MATERIAL, CTL)

1шт.

42

4204567

Spacer

(SUB FOR TH108647)

3шт.

43

4147896

Spacer

(SUB FOR TH108646)

8шт.

44

12M7006

Lock Washer

6 mm

2шт.

45

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

50

4304828

Door

(SUB FOR AT157055)

1шт.

51

Molding

(MF TH108667 BULK MATERIAL, CTL)

1шт.

52

4372091

Clip

(SUB FOR AT176790) (SUB FOR 4328638)

1шт.

53

4328639

Holder

(SUB FOR AT176795)

2шт.

54

4362997

Link

(SUB FOR AT176793)

1шт.

55

4362135

Lock

(SUB FOR AT176789)

1шт.

AT194969

Key

(SUB FOR AT147803) (H800) Not Illustrated

1шт.
