136 - Travel Lines Cover (012001 - )

Запчасти John Deere 92ELC 136 - Travel Lines Cover (012001 - ) 1740 Frame Installation

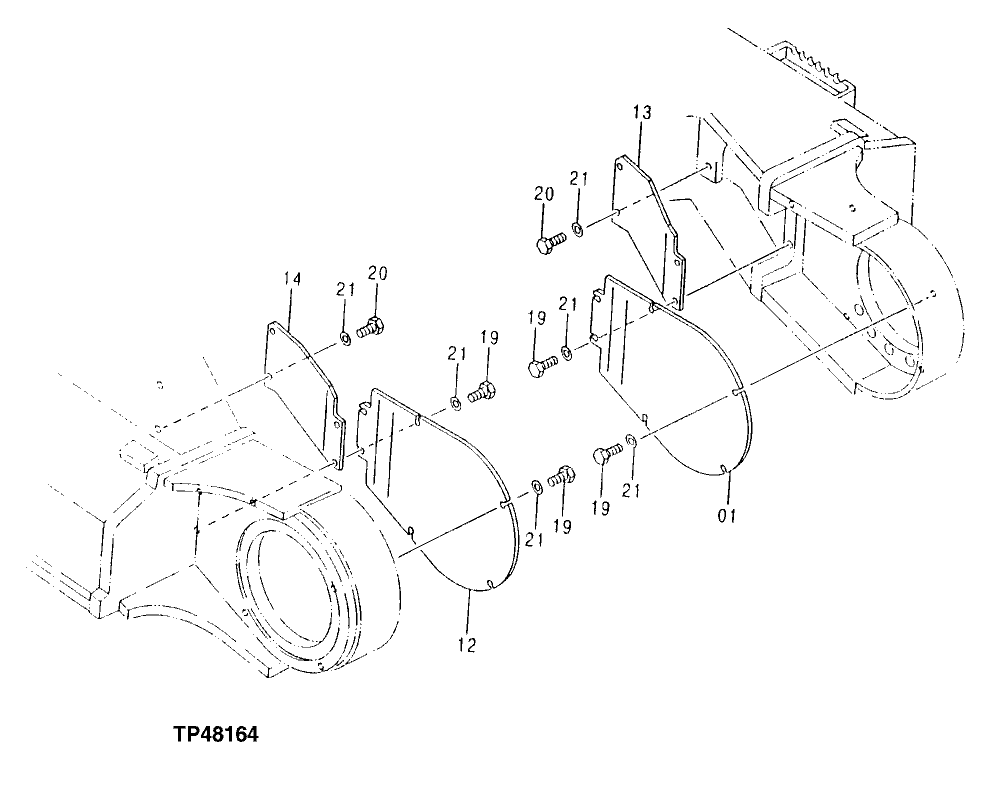

Схема запчастей John Deere 92ELC - 136 - Travel Lines Cover (012001 - ) 1740 Frame Installation
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3075320

Cover

(SUB FOR AT178259)

1шт.

12

3075321

Cover

(SUB FOR AT178260)

1шт.

13

3075547

Cover

(SUB FOR AT178261)

1шт.

14

3075544

Cover

(SUB FOR AT178262)

1шт.

19

19M6332

Cap Screw

M14 X 35

8шт.

20

19M7877

Cap Screw

M14 X 30

8шт.

21

J222014

Washer

(SUB FOR AT200011)

16шт.
