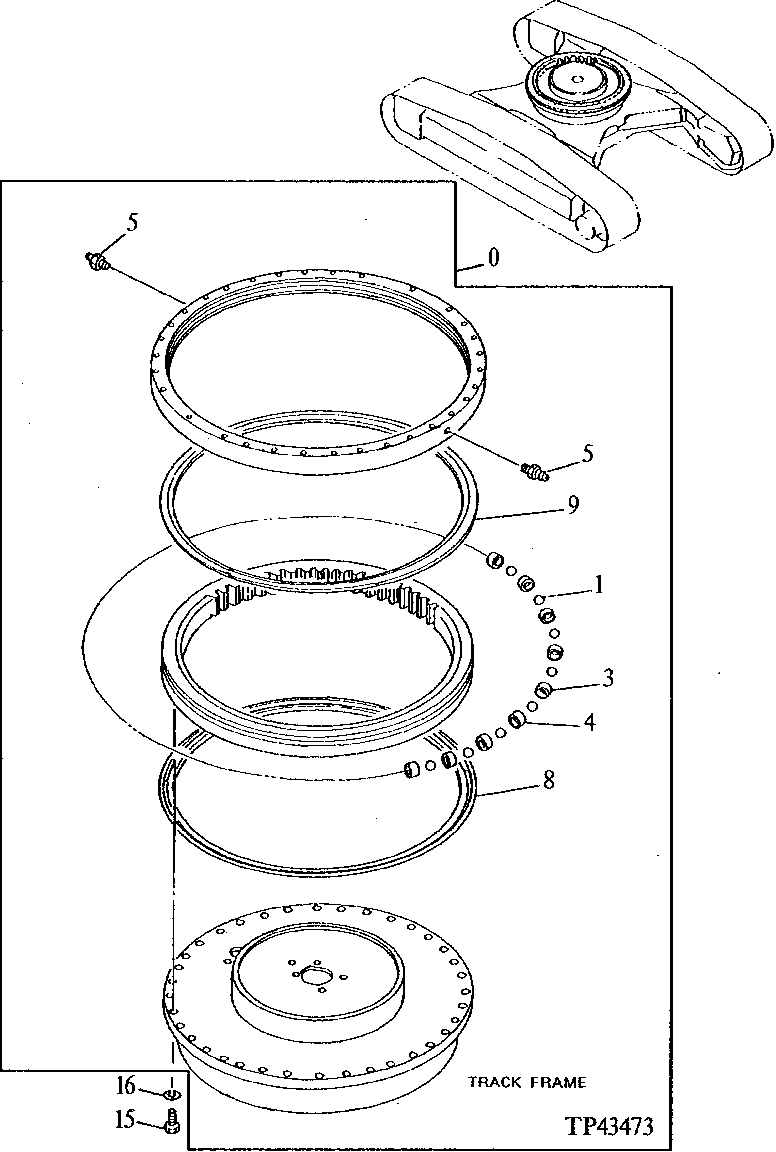

Запчасти John Deere 92ELC 133 - Swing Bearing 1740 Frame Installation

0

9112188EX

Swing Bearing Reman

(SUB FOR AT190775) (REMAN FOR AT201167)

1шт.

1

4355766

Ball

(SUB FOR TH103076 OR AT2 06056) (SUB FOR AT174890)

98шт.

3

4134900

Spacer

(SUB FOR TH102260)

87шт.

4

4134901

Spacer

(SUB FOR TH102261)

11шт.

5

TH100074

Lubrication Fitting

2шт.

8

T203958

Seal

4631753 NLA, (SUB FOR T191211, AT 131484 OR AT131732) (ALSO ORDER TY2 1517 AND AT66866) (SUB FOR 4199645)

1шт.

TY21517

Adhesive

Not Illustrated

1шт.

AT66866

Fluid

Not Illustrated

1шт.

9

T203958

Seal

4631753 NLA, (SUB FOR T191211, AT 131484 OR AT131732) (ALSO ORDER TY2 1517 AND AT66866) (SUB FOR 4199645)

1шт.

TY21517

Adhesive

Not Illustrated

1шт.

AT66866

Fluid

Not Illustrated

1шт.

15

J832475

Bolt

M24 X 75MM, (SUB FOR AT204921, THM122475)

36шт.

16

12H234

Lock Washer

1" (SUB FOR TH103080)

36шт.
