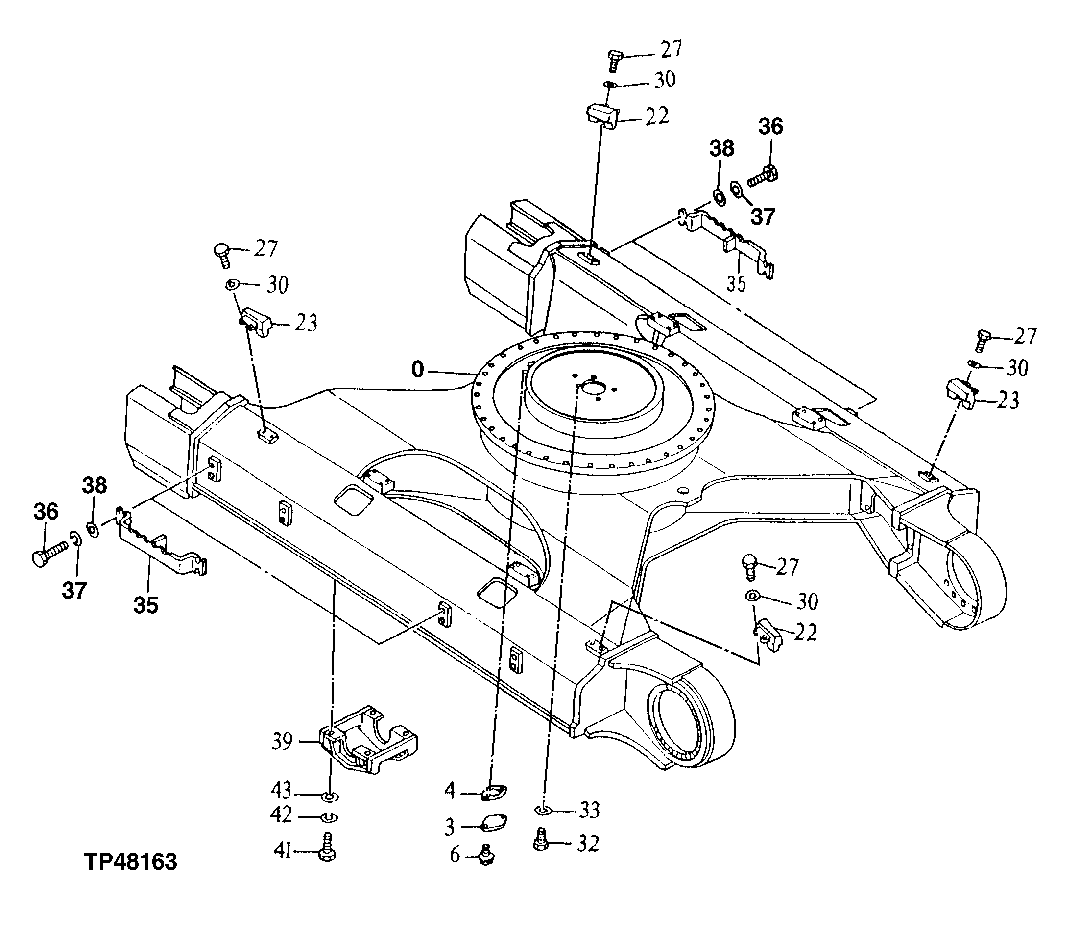

Запчасти John Deere 92ELC 131 - Track Frame (012001 - 012202) 1740 Frame Installation

0

Frame

( AT178258 NLA)

1шт.

3

4128863

Plate

(SUB FOR TH102264)

1шт.

4

4272297

Gasket

(SUB FOR TH110612 AND 4211149)

1шт.

6

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

22

2031046

Stop

(SUB FOR AT154655)

2шт.

23

2031047

Stop

(SUB FOR AT154656)

2шт.

27

19M7877

Cap Screw

M14 X 30

8шт.

30

J222014

Washer

(SUB FOR AT200011)

8шт.

32

19M8017

Cap Screw

M12 X 20

1шт.

33

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

35

9746343

Step

(SUB FOR AT178255)

4шт.

36

19M7489

Cap Screw

M16 X 45

16шт.

37

12H294

Lock Washer

5/8"

16шт.

38

24M7338

Washer

17 X 30 X 3 mm

16шт.

39

AT310427

Bracket

(SUB FOR AT201128, 8049578)

2шт.

41

19M7597

Cap Screw

M20 X 50 (SUB FOR AT201011)

8шт.

42

12M7070

Lock Washer

20 mm

8шт.

43

N231749

Washer

20.620 X 38.100 X 6.350 m m (13/16" X 1-1/2" X 1/4")

8шт.
