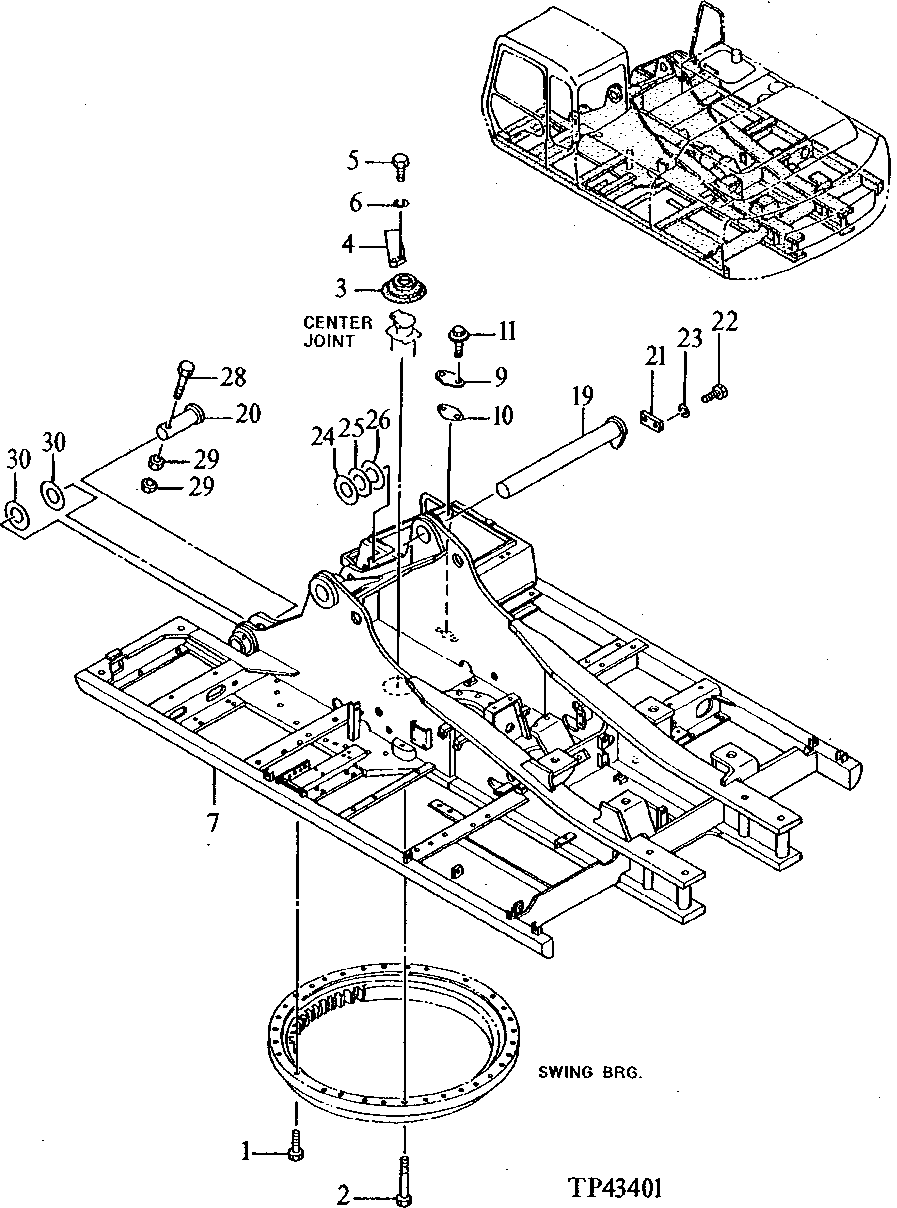

Запчасти John Deere 92ELC 127 - Main Frame 1740 Frame Installation

1

J932403

Bolt

(SUB FOR AT200806)

30шт.

2

19M8419

Cap Screw

M24 X 170

2шт.

3

4428007

Cover

(SUB FOR T138508)

1шт.

4

4274282

Stop

(SUB FOR AT155305)

1шт.

5

19M6332

Cap Screw

M14 X 35

2шт.

6

12H317

Lock Washer

9/16"

2шт.

7

AT201094

Main Frame

Convenience Assembly

1шт.

Main Frame

(NLA)

1шт.

9

4255799

Cover

(SUB FOR AT154929)

1шт.

10

4161735

Gasket

(SUB FOR AT130379)

1шт.

11

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19

AT164645

Pin Fastener

(BOOM ATTACHING)

1шт.

20

3075747R

Pin Fastener

(SUB FOR AT178235, TH103201 OR 3075747)

2шт.

21

4199833

Plate

(SUB FOR TH109401)

1шт.

22

19M7950

Cap Screw

M20 X 45

2шт.

23

12M7070

Lock Washer

20 mm

2шт.

24

4143605

Washer

(SUB FOR TH103206) (3.2)

1шт.

25

4143606

Washer

(SUB FOR TH103207) (2.3)

1шт.

26

4143607

Washer

(SUB FOR TH103208) (1.2)

2шт.

28

19M8100

Cap Screw

M20 X 180

2шт.

29

14M7277

Nut

M20

4шт.

30

4144513

Washer

(SUB FOR TH102423) (1.2)

4шт.
