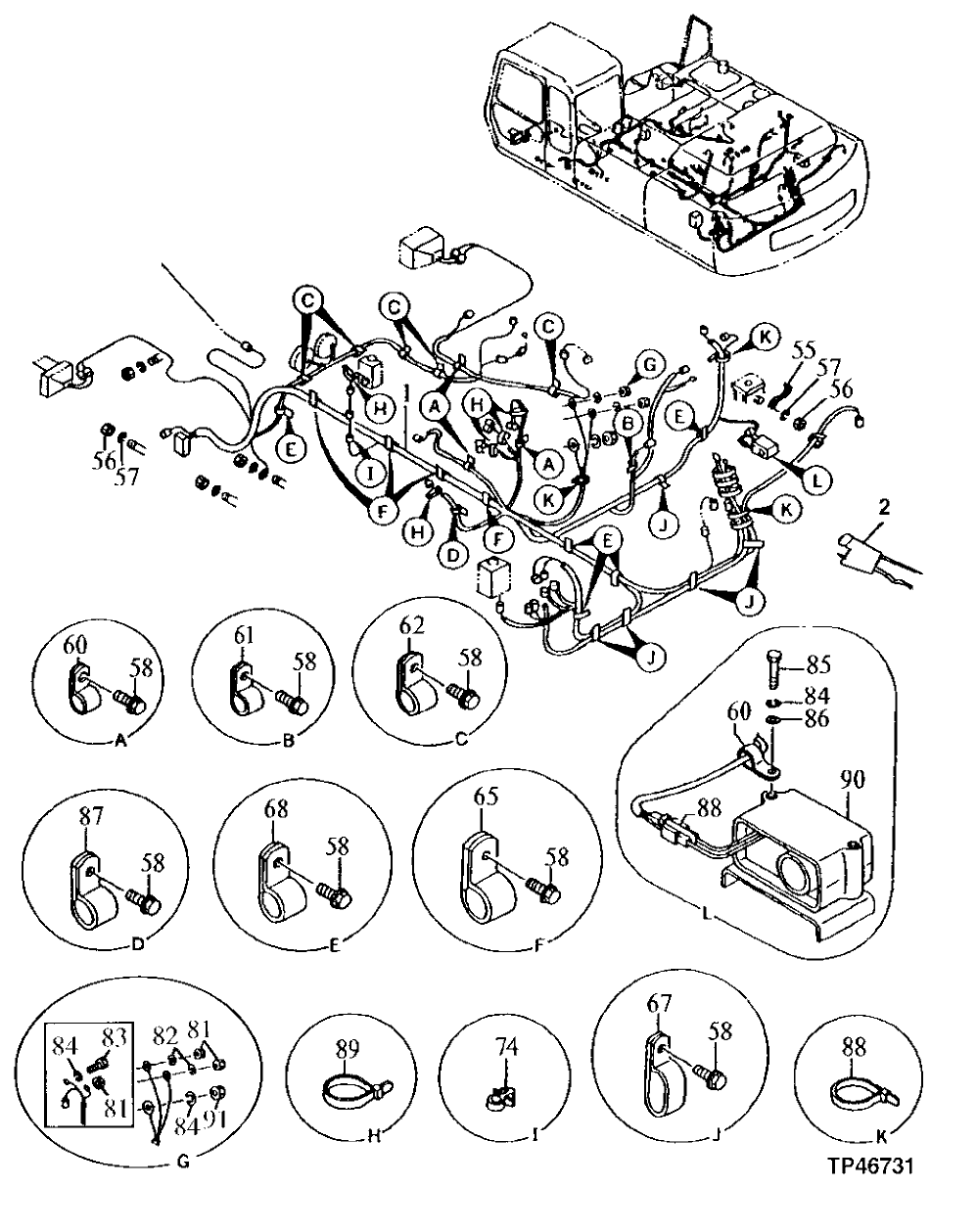

Запчасти John Deere 92ELC 117 - ELECTRIC PARTS ( - 010999) 1674 Wiring Harness And Switches

1

0001544

Wiring Harness

(SUB FOR AT200927) Main

1шт.

0001699

Wiring Harness

(SUB FOR AT167753) Main

1шт.

1A

4192489

Diode

(SUB FOR TH110500)(NOT ILLUSTRATED) ( COMPONENT OF WIRE HARNESS) (SEPARATE D IODES) (1-KEYSWITCH, 1-SWING STOP CUSH ION SOLENOID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT )

5шт.

2

AT172578

Wiring Harness

Diode Used To Protect Against Voltage Spikes

1шт.

55

AT47069

Ground Cable

406.400 mm (16") (SUB FOR AT154993) (GROUND STRAP) (ENGINE FLYWHEEL HOUSING TO GROUND)

1шт.

56

14M7274

Nut

M10

5шт.

57

12M7066

Lock Washer

10 mm

5шт.

58

12M7066

Lock Washer

10 mm

24шт.

19M7938

Cap Screw

M10 X 20

24шт.

60

4190261

Clip

(SUB FOR TH109649)

4шт.

61

AH79175

Clip

(SUB FOR TH108600 OR 4190272)

1шт.

62

4190275

Clamp

(SUB FOR TH108598)

5шт.

65

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

4шт.

67

T32854

Clamp

5шт.

68

R73291

Clamp

(SUB FOR TH108596) (SUB FOR 4190262)

5шт.

74

4218657

Clip

(SUB FOR AT132515)

3шт.

81

4045245

Nut

(SUB FOR AT131399)

1шт.

14M7297

Nut

M5

2шт.

82

12M7064

Lock Washer

5 mm

2шт.

83

19M7932

Cap Screw

M8 X 16

1шт.

84

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

85

19M8456

Cap Screw

M8 X 100

2шт.

86

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

87

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

3шт.

88

H77698

Tie Band

17шт.

89

H77698

Tie Band

4шт.

90

AT301074

Alarm System

(SUB FOR AT154966, 4283028) Travel

1шт.

91

14M7426

Lock Nut

M8

1шт.
