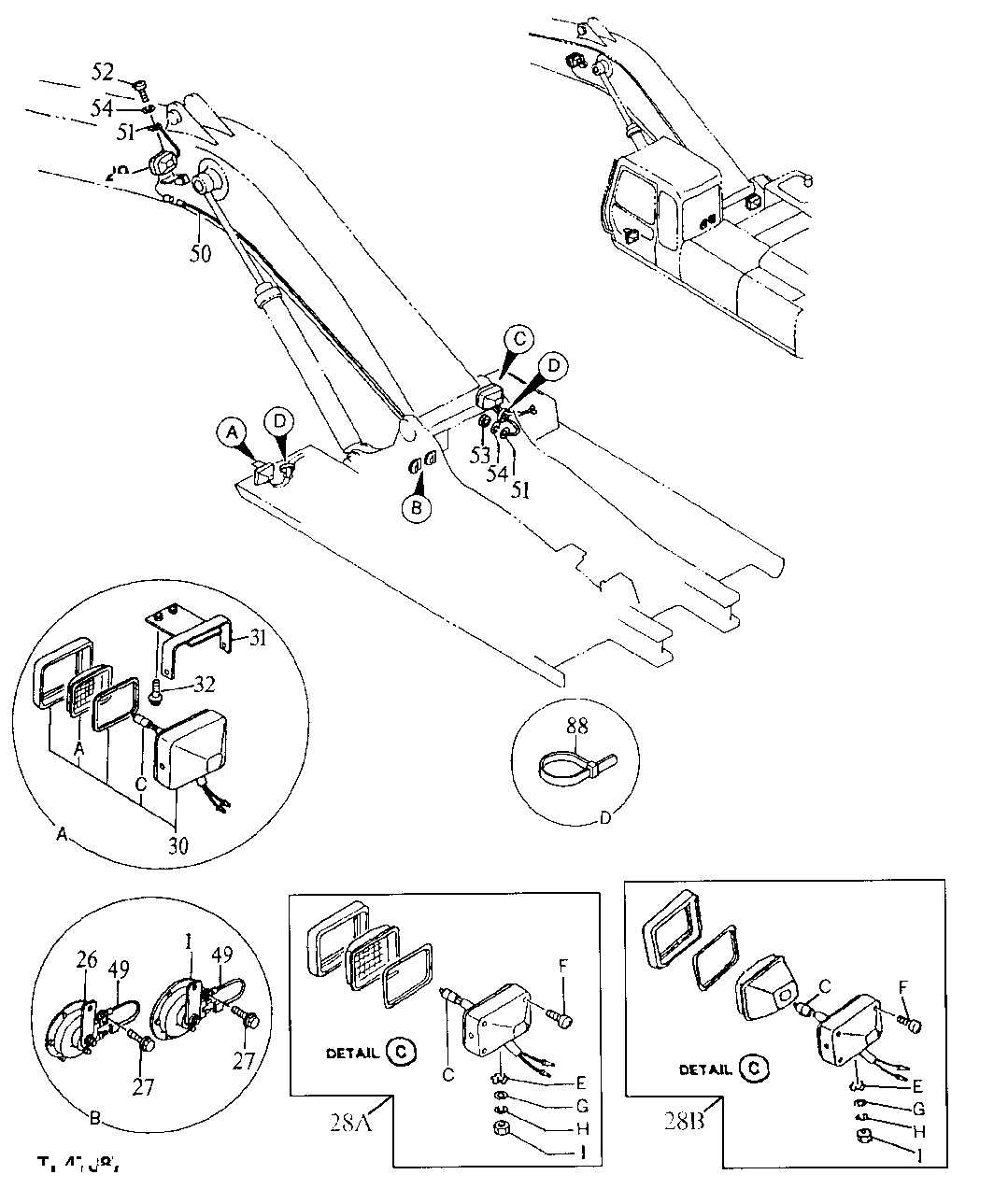

Запчасти John Deere 92ELC 115 - Front Work Lights 1674 Wiring Harness And Switches

1

AT64237

Horn

1шт.

26

AT64237

Horn

1шт.

27

19M7407

Cap Screw

M8 X 25

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

28A

4326800

Lamp

(WORK) ( AT159146 NLA)

2шт.

28B

4326800

Lamp

(SUB FOR AT176424) Work

2шт.

28C

AT135758

Bulb

(SUB FOR AT159149) Use If Available

1шт.

AT135758

Bulb

(SUB FOR AT159149 OR AT154990)

1шт.

28E

4307026

Washer

(SUB FOR T144361)

1шт.

28F

37H19

Screw

(SUB FOR T144362 OR 4307027)

1шт.

28G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

28H

12H317

Lock Washer

9/16"

1шт.

28I

14M7345

Nut

M14 (SUB FOR J952014) (SUB FOR TH103791)

1шт.

29

4326800

Lamp

(SUB FOR AT176424, THIS APPLICATION) Boom

1шт.

30

4274478

Headlight

(SUB FOR AT154323) Headlight

1шт.

30A

4285646

Lens

(SUB FOR AT154988)

1шт.

30C

AT135758

Bulb

(SUB FOR AT154990)

1шт.

31

8051250

Bracket

(SUB FOR AT154506)

1шт.

8061439

Bracket

(SUB FOR AT203634)

1шт.

32

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

49

4254603

Wiring Harness

(HORN TO GROUND) ( AT154213 NLA)

2шт.

50

4277504

Wiring Harness

(SUB FOR AT201021) Boom Light

1шт.

51

4254604

Wiring Harness

(SUB FOR AT154214) (GROUND TO LIGHT)

2шт.

52

21M7285

Screw

M6 X 12

1шт.

53

14M7272

Nut

M6

1шт.

54

12M7006

Lock Washer

6 mm

2шт.

88

H77698

Tie Band

2шт.
