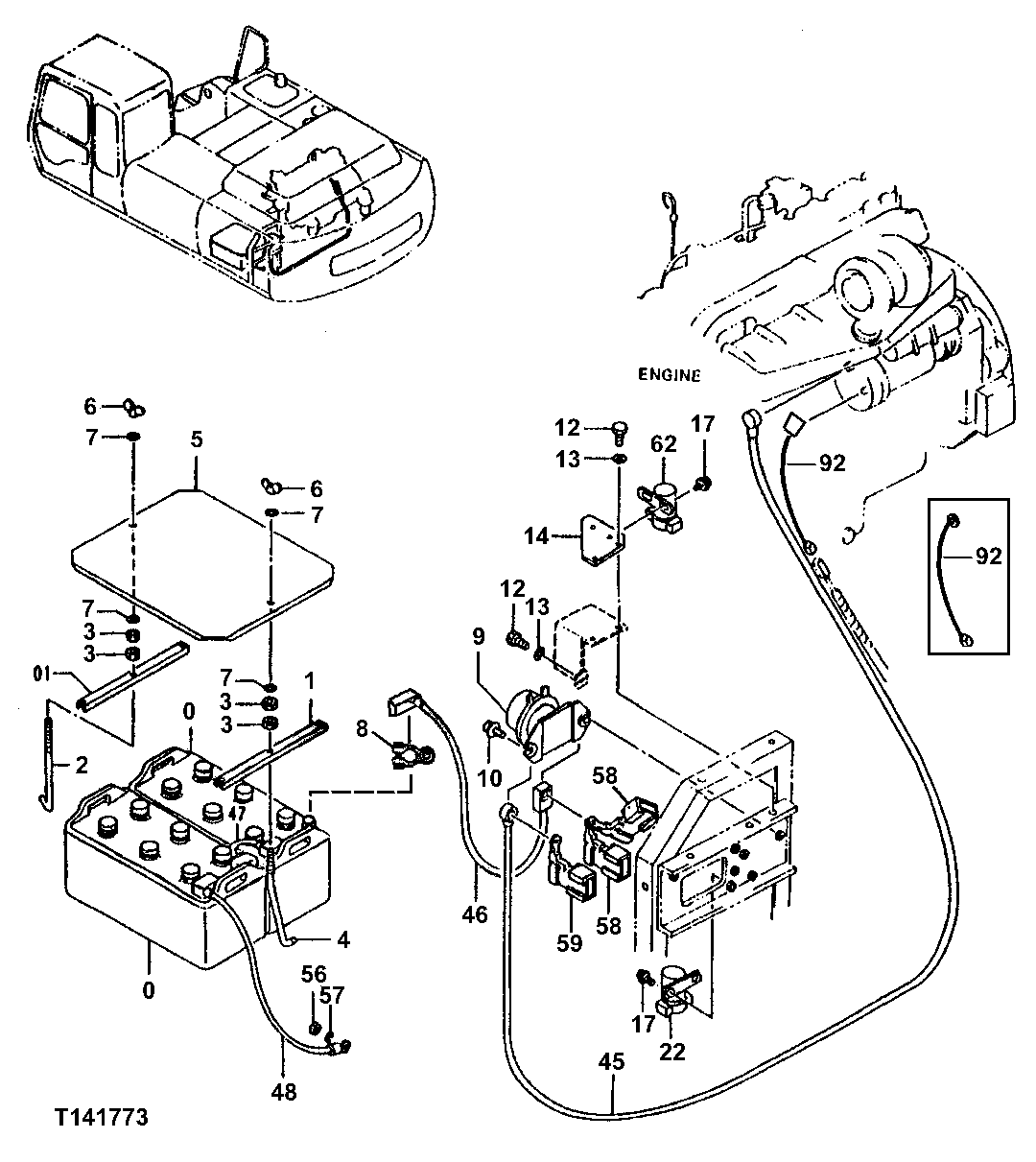

Запчасти John Deere 92ELC 114 - Battery and Cables (011000 - ) 1674 Wiring Harness And Switches

0

TY23020

Dry Charged Battery

12V, SUB FOR TY21754, OR TY21709, THIS APPLICATION

2шт.

1

4145156

Holder

SUB FOR TH102147

2шт.

2

4257034

Hook Bolt

SUB FOR AT155273

1шт.

3

14M7274

Nut

M10

4шт.

4

4284450

Hook Bolt

SUB FOR AT155343

1шт.

5

8052107

Cover

SUB FOR AT155569

1шт.

6

14M7025

Wing Nut

M10

2шт.

7

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

8

AT219485

Clamp

Battery Terminal Clamp

4шт.

9

8943795431

Relay

SUB FOR 4255762 AND AT154229 Battery

1шт.

10

21M7288

Screw

M6 X 10

2шт.

12

19M7932

Cap Screw

M8 X 16

3шт.

13

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

14

9738564

Bracket

SUB FOR AT204998

1шт.

17

19M7077

Cap Screw

M6 X 20

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

22

AT145341

Relay

Starter ALSO REQUIRES (2) 14M7165

1шт.

14M7165

Lock Nut

M6

2шт.

45

4301973

Wiring Harness

SUB FOR AT201040 Battery Relay To Starter

1шт.

46

4302718

Wiring Harness

SUB FOR AT201041 Battery To Battery Relay

1шт.

47

4302719

Wiring Harness

SUB FOR AT201042 Battery To Battery

1шт.

48

AR45925

Battery Cable

Battery Ground Wire

1шт.

56

14M7274

Nut

M10

1шт.

57

12M7066

Lock Washer

10 mm

1шт.

58

4270554

Fuse

40A, SUB FOR AT160982, FUSEABLE LINK FOR BATTERY AND FUEL SHUT OFF Green

2шт.

59

4270555

Fuse

50A, SUB FOR AT160983, F USEABLE LINK FOR STARTER

1шт.

62

AT145341

Relay

FUEL SHUT OFF, ALSO REQUIRES (2) 14M7165

1шт.

14M7165

Lock Nut

M6

2шт.

92

4448296

Wiring Harness

SUB FOR AT155617 Starting Aid

1шт.
