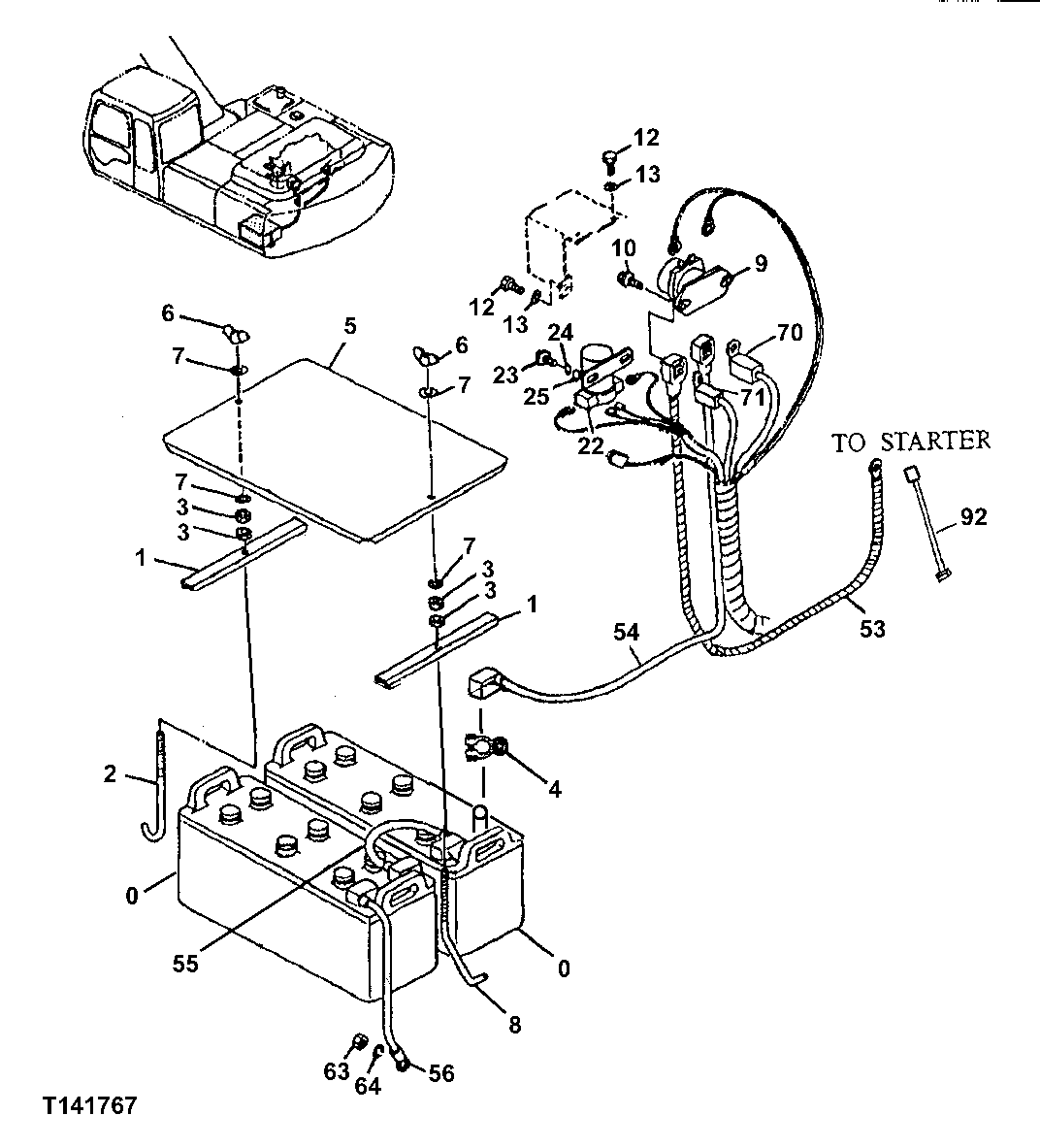

Запчасти John Deere 92ELC 113 - Battery, Electrical System ( - 010999) 1674 Wiring Harness And Switches

0

TY23020

Dry Charged Battery

SUB FOR TY21754, OR TY21709, THIS APPLICATION, 12 VOLT, AT182297 NLA

2шт.

1

4145156

Holder

SUB FOR TH102147

2шт.

2

4257034

Hook Bolt

SUB FOR AT155273

1шт.

3

14M7274

Nut

M10

4шт.

4

AT219485

Clamp

BATTERY TERMINAL CLAMPS

4шт.

5

8052107

Cover

SUB FOR AT155569

1шт.

6

14M7025

Wing Nut

M10

2шт.

7

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

8

4284450

Hook Bolt

SUB FOR AT155343

1шт.

9

8943795431

Relay

SUB FOR 4255762 AND AT154229 Battery

1шт.

10

21M7288

Screw

M6 X 10

2шт.

12

19M7932

Cap Screw

M8 X 16

3шт.

13

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

22

AT145341

Relay

Starter ALSO REQUIRES (2) 14M7165

1шт.

14M7165

Lock Nut

M6

2шт.

23

19M7077

Cap Screw

M6 X 20

2шт.

24

12M7006

Lock Washer

6 mm

2шт.

25

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

53

4301973

Wiring Harness

SUB FOR AT201040, BATTERY RELAY TO STARTER

1шт.

54

4302718

Wiring Harness

SUB FOR AT201041 Battery To Battery Relay

1шт.

55

4302719

Wiring Harness

SUB FOR AT201042 Battery To Battery

1шт.

56

AR45925

Battery Cable

Battery To Ground

1шт.

63

14M7274

Nut

M10

1шт.

64

12M7066

Lock Washer

10 mm

1шт.

70

4270554

Fuse

40A, SUB FOR AT160982, FUSE ABLE LINK FOR BATTERY Green

1шт.

71

4270555

Fuse

50A, SUB FOR AT160983, F USEABLE LINK FOR STARTER

1шт.

4287670

Fuse

60A, SUB FOR AT200499, FUSE ABLE LINK FOR STARTER Yellow

1шт.

92

4448296

Wiring Harness

SUB FOR AT155617 Starting Aid

1шт.
