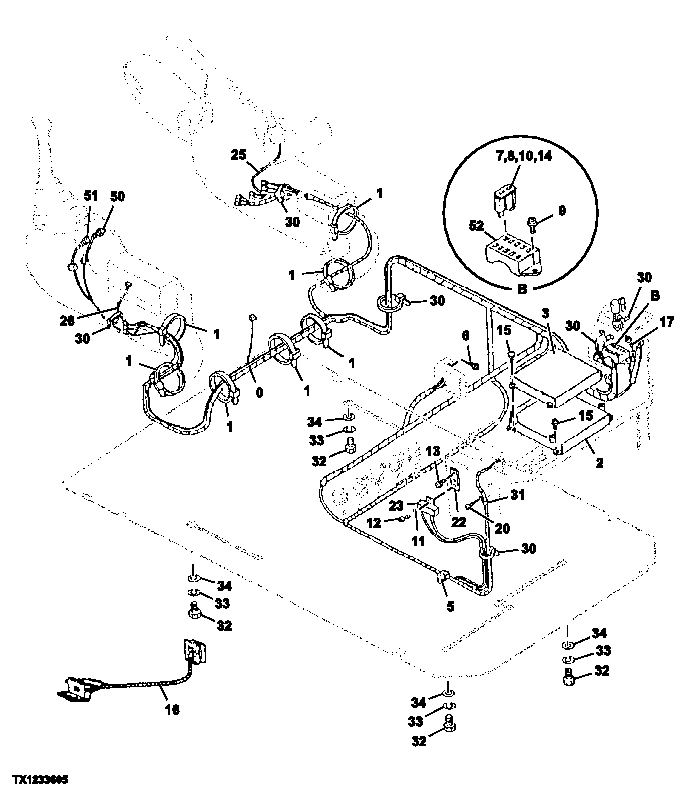

Запчасти John Deere 92ELC 110 - Cab Console Wiring Harness (011000 - ) 1674 Wiring Harness And Switches

0

0001692

Wiring Harness

(SUB FOR AT202580)

1шт.

0A

4288109

Diode

(SUB FOR (12) AT174465) (3 A MP - YELLOW) Not Illustrated

1шт.

1

H77698

Tie Band

7шт.

2

9138455

Pump/Valve Controller

(SUB FOR AT202579) (PILOT VALVE CONTROL)

1шт.

3

9138454

Engine Controller

(SUB FOR AT202578) Engine Control

1шт.

9157753

Engine Controller

(SUB FOR AT178250) (ENGINE CONTRO L) (FOR USE WITH EMISSION ENGINE)

1шт.

5

4254600

Clip

(SUB FOR AT154928)

1шт.

6

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

7

57M7329

Fuse

Black (VALVE CONTROL UNIT, VALVE BACK-UP, ENGINE CONTROL UNIT, SWITCH BACK-UP, RADIO)

5шт.

8

57M7125

Fuse

Tan (SOLENOID, SOLENOID, SWITC H BOX, ENGINE CONTROL MOTOR, DO ME LIGHT, MOTION ALARM, WIPER)

7шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

10

57M7120

Fuse

Yellow (START AID, WORK LIGHTS, HEATER)

3шт.

11

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

1шт.

12

4204811

Screw

(SUB FOR AT155253)

1шт.

13

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

14

57M7121

Fuse

Red (POWER ON, OPTION, LIGHTER, HORN)

4шт.

15

19M8425

Cap Screw

M6 X 16

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

16

2035206

Wiring Harness

(SUB FOR AT158373) (9 FOOT EXTENSION) To Cab Connector

1шт.

2036643

Wiring Harness

(SUB FOR AT161804) (15 FOOT EXTENSION) To Cab Connector

1шт.

17

4284198

Wiring Harness

(SUB FOR AT155341) (HEATER SUB)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

22

4316851

Plate

(SUB FOR AT202450)

1шт.

23

4191772

Resistor

(SUB FOR AT155250) Alternator Exitation

1шт.

24

19M8425

Cap Screw

M6 X 16 (NOT ILLUSTRATED AT THIS TIME)

1шт.

12M7006

Lock Washer

6 mm (NOT ILLUSTRATED AT THIS TIME)

1шт.

24M7393

Shim

(NOT ILLUSTRATED AT THIS TIME)

1шт.

25

4277927

Wiring Harness

(SUB FOR AT154955) (STARTER SWITCH SUB)

1шт.

26

4277941

Wiring Harness

(SUB FOR AT154956) (RADIO SUB)

1шт.

30

H77698

Tie Band

6шт.

31

4000859

Clip

(SUB FOR AT154910)

1шт.

32

19M8324

Cap Screw

M10 X 16

4шт.

33

12M7066

Lock Washer

10 mm

4шт.

34

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

49

4344989

Clip

(SUB FOR AT203632) (NOT ILLUSTRATED AT THIS TIME)

1шт.

50

4322387

Switch

(SUB FOR AT161978) (MOTION ALARM)

1шт.

51

4322389

Switch

(SUB FOR AT161977) Starting Aid

1шт.

52

4421250

Fuse Box

1шт.
