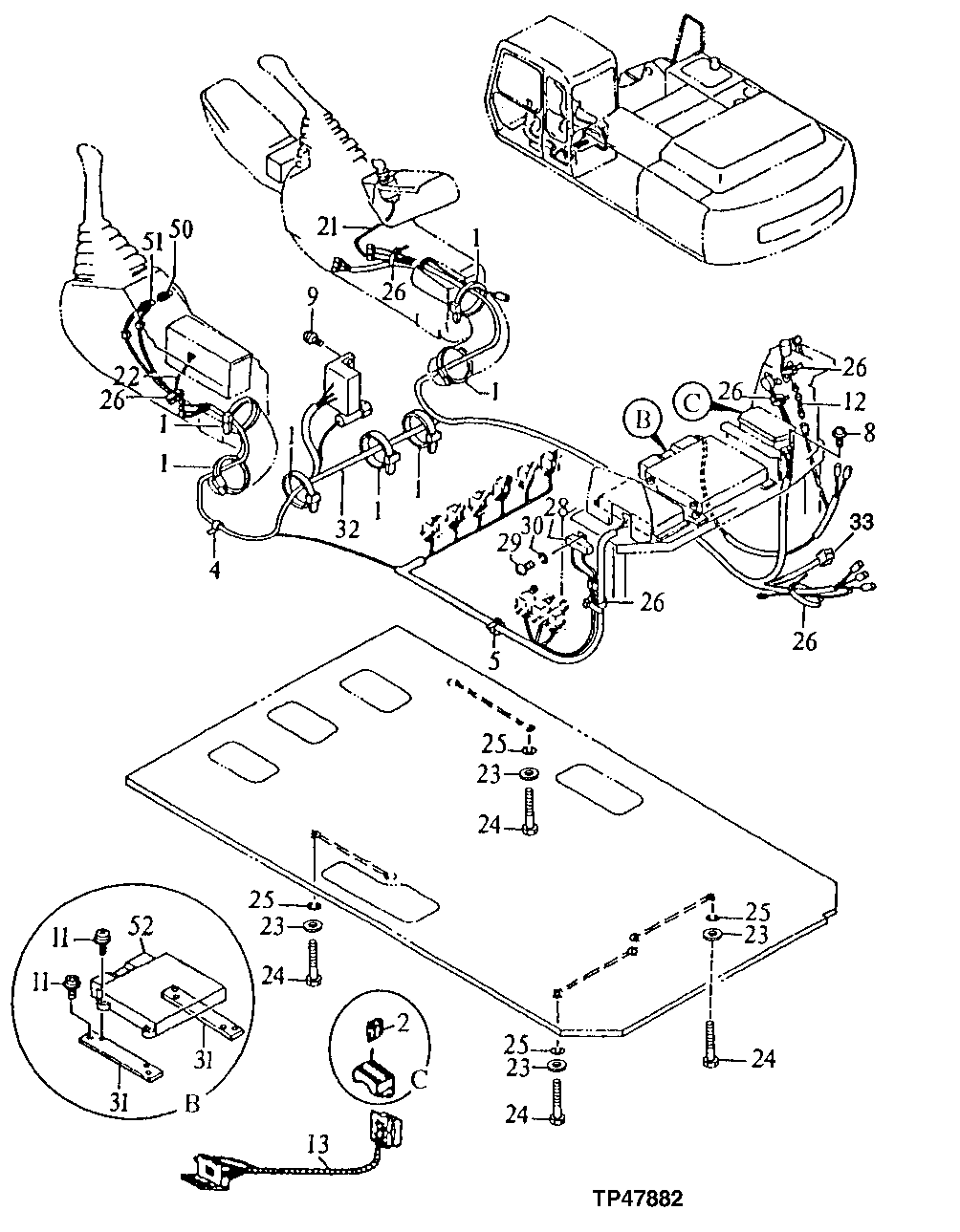

Запчасти John Deere 92ELC 109 - Hydraulic System - Joystick ( - 010999) 1674 Wiring Harness And Switches

1

H77698

Tie Band

7шт.

2

57M7329

Fuse

(SWITCH BACK-UP, ENGINE C ONTROL UNIT, RADIO) Black

3шт.

57M7125

Fuse

(ENGINE CONTROL MOTOR, SWITCH BOX, SOLEN OID, WIPER, TRAVEL ALARM, DOME LIGHT) Tan

6шт.

57M7121

Fuse

(POWER ON, HORN, LIGHTER, SPARE FUSE) Red

4шт.

57M7120

Fuse

(LIGHTS, HEATER, START AID) Yellow

3шт.

4

4190275

Clamp

(SUB FOR TH108598)

1шт.

5

4254600

Clip

(SUB FOR AT154928)

1шт.

8

19M7077

Cap Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

9

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

11

19M8425

Cap Screw

M6 X 16

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

12

4284198

Wiring Harness

(SUB FOR AT155341)(HEATER)

1шт.

13

2035206

Wiring Harness

(SUB FOR AT158373) (9 FOOT EXTENSION) To Cab Connector

1шт.

2036643

Wiring Harness

(SUB FOR AT161804) (15 FOOT EXTENSION) To Cab Connector

1шт.

21

4277927

Wiring Harness

(SUB FOR AT154955) Starter Switch

1шт.

22

4277941

Wiring Harness

(SUB FOR AT154956) Radio

1шт.

23

12M7066

Lock Washer

10 mm

4шт.

24

19M8324

Cap Screw

M10 X 16

4шт.

25

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

26

H77698

Tie Band

6шт.

28

4191772

Resistor

(SUB FOR AT155250) Alternator Exitation

1шт.

29

4204811

Screw

(SUB FOR AT155253)

1шт.

30

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

1шт.

31

4284380

Bracket

(SUB FOR AT200489)

2шт.

32

0001545

Wiring Harness

(SUB FOR AT200928)

1шт.

4192489

Diode

(SUB FOR TH110500) Not Illustrated

3шт.

33

4372645

Resistor

(SUB FOR AT176227)

1шт.

50

4322387

Switch

(SUB FOR AT161978) (MOTION ALARM)

1шт.

51

4322389

Switch

(SUB FOR AT161977) Start Aid

1шт.

52

9125176

Electronic Control Unit

(SUB FOR AT201197) (ENGINE PUMP CONTROL)

1шт.
