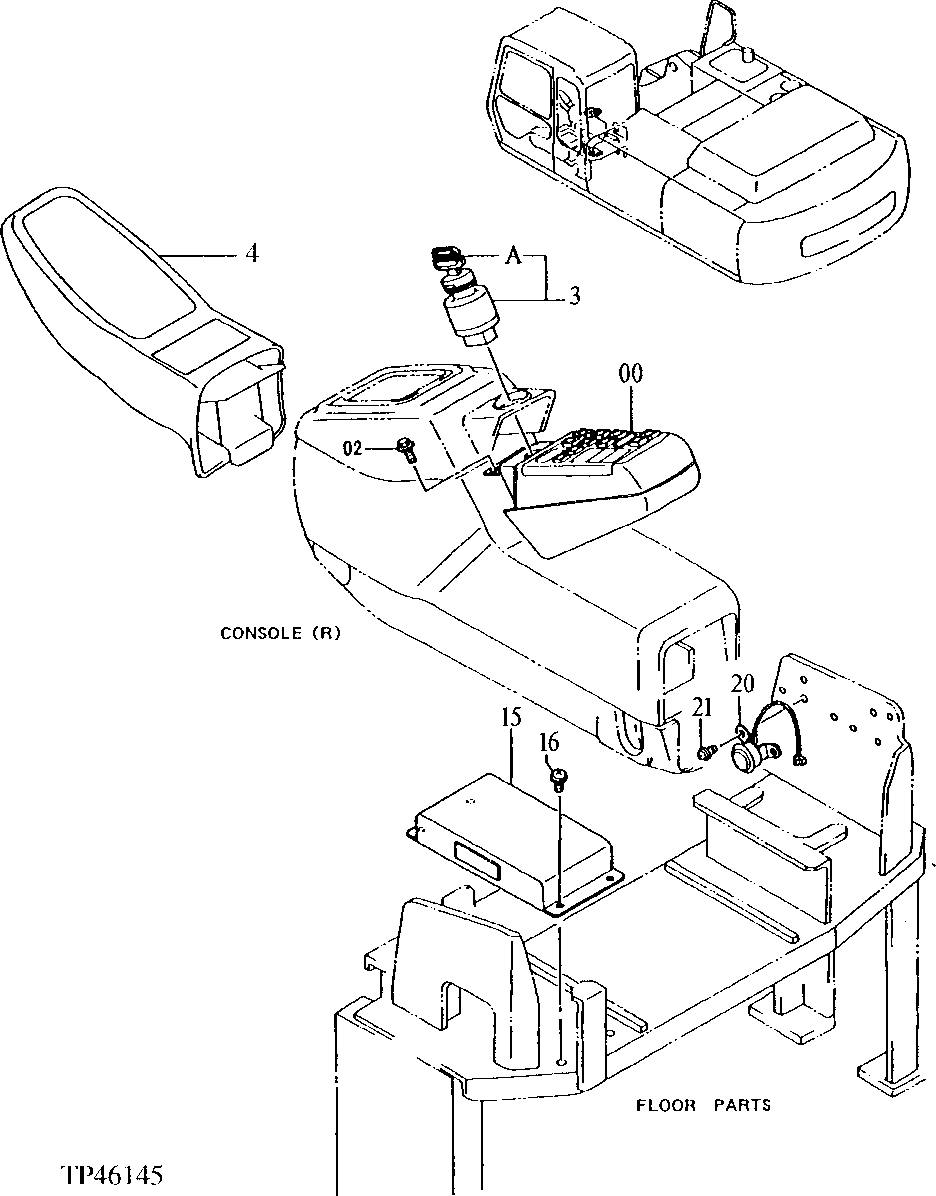

Запчасти John Deere 92ELC 107 - Cab Console 1674 Wiring Harness And Switches

0

Box

(SUB AT169104) (SWITCH) ( AT200460 NLA)

1шт.

4331397

Box

(SUB FOR AT169104) Switch

1шт.

4323698

Box

(SUB FOR AT202325) Switch

1шт.

2

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

3

4477373

Switch

(SUB FOR AT154992) Ignition Switch

1шт.

3A

AT194969

Key

(SUB FOR AT147803) Set of 2

1шт.

4

4282697

Gauge

(SUB FOR AT154965)

1шт.

15

4688258

Control

(SUB FOR AT154919) (SUB FOR AT169088)

1шт.

16

J900614

Bolt

(SUB FOR TH104056)

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

20

4258403

Audible Warning Alarm

(SUB FOR AT154934)

1шт.

21

19M7372

Cap Screw

M5 X 16

2шт.

12M7064

Lock Washer

5 mm

2шт.

24M7348

Washer

5.500 X 10 X 1 mm

2шт.
