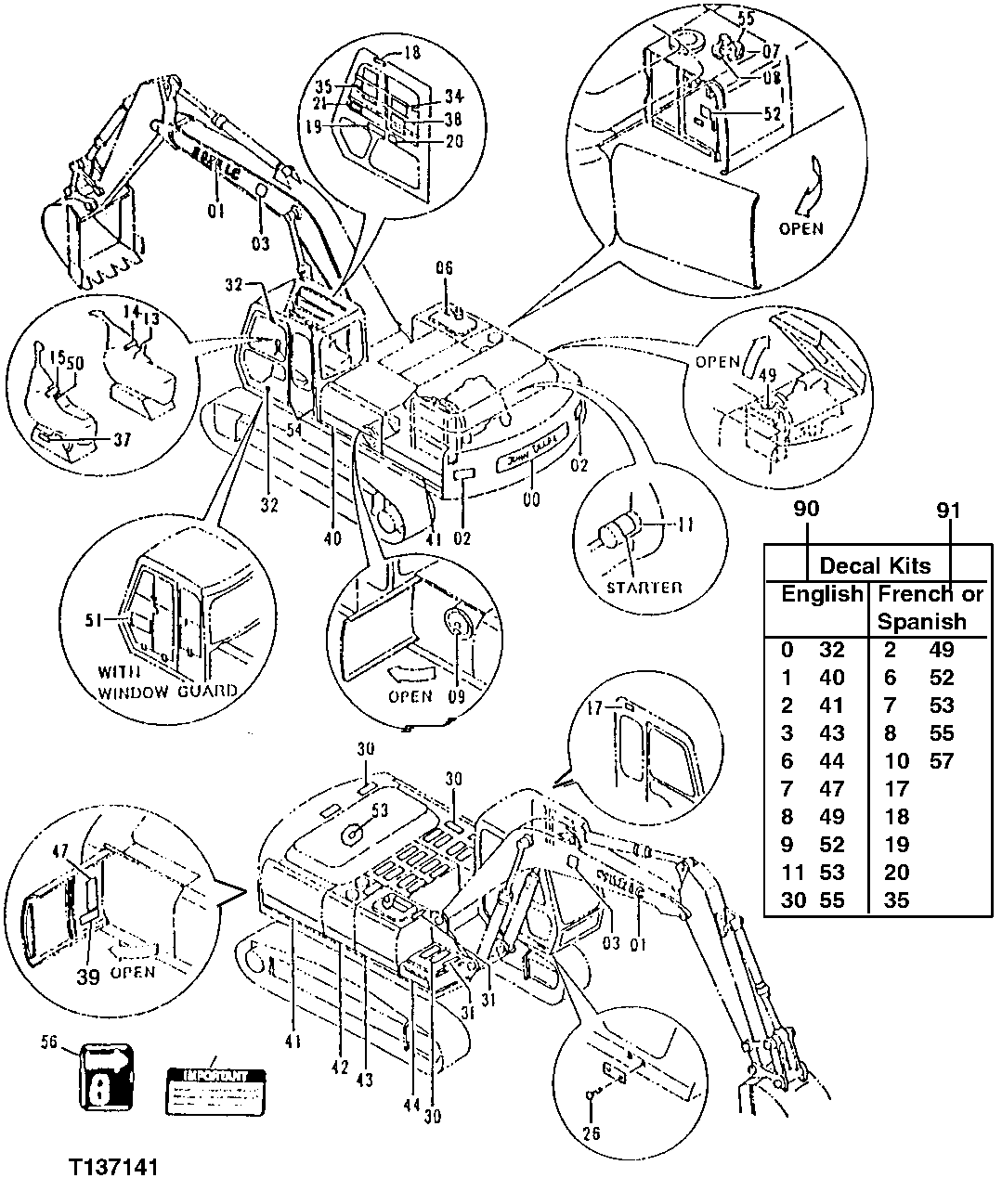

Запчасти John Deere 92ELC 98 - Labels and Decals (011000 - ) 1320 Vehicle Finish & Trim

35

T146110

Label

Lift

1шт.

T153645

Label

(K2) Lift Capacity French

1шт.

T153636

Label

(K3) Lift Capacity Spanish

1шт.

37

4299059

Label

(SUB FOR T138886) Hydraulic Lockout

1шт.

38

T153672

Label

Long Front Operation

1шт.

T153708

Label

Long Front Operation French

1шт.

T153709

Label

Long Front Operation Spanish

1шт.

39

T153673

Label

Long Front Periodic Maintenance

1шт.

T153710

Label

Long Front Periodic Maintenance French

1шт.

T153711

Label

Long Front Periodic Maintenance Spanish

1шт.

40

T146679

Label

(K) (SUB FOR T146532) Joh n Deere Stripe - Left Side

1шт.

41

T146680

Label

(K) (STRIPE - LEFT AND RIGHT SIDE)

2шт.

42

T146527

Label

(SUB FOR T146682) (JOHN - STRIPE LEFT SIDE)

1шт.

43

T147098

Label

(K) (SUB FOR T146683) Deere Stripe - Left Side

1шт.

44

T146684

Label

(K) Strobe Right Side

1шт.

47

T152074

Label

(K) (MAINTENACE CHART) (ENGINE SERIAL NUMBER)

1шт.

T159723

Label

(K) (SUB FOR T159095) (MAINTENA NCE CHART) (ENGINE SERIAL NUMBER)

1шт.

49

T146671

Safety Sign

(K) Caution - Radiator Cap

1шт.

T153424

Label

(K2) Caution - Radiator Cap French

1шт.

T153396

Safety Sign

(K3) Caution - Radiator Cap Spanish

1шт.

50

4288971

Label

(SUB FOR AT155729) Eth er Aid / Motion Cancel

1шт.

51

AT152168

Label

(VANDAL COVER LOCATIONS)

1шт.

52

T149983

Label

(K) Oil Level Check (LOCATED TO LEFT OF H YDRAULIC OIL SIGHT LEVEL ON HYDRAULIC TANK)

1шт.

T153431

Label

(K2) Oil Level Check French

1шт.

T153415

Label

(K3) Oil Level Check Spanish

1шт.

53

T152657

Safety Sign

(K) Radiator Coolant

1шт.

T153621

Label

(K2) Radiator Coolant French

1шт.

T153619

Label

(K3) Radiator Coolant Spanish

1шт.

54

4295579

Tape

(SUB FOR AT166677) Black

1шт.

55

T147009

Label

(K) Caution - Reservoir Cover

1шт.

T153467

Label

(K2) Caution - Reservoir Cover French

1шт.

T153490

Label

(K3) Caution - Reservoir Cover Spanish

1шт.

56

4289908

Label

(SUB FOR AT155731) (CAB ROOF DOOR ARROW)

1шт.

57

T153574

Label

(K2) Fuse Box Cover French Not Illustrated

1шт.

T153564

Label

(K3) Fuse Box Cover Spanish Not Illustrated

1шт.

58

Safety Sign

Avoid Tip Over Decal French N ot Illustrated ( T153540 NLA)

1шт.

Safety Sign

Avoid Tip Over Decal Spanish Not Illustrated ( T153542 NLA)

1шт.

90

AT169426

Label Kit

(INCLUDES ALL (K) PARTS) (REPAINT) (ALSO ORDER AT166677 TAPE ASSEMBLY)

1шт.

91

AT170075

Label Kit

(INCLUDES ALL (K) PARTS) French (DI SCARD UNUSED DECALS) ( AT170075 NLA)

1шт.

AT170074

Label Kit

(INCLUDES ALL (K) PARTS) Spa nish (DISCARD UNUSED DECALS)

1шт.
