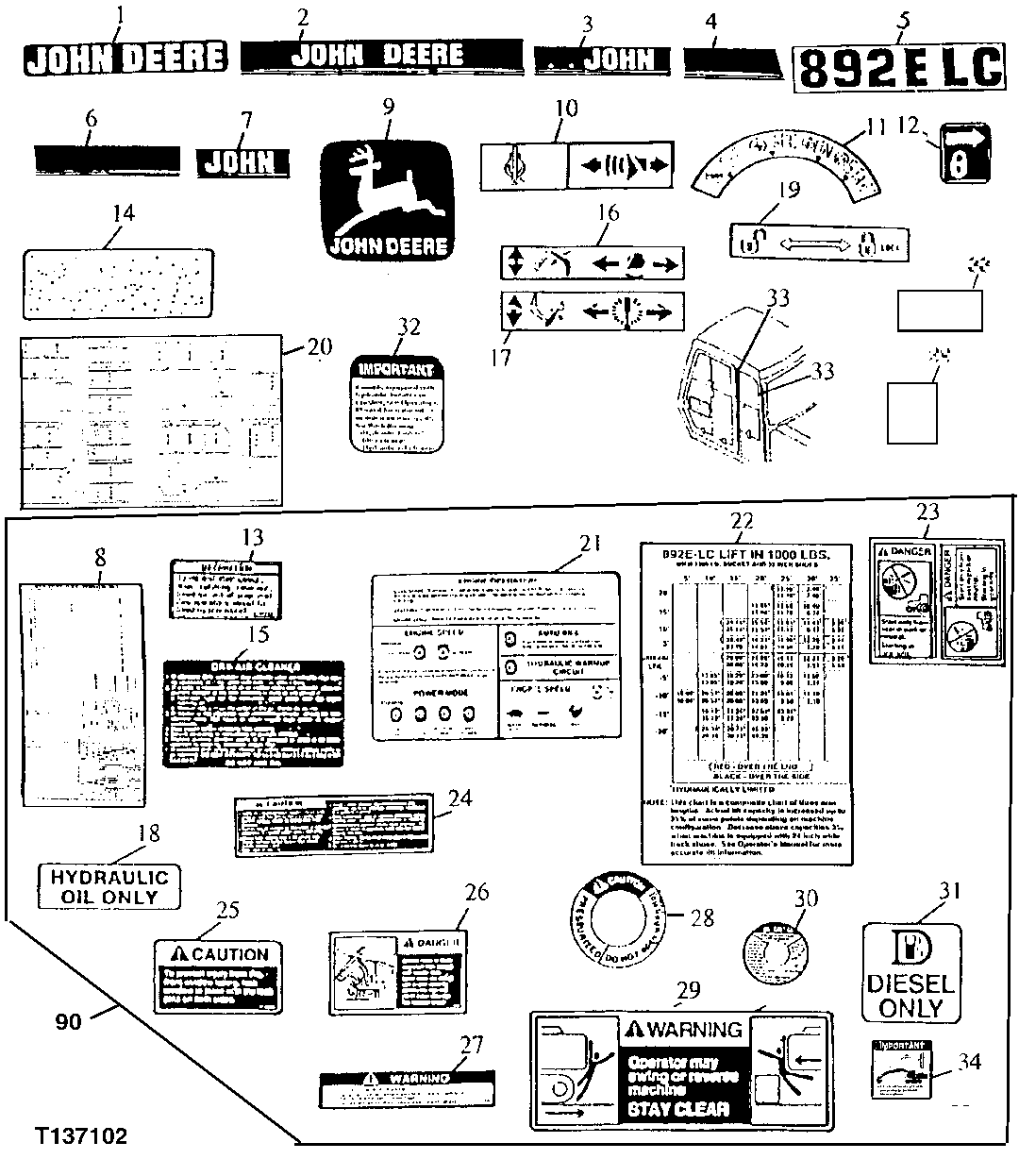

Запчасти John Deere 92ELC 95 - Labels and Decals ( - 010999) 1320 Vehicle Finish & Trim

1

T146526

Label

Counterweight John Deere

1шт.

2

T146679

Label

(SUB FOR T146532) (JOHN DEERE STRIPE LEFT SIDE)

1шт.

3

T147098

Label

(SUB FOR T146683) (DEE RE - STRIPE LEFT SIDE)

1шт.

4

T146684

Label

(STROBE RIGHT SIDE)

1шт.

5

T146685

Label

Model Designation

2шт.

6

T146680

Label

(STRIPE - LEFT AND RIGHT SIDE)

2шт.

7

T146527

Label

(SUB FOR T146682) (JOHN - STRIPE LEFT SIDE)

1шт.

8

T145155

Label

Periodic Maintenance Chart

1шт.

T153644

Label

(K2) Periodic Maintenance Chart French

1шт.

T153635

Label

(K3) Periodic Maintenance Chart Spanish

1шт.

9

JD5628

Label

Leaping Deer

2шт.

10

4288971

Label

(SUB FOR AT155729) Eth er Aid / Motion Cancel

1шт.

11

4264805

Label

(SUB FOR AT155730) Ignition Key Switch

1шт.

12

4289908

Label

(SUB FOR AT155731) (CAB ROOF DOOR ARROW)

1шт.

13

P63448

Label

(SUB FOR AT155733) Pump Bleed Information

1шт.

T114803

Label

(K2) Pump Bleed Information French

1шт.

T153403

Label

(K3) Pump Bleed Information Spanish

1шт.

14

H21259

Mat

Operator's Deck Cleat

20шт.

15

R56902

Label

Dry Air Cleaner

1шт.

CD14148

Label

(K2) Dry Air Cleaner French

1шт.

R56903

Label

(K3) Dry Air Cleaner

1шт.

16

TH103404

Label

(RIGHT CONTROL)

1шт.

17

TH103405

Label

(LEFT CONTROL)

1шт.

18

T101942

Label

Hydraulic Oil

1шт.

T102618

Label

(K2) Hydraulic Oil French

1шт.

T102620

Label

(K3) Hydraulic Oil Spanish

1шт.

19

4299059

Label

(SUB FOR T138886) Hydraulic Lockout

1шт.

20

AT152168

Label

(VANDAL COVER LOCATIONS)

1шт.

21

T145890

Label

Start / Stop Operation

1шт.

T153643

Label

Start / Stop Operation French

1шт.

T153634

Label

Start / Stop Operation Spanish

1шт.

22

T146110

Label

Lift

1шт.

T153645

Label

(K2) Lift French

1шт.

T153636

Label

(K3) Lift Spanish

1шт.

T151229

Label

(LIFT LABEL FOR SUPER LONG FRONT)

1шт.

23

T146102

Label

Bypass Start English

1шт.

T146104

Safety Sign

(K2) Bypass Start French

1шт.

T146106

Safety Sign

(K3) Bypass Start Spanish

1шт.

24

T146664

Safety Sign

Caution Front Window

1шт.

T148909

Safety Sign

(K2) Caution Front Window French

1шт.

T148904

Safety Sign

(K3) Caution Front Window Spanish

1шт.

25

T146666

Safety Sign

Caution (OPERATING MACHINE)

1шт.

T148911

Safety Sign

Caution (K2) (OPERATING MACHINE) French

1шт.

T148907

Safety Sign

Caution (K3) (OPERATING MACHINE) Spanish

1шт.

90

Label Kit

(INCLUDES ALL (K2) PARTS) French (DI SCARD UNUSED DECALS) ( AT170075 NLA)

1шт.

AT170074

Label Kit

(INCLUDES ALL (K3) PARTS) Sp anish (DISCARD UNUSED DECALS)

1шт.
