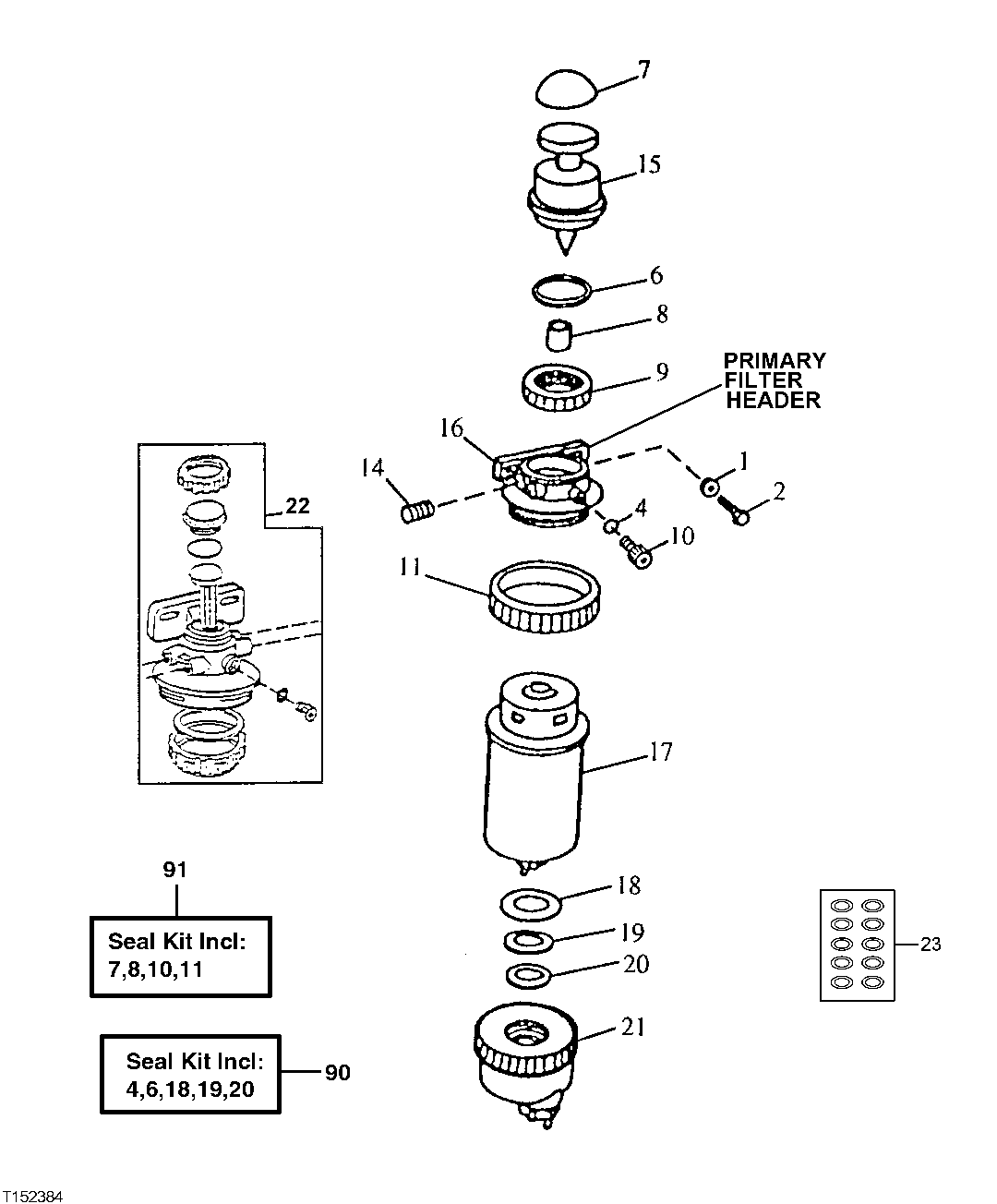

Запчасти John Deere 92ELC 94 - Water Separator / Primary Fuel Filter 0560 External Fuel Supply Systems

1

24M7239

Washer

10.700 X 21 X 2.500 mm

2шт.

2

19H3483

Cap Screw

3/8" X 1-1/8"

2шт.

4

R113562

O-Ring

(K1)

1шт.

6

Packing

(K1)

1шт.

7

Cap

(K2)

1шт.

8

Plug

(K2)

1шт.

9

Nut

2шт.

10

R113563

Drain Plug

(K2)

1шт.

11

Ring

(K2)

1шт.

14

15H604

Pipe Plug

1/4"

2шт.

15

RE50467

Hand Primer

Primary Filter

1шт.

R113562

O-Ring

Not Illustrated

1шт.

16

RE63183

Filter Head

Primary Filter ( RE63183 NLA) ( SUB RE500161 ) (ALSO ORDER (2) R 65684, (2) R82719 AND (4) R26286 )

1шт.

17

RE62424

Fuel Filter

(SUB FOR RE53729 AND R E61723) Primary Filter

1шт.

18

Packing

(K1)

1шт.

19

Packing

(K1)

1шт.

20

Packing

(K1)

1шт.

21

RE51650

Sediment Bowl

Primary Filter

1шт.

22

RE500161

Filter Kit

Primary Filter (WHEN REPLACING RE63183, ALSO ORDER (2) R65684, (2) R82719 AND (4) R26286)

1шт.

23

RE516513

Pump Repair Kit

(CONTAINS 10 O-RINGS) (W/ HAND PRIMER)

1шт.

RE516512

O-Ring Kit

(CONTAINS 10 O-RINGS) (W/O HAND PRIMER)

1шт.

90

RE516553

Seal Kit

(INCLUDES ALL (K1) PARTS) (SUB FOR RE50752)

1шт.

91

RE51649

Seal Kit

(INCLUDES ALL (K2) PARTS) Mechanical

1шт.
