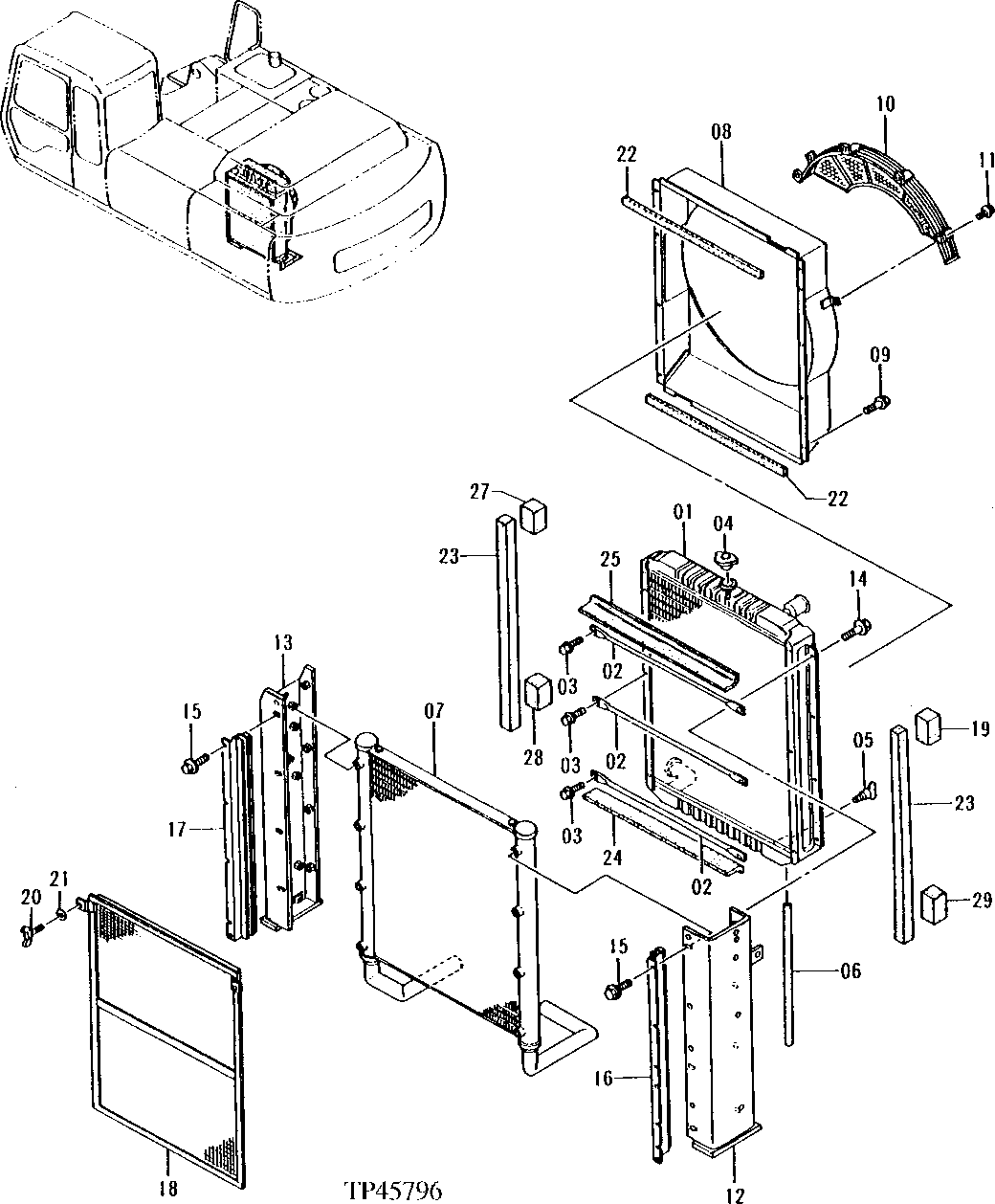

Запчасти John Deere 92ELC 86 - Radiator (011000 - ) 0510 Engine Cooling Systems

1

4345628

Radiator

NLA, SUB FOR AT204975

1шт.

2

4237644

Brace

SUB FOR AT132534

3шт.

3

19M7881

Screw

M8 X 20

6шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

6шт.

PT10336

Washer

6шт.

4

AT169085

Filler Cap

SUB FOR TH111864 AND AT 164267, USE IF AVAILABLE

1шт.

AT169085

Filler Cap

SUB FOR AT164267 OR TH111864

1шт.

5

4148705

Drain Plug

SUB FOR TH109425

1шт.

6

Hose

CTL FROM 1/2 INCH I.D. V INYL TUBING, TH108233 NLA

1шт.

7

4335475

Oil Cooler

SUB FOR AT201083

1шт.

8

4345629

Shroud

SUB FOR AT204976

1шт.

9

19M7932

Cap Screw

M8 X 16

8шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

8шт.

10

4345640

Guard

SUB FOR AT204977

1шт.

11

19M7932

Cap Screw

M8 X 16

5шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

5шт.

12

4345598

Bracket

SUB FOR AT204966

1шт.

13

4389911

Bracket

SUB FOR AT204967, 4345601

1шт.

14

4323711

Bolt

SUB FOR AT201074

8шт.

15

4323711

Bolt

SUB FOR AT201074

8шт.

16

4320512

Bracket

SUB FOR AT201064

1шт.

17

4320513

Bracket

SUB FOR AT201065

1шт.

18

4320517

Screen

SUB FOR AT201068

1шт.

19

4345602

Packing

1шт.

20

21M1689

Wing Screw

M6 X 12

2шт.

21

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

22

4345604

Packing

2шт.

23

4323712

Packing

2шт.

24

4345605

Packing

1шт.

25

4345606

Packing

1шт.

27

4345607

Packing

1шт.

28

4345608

Packing

1шт.

29

4345609

Packing

1шт.
