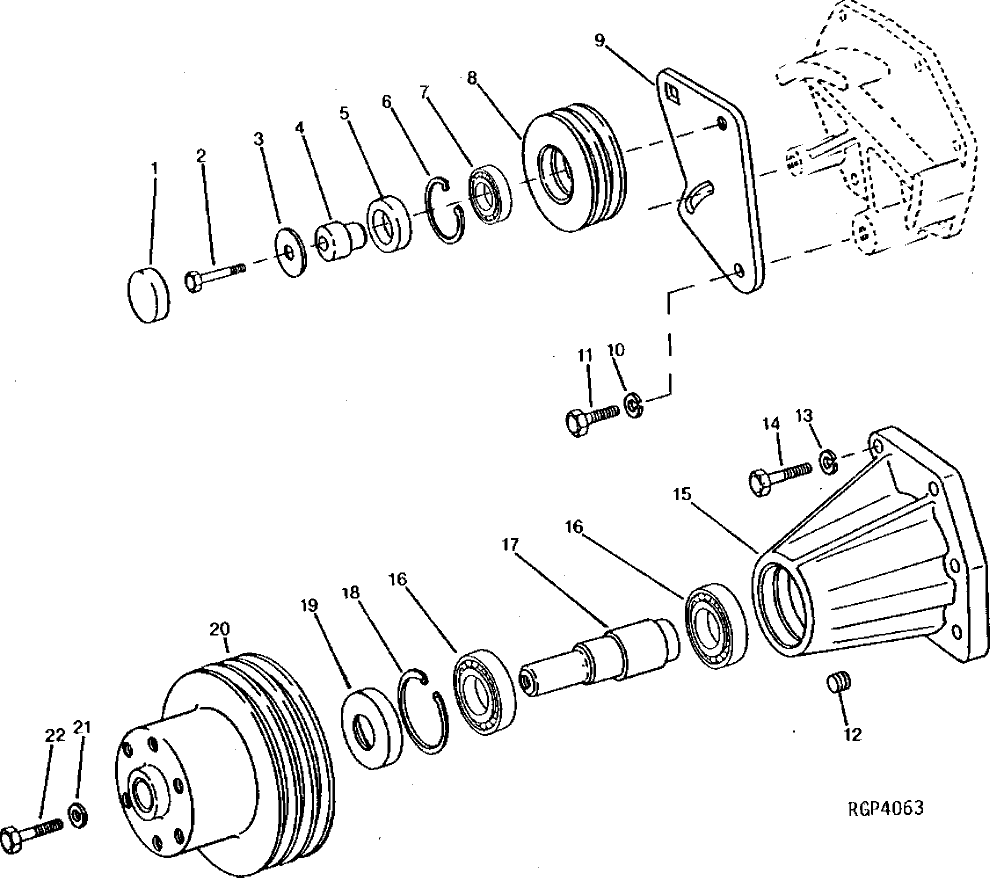

Запчасти John Deere 92ELC 83 - Fan Drive Pulleys, Fan Belt, Tensioner and Support 0510 Engine Cooling Systems

1

R66077

Plug

1шт.

2

19H2678

Cap Screw

7/16" X 2-1/8"

1шт.

3

24H1330

Washer

15/32" X 1-3/8" X 7/64"

1шт.

4

R70377

Hub

1шт.

5

AR92593

Seal

1шт.

6

R55408

Wear Ring

1шт.

7

JD8670

Ball Bearing

1шт.

8

R74114

Idler

(A)

1шт.

9

R108737

Bracket

1шт.

10

12H304

Lock Washer

3/8" No Longer Required

2шт.

11

19H1731

Cap Screw

3/8" X 1"

2шт.

12

15H686

Pipe Plug

(A) 1"

1шт.

13

12H304

Lock Washer

3/8"

4шт.

14

19H3219

Cap Screw

3/8" X 1-3/8"

4шт.

15

R107643

Housing

(A) (SUB RE45559)

1шт.

16

JD10329

Ball Bearing

(A) (SUB FOR JD7686)

2шт.

17

R63987

Shaft

(A)

1шт.

18

R62191

Snap Ring

(A) 1.7mm (.067in.), Red

ARшт.

R62192

Snap Ring

(A) 1.9mm (.077in.), Green

ARшт.

R62193

Snap Ring

(A) 2.2mm (.087in.), Blue

ARшт.

R62194

Snap Ring

(A) 2.5mm (.097in.), White

ARшт.

19

RE20768

Seal

(A)

1шт.

20

R108392

Pulley

(A)

1шт.

21

T20217

Washer

(A)

1шт.

22

19H3057

Cap Screw

(A) 1/2" X 2-3/4"

1шт.

RE45559

Housing

1шт.
