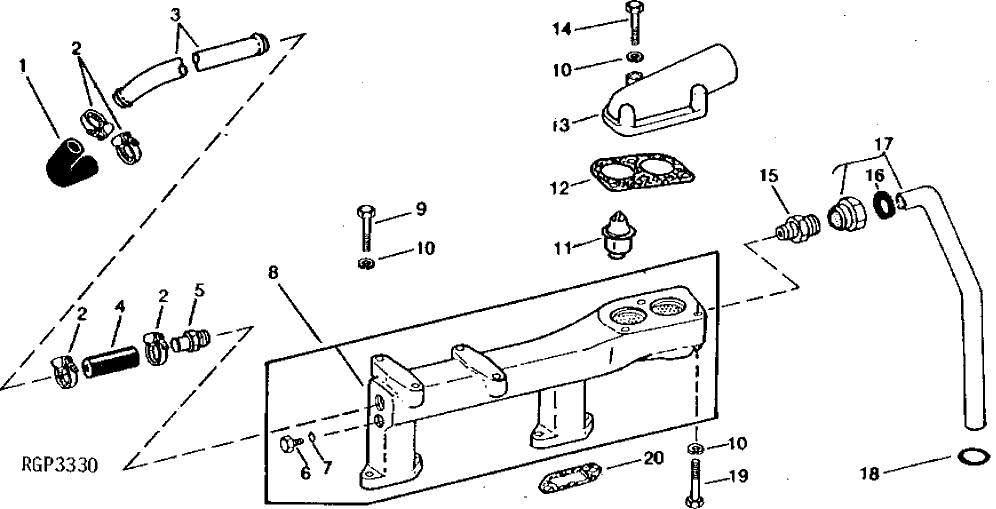

Запчасти John Deere 92DLC 62 - WATER OUTLET MANIFOLD AND THERMOSTATS 0418 Thermostats, Housing And Water Piping 6466AT014 6466AT014

1

R50402

Radiator Hose

(SUB FOR R47430)

1шт.

2

TY22467

Clamp

(SUB FOR AR21839)

4шт.

3

R61128

Line

1шт.

4

A5203R

Hose

22 MM X 76 MM (7/8" X 3") (20R2)

1шт.

5

R48362

Adapter Fitting

1шт.

6

R82719

Fitting Plug

(SUB FOR R27094, APPL)

1шт.

7

R26286

O-Ring

1шт.

8

RE12848

Manifold

(MARKED R78123 OR R50415 ) (S UB R78123, R26286 AND R82719)

1шт.

R78123

Manifold

(NOT AS SHOWN)

1шт.

9

19H3219

Cap Screw

3/8" X 1-3/8"

4шт.

10

12H304

Lock Washer

3/8"

7шт.

11

AR48675

Thermostat

82° (180°F)

1шт.

R100671

Plug

(EITHER OPENING) (USE WITH (1) AR48675)

1шт.

12

R124607

Gasket

(SUB FOR R46479)

1шт.

13

R58721

Cover

1шт.

14

19H1733

Cap Screw

3/8" X 2-1/2"

1шт.

15

R76560

Coupling

1шт.

16

R76558

Sleeve

1шт.

17

AR103815

Oil Line

1шт.

18

R47153

O-Ring

1шт.

19

19H2128

Cap Screw

3/8" X 3"

2шт.

20

R88397

Gasket

(SUB FOR R42693)

2шт.
