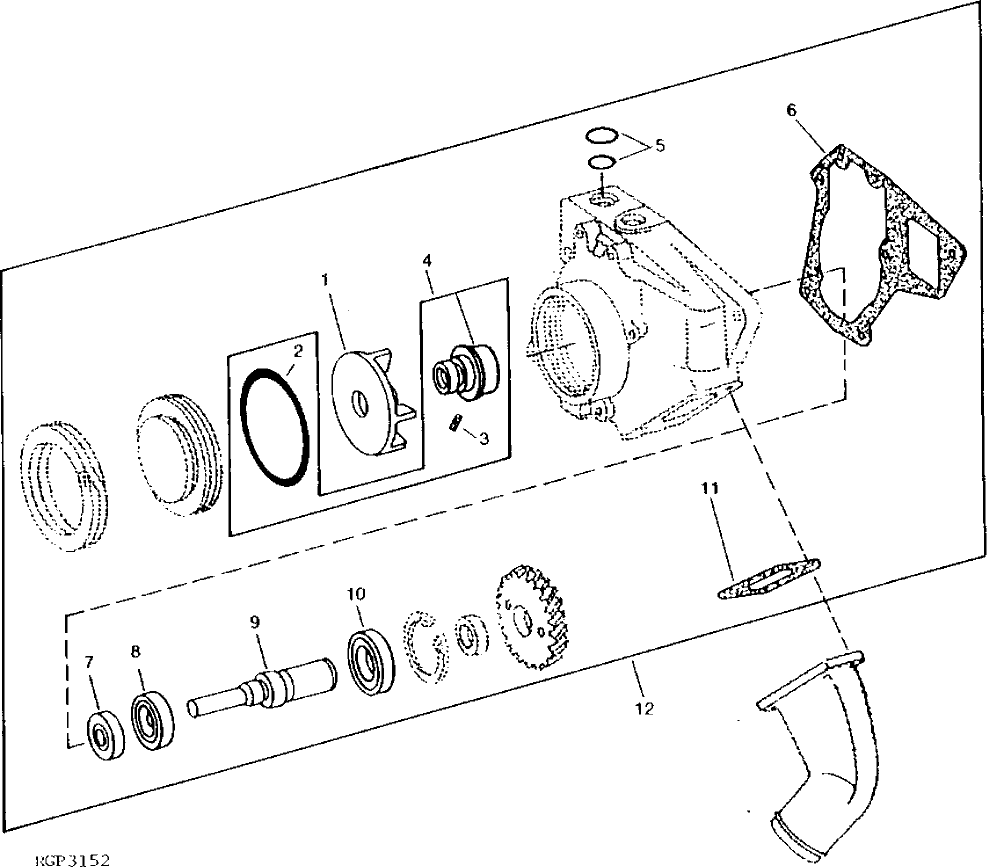

Запчасти John Deere 92DLC 61 - Water Pump Repair Kit 0417 Water Pump 6466AT014 6466AT014

1

R71225

Impeller

1шт.

2

R71596

O-Ring

1шт.

3

R98527

Filter

(WEEP HOLE)

1шт.

4

RE69844

Pump Repair Kit

(SUB FOR RE12940, RE24772 OR RE55992)

1шт.

5

R47153

O-Ring

2шт.

6

R520580

Gasket

(SUB FOR R71315)

1шт.

7

AR93518

Seal

(SUB RE39134)

1шт.

RE39134

Seal

1шт.

8

JD10171

Ball Bearing

(FRONT) (USE WITH R71224)

1шт.

JD10363

Ball Bearing

(FRONT) (USE WITH R83561)

1шт.

9

Shaft

(W/ R71224 - SUB RE69846)

1шт.

Shaft

(W/ R83561 - SUB RE69847)

1шт.

10

JD10113

Ball Bearing

(REAR) (USE WITH R71224)

1шт.

JD10362

Ball Bearing

(REAR) (USE WITH R83561)

1шт.

11

R71361

Gasket

1шт.

12

RE55993

Kit

(USE WITH R71224 ) (SUB FOR RE13031 , RE24773 OR RG19280 ) (SUB RE69846)

1шт.

RE69846

Kit

(USE WITH R71224)

1шт.

RE55994

Kit

(USE WITH R83561 ) (SUB FOR RE2 3295 OR RG19279 ) (SUB RE69847)

1шт.

RE69847

Kit

(USE WITH R83561)

1шт.
