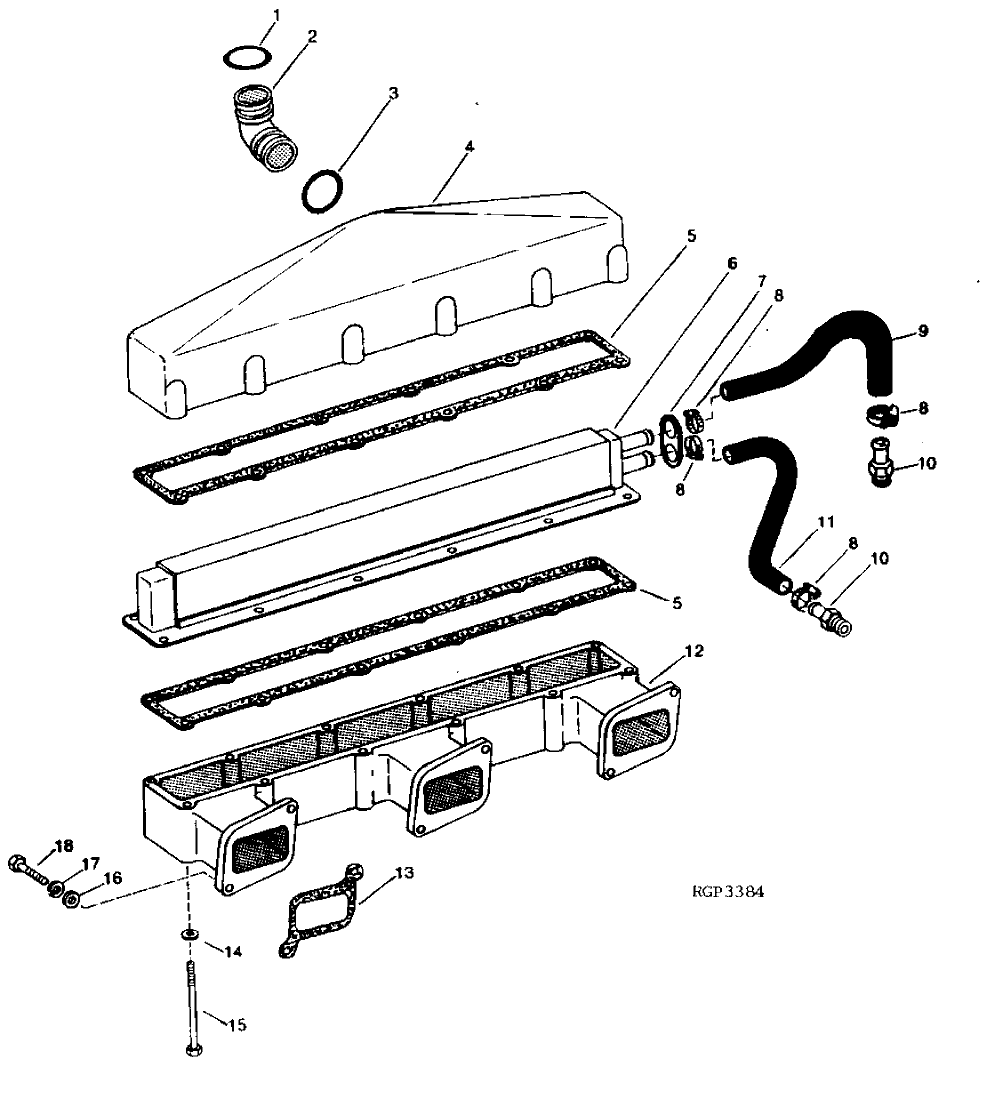

Запчасти John Deere 92DLC 56 - Aftercooler And Intake Manifold (354852 - ) 0414 Intake Manifold 6466AT014 6466AT014

1

R50406

O-Ring

1шт.

2

R94428

Coupling

1шт.

3

R50405

O-Ring

1шт.

4

R93918

Cover

1шт.

5

R88993

Gasket

2шт.

6

RE31029

Intercooler

1шт.

RE69444

Intake Manifold

(AIR HEATER)

1шт.

7

R100911

Seal

(SUB FOR R92447)

1шт.

8

TY22467

Clamp

(SUB FOR RE38535)

4шт.

9

R93922

Hose

(OUTLET)

1шт.

10

H33801

Hose Fitting

(INLET)

1шт.

R39503

Fitting

(OUTLET)

1шт.

11

R93616

Suction Hose

(INLET)

1шт.

12

R131473

Intake Manifold

(SUB FOR R91466, THIS APPLICATION)

1шт.

13

R130573

Gasket

(SUB FOR R87316 OR R102838)

3шт.

14

24H1136

Washer

11/32" X 11/16" X 0.065"

12шт.

15

19H3300

Cap Screw

5/16" X 3-3/4"

12шт.

16

24H1682

Washer

13/32" X 7/8" X 0.120"

6шт.

17

12H304

Lock Washer

3/8" (NO LONGER REQUIRED)

6шт.

18

19H2633

Cap Screw

3/8" X 1-1/2"

6шт.

RE69497

Kit

(NOT SHOWN) AIR HEATER

1шт.
