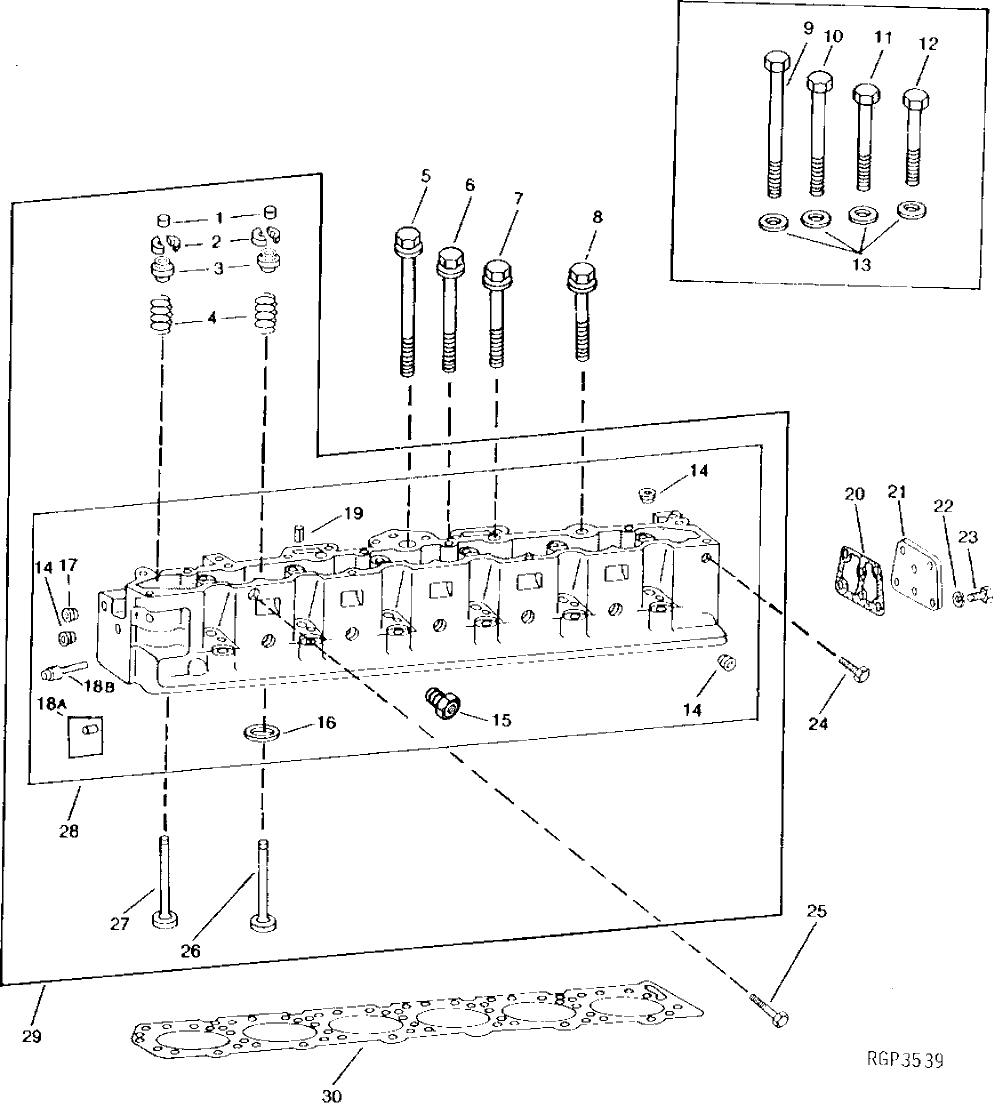

Запчасти John Deere 92DLC 46 - Cylinder Head and Valves 0409 Cylinder Head and Valves 6466AT014 6466AT014
№
Артикул
Название
Примечание
Количество
3
RE11410
Rotator
(SUB FOR AR41006)
12шт.
4
R26125
Spring
12шт.
5
R88045
Cap Screw
(A) (9/16" X 7.4") (SUB FOR R62420)
7шт.
6
R88044
Cap Screw
(A) (9/16" X 6.3") (SUB FOR R62419)
8шт.
R121321
Screw
(B) (MARKED "SPECIAL") (9/16" X 6.3")
8шт.
7
R88043
Cap Screw
(A) (9/16" X 5.3") (USE WITH R71688 , R71685 OR R80481 ) (SUB FOR R62418)
5шт.
R88043
Cap Screw
(A) (9/16" X 5.3") (USE WITH R87555 , R87556 OR R87564 ) (SUB FOR R62418)
11шт.
8
R88042
Cap Screw
(A) (USE WITH R71688, R71685 OR R80481 ) (SUB FOR R62421)
6шт.
9
R62420
Screw
(A) (9/16" X 7.4") (SUB R88045)
7шт.
10
R62419
Screw
(A) (9/16" X 6.3") (SUB R88044)
8шт.
11
R62418
Screw
(A) (9/16" X 5.3") (USE WITH R71688, R71685 , R80481, R71732, R65693, R74352, R62907, R71 689, R64530, R63198 OR R78505 ) (SUB R88043)
5шт.
R62418
Screw
(A) (9/16" X 5.3") (USE WITH R875 56, R87555 OR R87554 ) (SUB R88043)
11шт.
12
R62421
Screw
(A) (9/16" X 3.3") (USE WITH R71688, R71685 , R80481, R71732, R65693, R74352, R62907, R71 689, R64530, R63198 OR R78505 ) (SUB R88042)
6шт.
13
R76126
Washer
(A) 14.681 X 25.400 X 2.667 mm (SUB FOR R42364)(USE WITH R6241 8, R62419, R62420 OR R62421 ONLY )
26шт.
14
15H690
Pipe Plug
3/4" (SUB FOR AR72318)
11шт.
15
RE501737
Pipe Plug
(SUB FOR RE10132 OR R76491 ) (USE WITH R76384 OR R86696)
1шт.
16
R78702
Valve Seat Insert
STD (SUB FOR R50356, APPL)
12шт.
R82508
Valve Seat Insert
0.25 MM (.010") OS (SUB FOR R55061, APPL)
12шт.
17
RE57836
Pipe Plug
12.700 mm (SUB FOR AR72319 OR 15H624)
6шт.
18A
F1743R
Dowel Pin
1шт.
18B
AT107509
Plug
1шт.
19
34H387
Spring Pin
3/16" X 3/4"
1шт.
20
R43595
Gasket
1шт.
21
R51347
Cover
1шт.
22
12H331
Lock Washer
3/8"
6шт.
23
19H2284
Cap Screw
3/8" X 7/8"
6шт.
RG30466
Bolt Kit
(A)
1шт.
RG24025
Bolt Kit
(B) (CONTAINS (26) "SPECIAL" HEAD BOLTS)
1шт.
Выбрано товаров: 33
