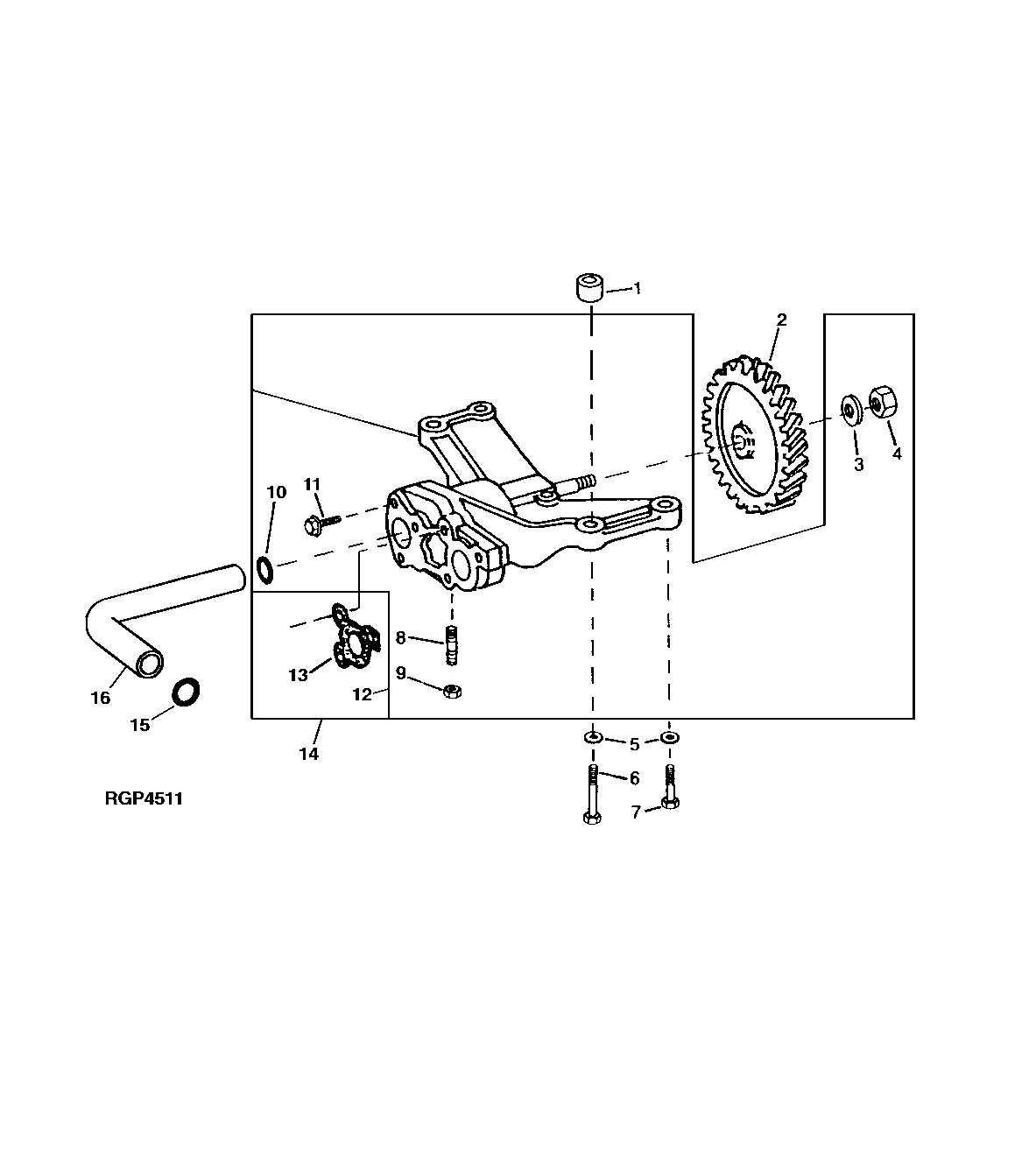

Запчасти John Deere 92DLC 38 - Engine Oil Pump (Crankshaft Driven) Replacement Oil Pump 0407 OILING SYSTEM 6466AT014 6466AT014

1

R500642

Bushing

(SUB FOR R62930, THIS APPLICATION)

2шт.

2

R62938

Gear

1шт.

3

T21242

Washer

1шт.

4

14H826

Nut

1/2"

1шт.

5

R57696

Washer

4шт.

6

19H2549

Cap Screw

3/8" X 1-7/8"

2шт.

7

19H3219

Cap Screw

3/8" X 1-3/8"

2шт.

8

22H1040

Set Screw

5/16" X 1-1/4"

1шт.

9

14H785

Nut

5/16"

1шт.

10

R71732

O-Ring

1шт.

11

R104628

Screw

2шт.

R104628

Screw

(INTAKE COVER TO HOUSING)

3шт.

12

RE44118

Oil Pump

(A) (MARKED R62946 ) (SUB FOR AR9934 4 ) (SUB RE507076 ) (USE WITH RE60819)

1шт.

13

R100569

Gasket

1шт.

14

RE507076

Oil Pump

(MARKED R124328) (SUB FOR RE60622)

1шт.

SE500877

Oil Pump Reman

(REMAN FOR RE507076)

1шт.

15

R71732

O-Ring

1шт.

16

R62952

Oil Tube

1шт.
