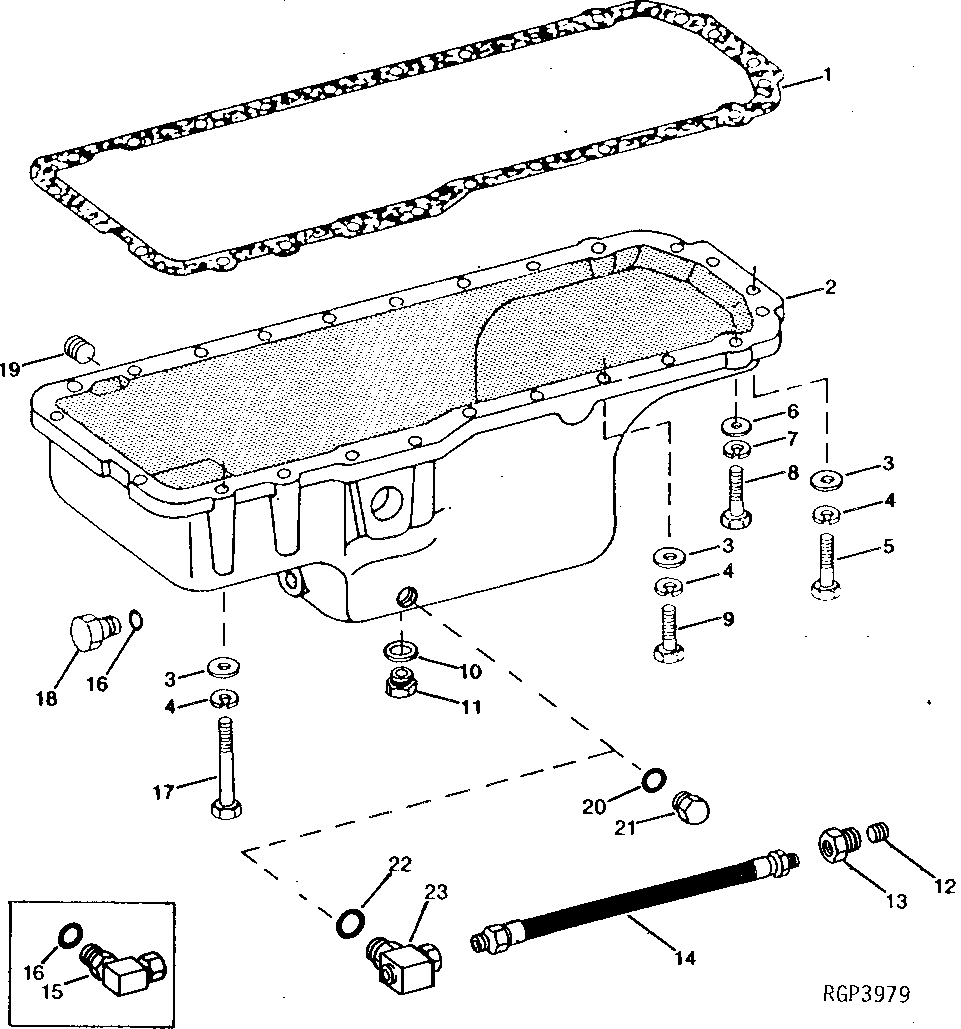

Запчасти John Deere 92DLC 36 - REPLACEMENT OIL PAN 0407 OILING SYSTEM 6466AT014 6466AT014

1

RE504822

Gasket

(SUB FOR R49377)

1шт.

2

RE45439

Oil Pan

(SUB FOR RE18726 ) (SUB R E52106, R27474 AND R47151)

1шт.

RE52106

Oil Pan

1шт.

3

24H1305

Washer

13/32" X 13/16" X 0.065"

22шт.

4

12H304

Lock Washer

3/8"

22шт.

5

19H3485

Cap Screw

3/8" X 2"

2шт.

6

24H1756

Washer

1/2" X 1" X 0.060"

2шт.

7

12H301

Lock Washer

1/2"

2шт.

8

19H2473

Cap Screw

1/2" X 1-3/4"

2шт.

9

19H3267

Cap Screw

3/8" X 1-5/8"

18шт.

10

A4827R

Washer

25.400 X 31.700 X 1.500 mm

1шт.

11

R26727

Drain Plug

1шт.

12

15H584

Pipe Plug

1/2"

NAшт.

13

R56407

Fitting

NAшт.

14

AU11507

Hydraulic Hose

NAшт.

15

AU40690

Elbow Fitting

1шт.

16

F3171R

O-Ring

(SIDE & REAR)

2шт.

17

19H3504

Cap Screw

3/8" X 5-3/8"

2шт.

18

R27175

Drain Plug

(SIDE)

1шт.

R27175

Drain Plug

(REAR)

1шт.

19

15H690

Pipe Plug

3/4"

1шт.

20

R47151

O-Ring

1шт.

21

R27474

Drain Plug

1шт.

22

F3171R

O-Ring

NAшт.

23

AT31235

Elbow Fitting

NAшт.
