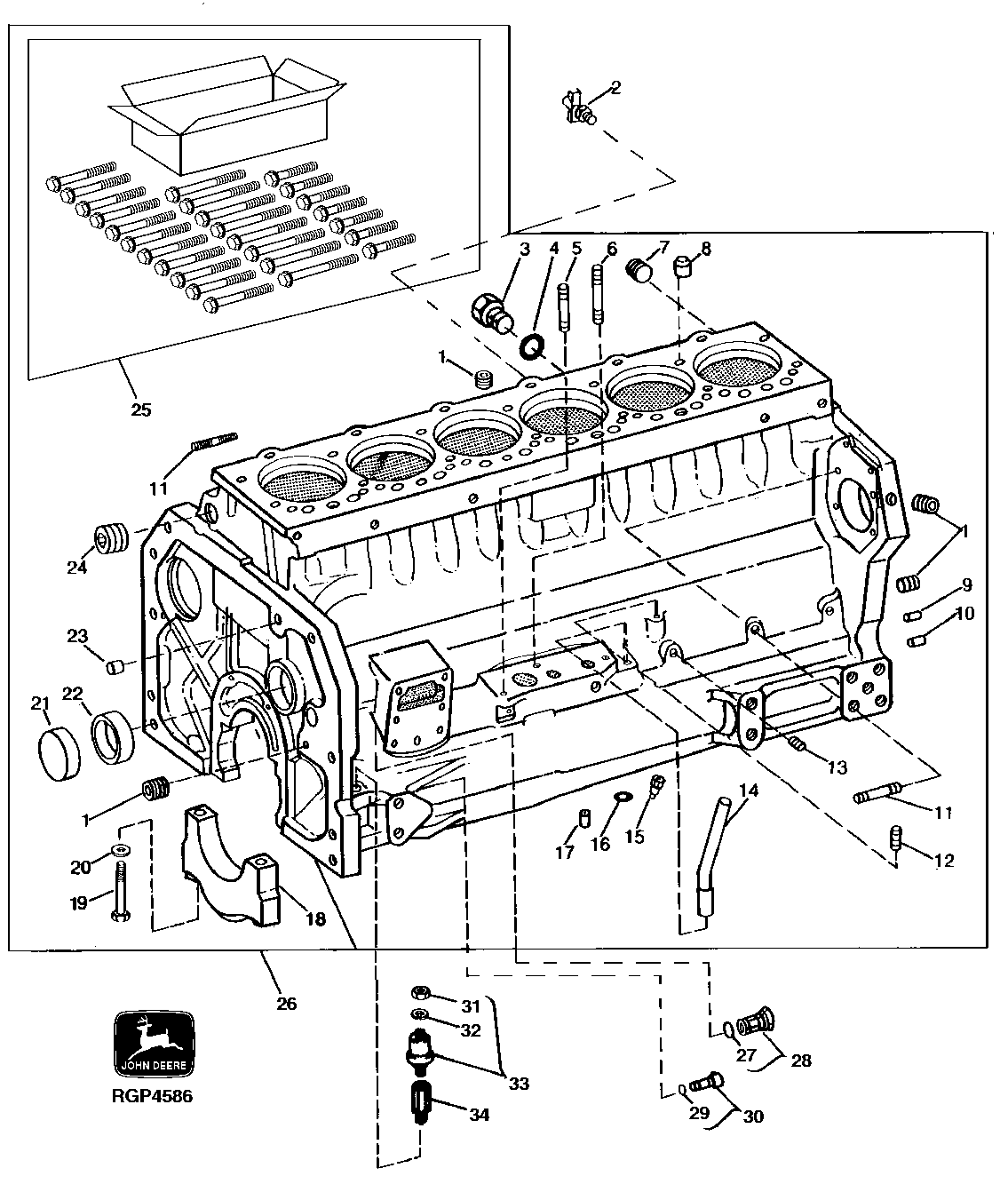

Запчасти John Deere 92DLC 27 - REPLACEMENT CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS 0404 Cylinder Block 6466AT014 6466AT014

1

RE57836

Pipe Plug

12.700 mm , (SUB FOR 15H624)

4шт.

2

AT13740

Drain Valve

1шт.

3

R39741

Drain Plug

1шт.

4

U13639

O-Ring

1шт.

5

R106859

Stud

3/8" X 2-3/4"

1шт.

6

R55395

Stud

3/8" X 3-5/8"

1шт.

7

15H690

Pipe Plug

3/4"

1шт.

8

R42340

Bushing

2шт.

9

R1612R

Dowel Pin

2шт.

10

F1743R

Dowel Pin

2шт.

11

R114130

Stud

3/8" X 1-11/16"

5шт.

12

R104592

Pipe Plug

1шт.

13

R104592

Pipe Plug

4шт.

14

AR71850

Dipstick Tube

1шт.

15

R43621

Orifice

6шт.

16

R71732

O-Ring

1шт.

17

R500642

Bushing

(SUB FOR R62930, THIS APPLICATION)

2шт.

18

R57158

Bearing Cap

MAIN

6шт.

R57159

Bearing Cap

MAIN THRUST

1шт.

19

R42365

Bolt

14шт.

20

R70268

Washer

14шт.

21

R26115

Plug

1шт.

22

R46903

Bushing

4шт.

23

R61288

Dowel Pin

1шт.

24

15H686

Pipe Plug

1"

1шт.

25

RG24025

Bolt Kit

1шт.

26

RE65074

Cylinder Block

(MARKED R122735 ) (INCLUDES (26) "SPECIAL" H EAD BOLTS) (ORDER SE500059 THIS APPLICATION)

1шт.

SE500059

Basic Diesel Engine Reman

(6466AT014)

1шт.

27

R27149

O-Ring

1шт.

28

AR61533

Plug

1шт.

29

A4365R

O-Ring

1шт.

30

DZ104494

Plug

SUB FOR AR61589

1шт.

31

Nut

NAшт.

32

Lock Washer

NAшт.

33

Sensor

NAшт.

Connector

NAшт.

34

Fitting

NAшт.
