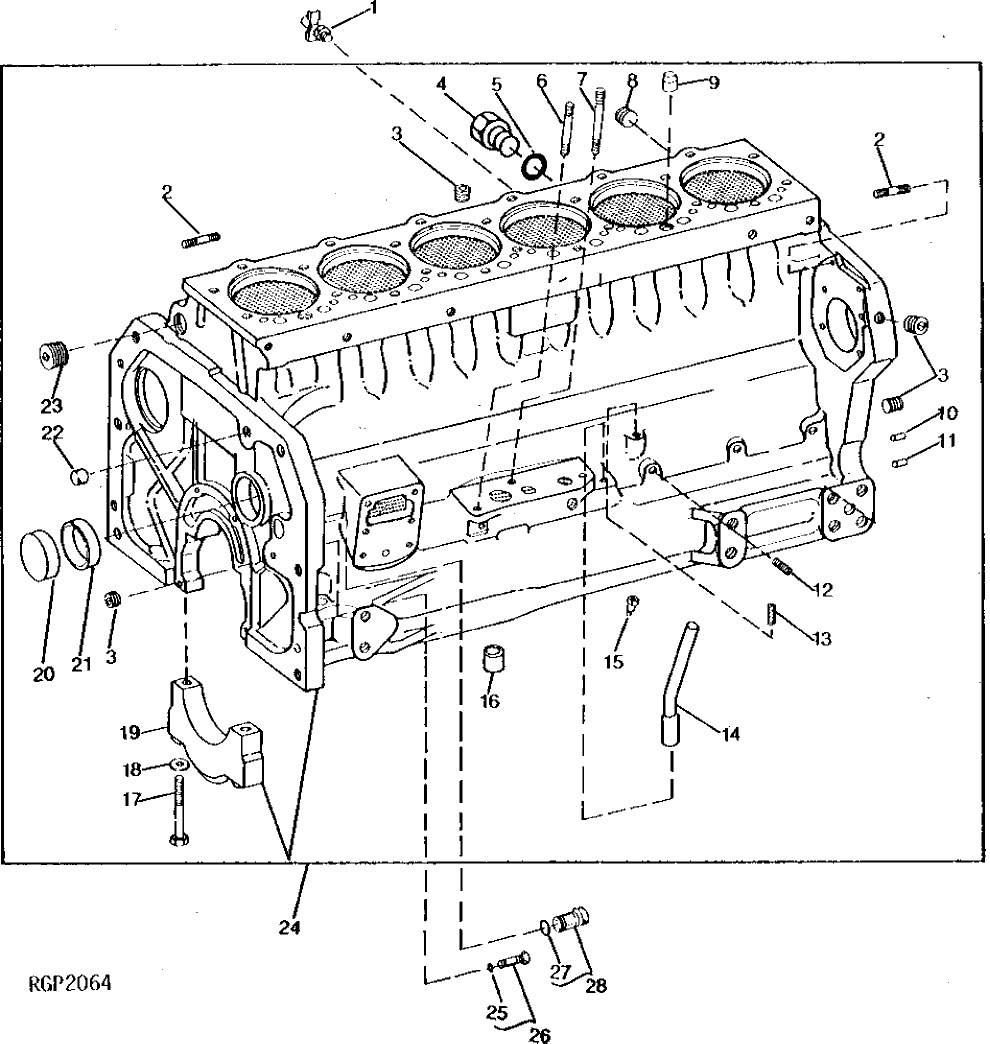

Запчасти John Deere 92DLC 26 - CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS (WITHOUT HEAD BOLTS) (239487 - 298997) 0404 Cylinder Block 6466AT014 6466AT014

1

AT13740

Drain Valve

1шт.

2

R114130

Stud

(SUB FOR R55396, THIS APPLICATION)

5шт.

3

RE57836

Pipe Plug

12.700 mm (SUB FOR AR72319 OR 15H624)

4шт.

4

R39741

Drain Plug

1шт.

5

U13639

O-Ring

1шт.

6

R106859

Stud

(SUB FOR F3646R OR R26622, APPL)

1шт.

7

R55395

Stud

1шт.

8

15H690

Pipe Plug

3/4" (SUB FOR AR72318)

1шт.

9

R42340

Bushing

2шт.

10

R1612R

Dowel Pin

4шт.

11

F1743R

Dowel Pin

2шт.

12

R104592

Pipe Plug

1шт.

13

R104592

Pipe Plug

(SUB FOR R21630, APPL)

5шт.

14

AR71850

Dipstick Tube

1шт.

15

R43621

Orifice

6шт.

16

R500642

Bushing

(SUB FOR R62930, THIS APPLICATION)

2шт.

17

R42365

Bolt

15.875 X 120.650 mm

14шт.

18

R70268

Washer

16.910 X 28 X 4.390 mm (SUB FOR R42363)

14шт.

19

R57158

Bearing Cap

(MAIN)

6шт.

R57159

Bearing Cap

(MAIN THRUST)

1шт.

20

R26115

Plug

1шт.

21

R46903

Bushing

4шт.

22

R61288

Dowel Pin

1шт.

23

15H686

Pipe Plug

1" (SUB FOR AR78522)

1шт.

24

RE28311

Cylinder Block

NLA (MARKED R87564 ) (ORDER SE5000 59 AND (6) R88043 THIS APPLICATION)

1шт.

RE60443

Cylinder Block

NLA (MARKED R122735 ) (ORDE R SE500059 THIS APPLICATION)

1шт.

SE500059

Basic Diesel Engine Reman

(6466AT014)

1шт.

25

A4365R

O-Ring

1шт.

26

DZ104494

Plug

SUB FOR AR61589;

1шт.

27

R27149

O-Ring

1шт.

28

AR61533

Plug

1шт.
