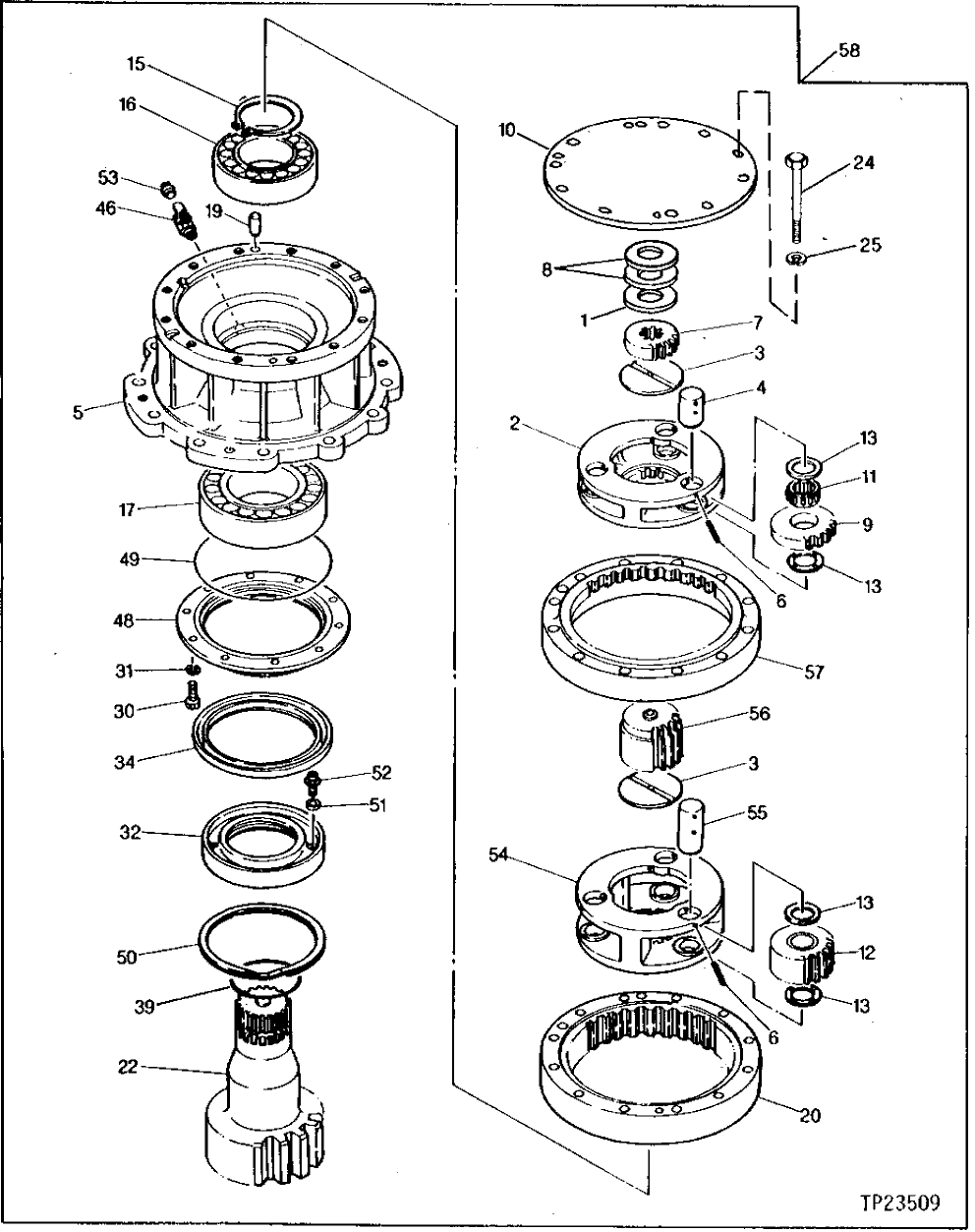

Запчасти John Deere 92DLC 253 - REPLACEMENT SWING DRIVE 4360 HYDRAULIC SYSTEM

1

Shim

1шт.

2

2023371

Planet Pinion Carrier

(SUB FOR TH111119)

1шт.

3

4194454

Washer

(SUB FOR TH111267)

2шт.

4

4187588

Pin

(SUB FOR TH109480)

3шт.

5

1010618

Housing

(SUB FOR TH111098)

1шт.

6

34M5564

Spring Pin

6 X 70 mm (SUB FOR TH109482)

6шт.

7

3036571

Sun Gear

(SUB FOR TH111162)

1шт.

8

Shim

3шт.

9

3036572

Gear

(SUB FOR TH111163)

3шт.

10

Cover

1шт.

11

4187318

Needle Bearing

(SUB FOR TH109486)

3шт.

12

9726338

Gear

(SUB FOR TH111629)

3шт.

13

4187591

Plate

(SUB FOR TH109488)

12шт.

15

991354

Snap Ring

(SUB FOR TH111641)

1шт.

16

TH104674

Spherical Roller Bearing

(SUB FOR TH111220)

1шт.

17

AT160517

Spherical Roller Bearing

(SUB FOR TH111198)

1шт.

19

J401640

Dowel Pin

(SUB FOR TH110085)

2шт.

20

2023381

Gear

(SUB FOR TH111121)

1шт.

22

2034610

Shaft

(SUB FOR TH111118 ) (SUB FOR AT158062)

1шт.

24

Screw

(NOT REQUIRED FOR SERVICE)

6шт.

25

Lock Washer

(NOT REQUIRED FOR SERVICE)

6шт.

30

19M7403

Cap Screw

M12 X 35

10шт.

31

12H301

Lock Washer

1/2"

10шт.

32

2024789

Sleeve

(SUB FOR TH111130)

1шт.

34

4250326

Seal

(SUB FOR AT130895, TH109495)

1шт.

39

A811140

O-Ring

(SUB FOR TH111062)

1шт.

46

4194712

Drain Valve

(SUB FOR TH108278)

1шт.

48

3039026

Cover

(SUB FOR TH111189)

1шт.

49

4204138

O-Ring

(SUB FOR TH109503)

1шт.

50

4206425

Snap Ring

(SUB FOR TH111311)

1шт.

51

4204644

Magnet

(SUB FOR TH108284)

2шт.

52

21M7250

Screw

M4 X 12 (SUB FOR 4204645, AL ONG WITH 12H315 AND 24M7117)

2шт.

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

2шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

53

94-2024

Fitting Plug

(SUB FOR TH101292)

1шт.

54

2033936

Planet Pinion Carrier

(SUB FOR TH111131 ) (SUB FOR AT158063)

1шт.

55

4244694

Pin Fastener

(SUB FOR TH109481)

3шт.

56

3039518

Sun Gear

(SUB FOR TH111193)

1шт.

57

2024994

Gear

(SUB FOR TH111132)

1шт.

58

9097706

Drive

(SUB FOR TH111877)

1шт.
