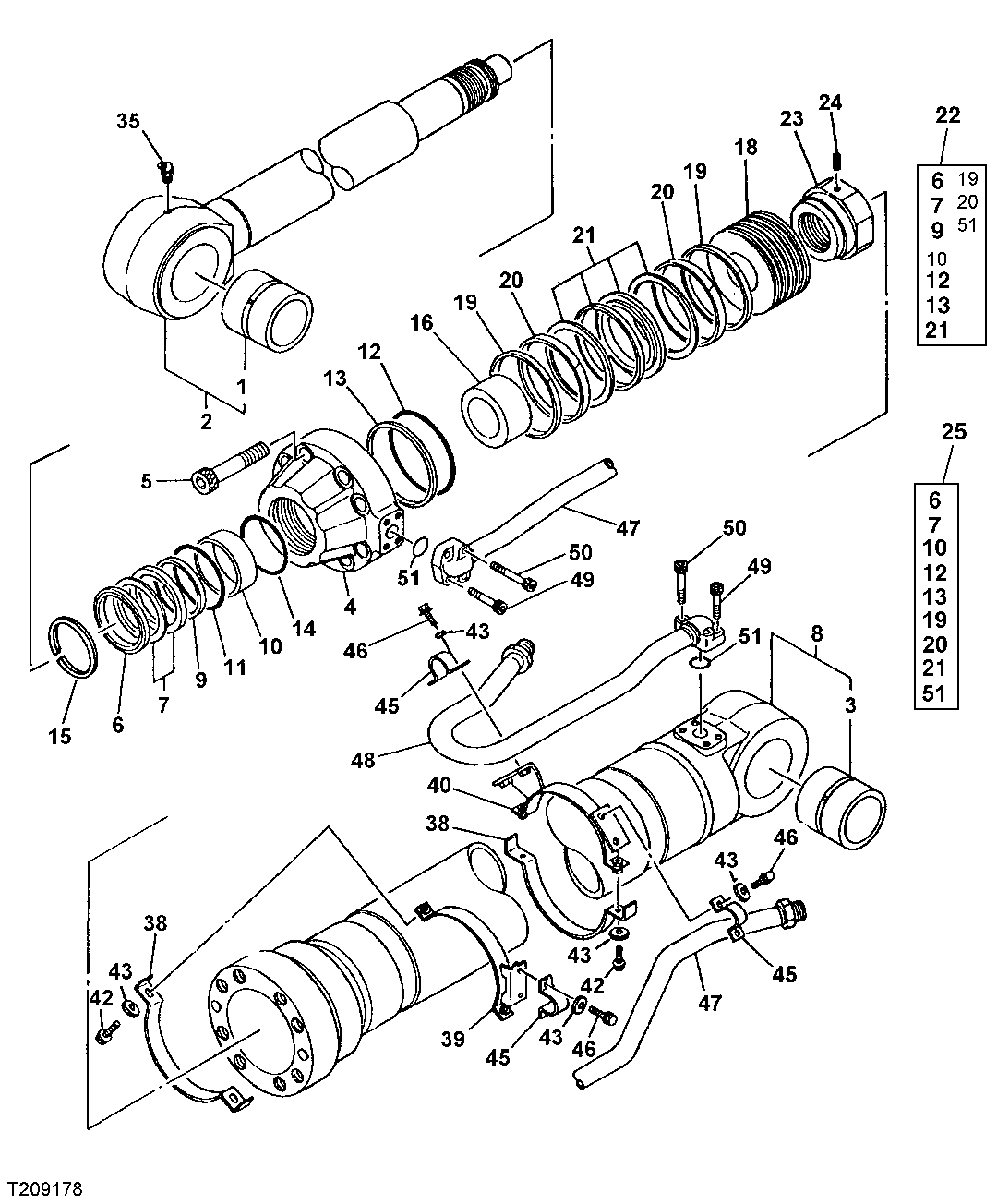

Запчасти John Deere 92DLC 250 - Arm Cylinder 3365 Hydraulic Cylinders

1

3036659

Bushing

SUB FOR TH111167

1шт.

2

7027781

Rod

SUB FOR TH111598

1шт.

3

3036659

Bushing

SUB FOR TH111167

1шт.

4

1023029

Hydraulic Cylinder Cap

SUB FOR AT130812, ALONG WITH 4 369510, AT264280 AND AT264281

1шт.

5

M342700

Screw

SUB FOR TH111068

8шт.

6

TH111268

Seal

Cylinder Serial Number

1шт.

AT264280

Seal

Cylinder Serial Number SU B FOR AT181797 OR 4348206

1шт.

7

AT264410

Seal

SUB FOR TH111269

1шт.

8

4646016

Hydraulic Cylinder Barrel

NLA, SUB FOR TH111551 OR 9127657

1шт.

9

TH111370

Ring

Cylinder Serial Number

1шт.

AT264288

Ring

Cylinder Serial Number

1шт.

10

AT264238

Bushing

SUB FOR TH111271, AT131417

1шт.

11

4215654

O-Ring

SUB FOR TH111387

1шт.

12

TH111206

O-Ring

Cylinder Serial Number

1шт.

AT264281

O-Ring

Cylinder Serial Number SU B FOR AT181798 OR 4374778

1шт.

13

AT264405

Back-Up Ring

SUB FOR TH111207

1шт.

14

4265019

Snap Ring

SUB FOR AT130813, USE WI TH AT130811 OR AT131416

1шт.

15

4369510

Ring

Retaining Cylinder Seria l Number SUB FOR AT181795

1шт.

16

4194628

Ring

SUB FOR TH111277

1шт.

18

3036604

Piston

SUB FOR TH111165

1шт.

19

AT264413

Ring

SUB FOR TH111274

2шт.

20

AT264412

Wear Ring

SUB FOR TH111273

2шт.

21

AT264411

Ring

SUB FOR TH111272

1шт.

22

AT196476

Seal Kit

Cylinder Serial Number SUB FOR 9078846

1шт.

23

3039393

Nut

SUB FOR TH111192

1шт.

24

4201806

Set Screw

SUB FOR TH110066

1шт.

25

AT264432

Hydraulic Cylinder Kit

Cylinder Serial Number NLA, SUB 91755 63, SUB FOR AT181799, USE WITH 4369510

1шт.

26

9175563

Hydraulic Cylinder Kit

Cylinder Serial Number Not Illustr ated INCLUDES AT264280, AT264410, AT264288, 4215654, AT264281, AT264 405 AND AT264411, USE WITH 4369510

1шт.

35

T116334

Lubrication Fitting

SUB FOR TH100075

1шт.

38

3043351

Clamp

SUB FOR TH111480 AND TH111992

2шт.

39

8043042

Clamp

SUB FOR TH111498 AND TH111993

1шт.

40

8044210

Clamp

SUB FOR TH111481 AND TH111994

1шт.

42

19M7550

Cap Screw

M10 X 35

4шт.

43

12M7066

Lock Washer

10 mm

10шт.

45

4174241

Clamp

SUB FOR TH110059

3шт.

46

19M7402

Cap Screw

M10 X 25

6шт.

47

8036939

Oil Line

SUB FOR TH111476

1шт.

48

8036938

Oil Line

SUB FOR TH111475

1шт.

49

19M8341

Screw

M12 X 45

4шт.

50

19M8444

Screw

M12 X 60

4шт.

51

AT264324

O-Ring

SUB FOR TH100044

2шт.

62

AT264198

Hydraulic Cylinder

NLA, SUB FOR TH111616, AT130811, A T131416, 911168 Arm, Reman Includes Keys 1 Through 35 Not Illustrated

1шт.

63

Seal

Rod and Head End Not Illustrated Not Included in Cylinder Assembly For Deta il See Boom and Arm Hydraulic Oil Line s

4шт.
