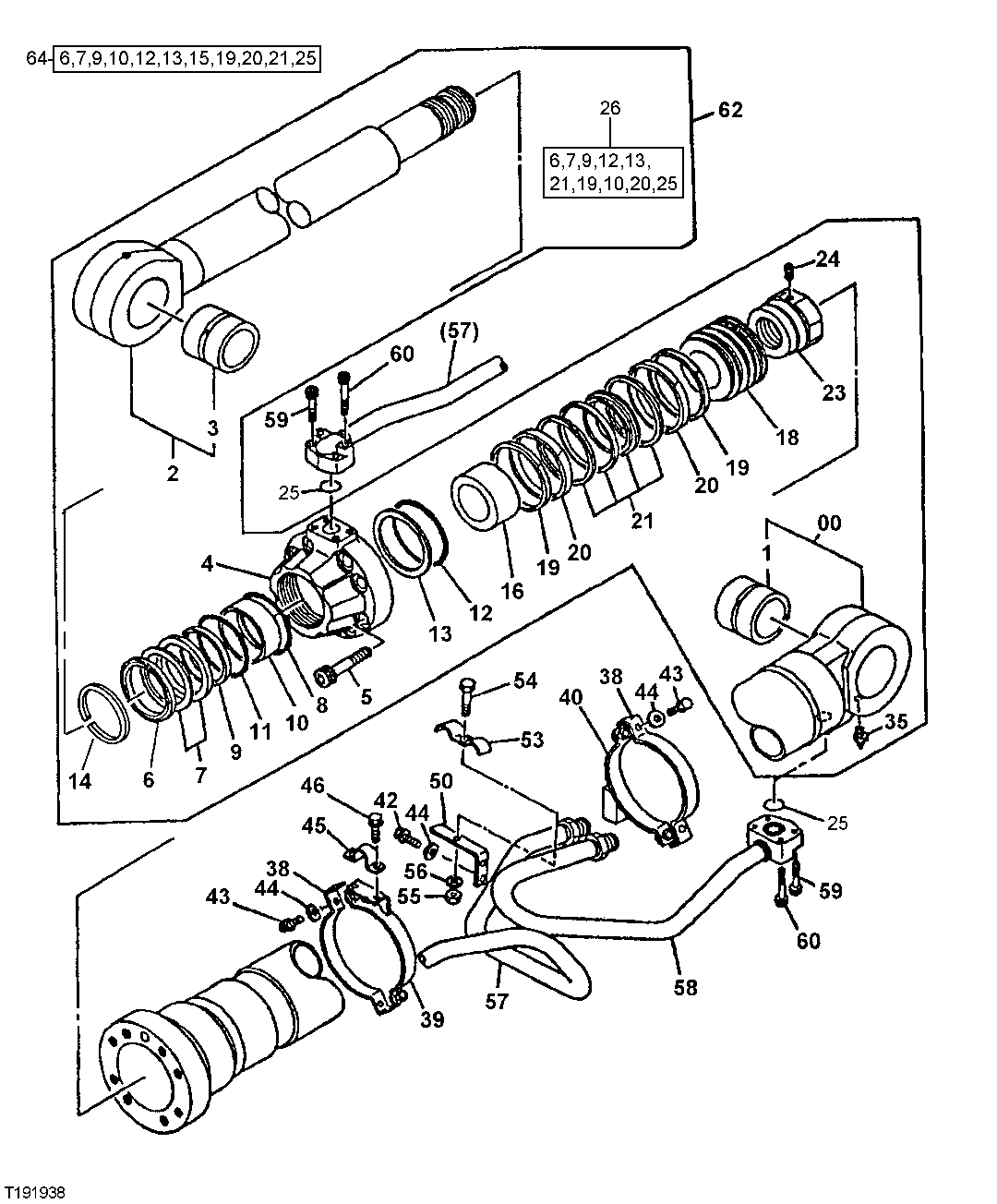

Запчасти John Deere 92DLC 249 - CYLINDER BOOM (LEFT) 3365 Hydraulic Cylinders

50

4195485

Support

(SUB FOR TH111279, THIS APPL ICATION ) (SUB FOR TH111280)

1шт.

51

19M7662

Cap Screw

M10 X 30 (SUB FOR TH105687)(NOT ILL USTRATED) (SERIAL NO. NOT AVAILABLE) (FOR UNITS BUILT BEFORE MARCH 1988)

2шт.

53

4229234

Clamp

(SUB FOR TH111214 ) (SUB FOR TH111990)

1шт.

54

19M8348

Cap Screw

M12 X 65 (SUB FOR TH111991)

1шт.

55

14M7275

Nut

M12

1шт.

56

12H301

Lock Washer

1/2"

1шт.

57

8036937

Oil Line

(SUB FOR TH111006)

1шт.

58

8037795

Oil Line

(SUB FOR TH111007)

1шт.

59

19M8341

Screw

M12 X 45

4шт.

60

19M8444

Screw

M12 X 60

4шт.

62

AT264218

Hydraulic Cylinder

(SUB FOR TH111615 ) (SUB FOR AT13 1413)(INCLUDES KEYS 0 THROUGH 35)

1шт.

63

Seal

(ROD AND HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETA IL SEE BOOM AND ARM HYDRAULIC OIL LINES)

4шт.

64

9175562

Hydraulic Cylinder Kit

(SUB FOR 9154894, AT181794 OR AT26 4431)(USE ON CYLINDER S.N. 603427- ) (INCLUDES ALL PARTS MARKED (B))

1шт.
