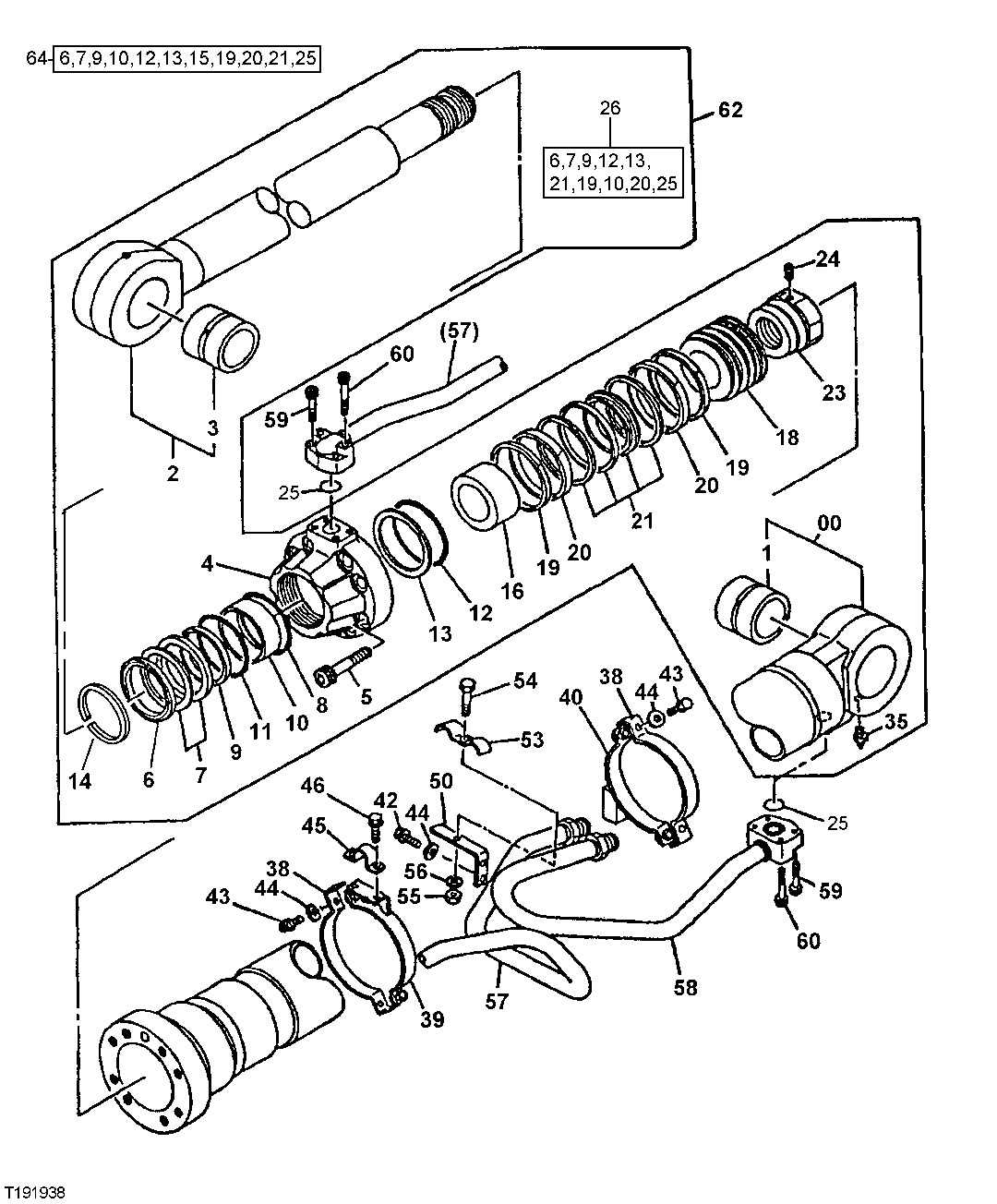

Запчасти John Deere 92DLC 248 - CYLINDER BOOM (LEFT) 3365 Hydraulic Cylinders

35

TH100074

Lubrication Fitting

1шт.

38

8036709

Clamp

(SUB FOR TH110057)(REQUIRES (2) TH11125 9 AND (2) 19M7550) (SERIAL NO. NOT AVAIL ABLE) (FOR UNITS BUILT BEFORE MARCH 1988 )

2шт.

3043349

Clamp

(SUB FOR TH111883)(SERIAL NO. NOT AVAILABL E) (FOR UNITS BUILT IN MARCH 1988 OR AFTER)

2шт.

39

8038475

Clamp

(SUB FOR TH110056)(SERIAL NO. NOT AVAILA BLE) (FOR UNITS BUILT BEFORE MARCH 1988)

1шт.

8074320

Clamp

(SUB FOR TH111988)(SERIAL NO. NOT AVAILABL E) (FOR UNITS BUILT IN MARCH 1988 OR AFTER)

1шт.

40

8043039

Clamp

(SUB FOR TH111479 ) (SUB FOR TH111989)

1шт.

41

4193962

Washer

(SUB FOR TH111259)(NOT ILLUSTRATED) (USE WITH TH110057 CLAMP) (SERIAL NO. NOT AVAIL ABLE) (FOR UNITS BUILT BEFORE MARCH 1988)

4шт.

42

19M7550

Cap Screw

M10 X 35 (NOT ILLUSTRATED) (USE WITH T H110057 CLAMPS) (SERIAL NO. NOT AVAILAB LE) (FOR UNITS BUILT BEFORE MARCH 1988)

4шт.

19M7662

Cap Screw

M10 X 30 (SERIAL NO. NOT AVAILABLE) (F OR UNITS BUILT IN MARCH 1988 OR AFTER)

2шт.

12M7066

Lock Washer

10 mm (SERIAL NO. NOT AVAILABLE) (FO R UNITS BUILT IN MARCH 1988 OR AFTER)

2шт.

43

19M7662

Cap Screw

M10 X 30

4шт.

44

12M7066

Lock Washer

10 mm

6шт.

45

4174241

Clamp

(SUB FOR TH110059)

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.
